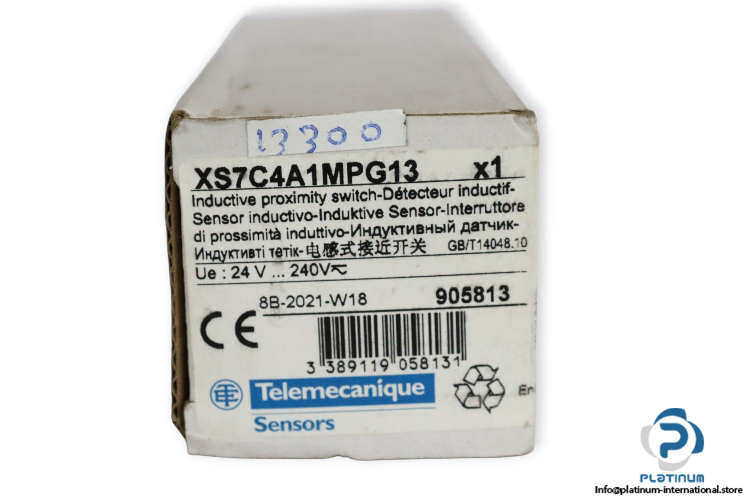

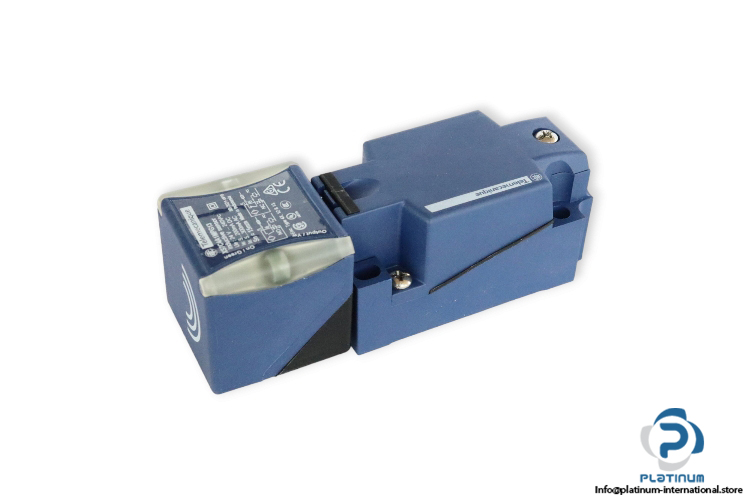

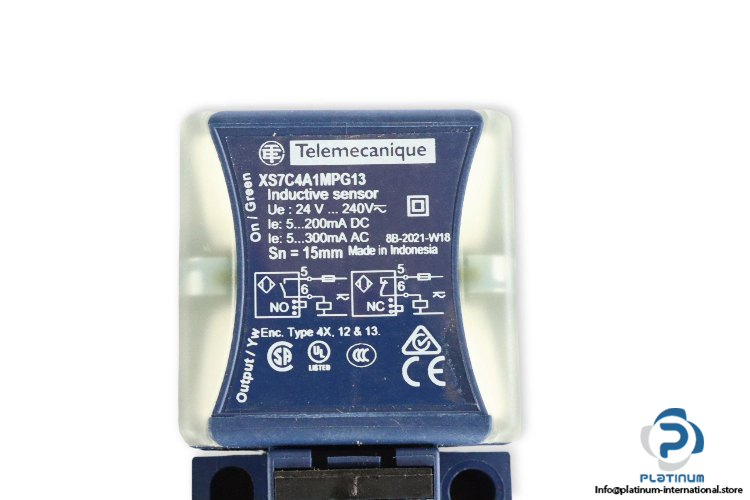

Telemecanique XS7C4A1MPG13 Inductive Proximity Sensor

Manufacturer: Telemecanique
Type: Inductive Proximity switch Sensor
Model: XS7C4A1MPG13
Series name: General purpose

Sensing range: 15 mm
Operating Voltage: 24 … 240 V AC/DC
Operating Current: 5 … 200 Ma(DC), 5 … 300 Ma (AC)
Maximum Voltage Drop: <5.5 V (closed)
Switching Frequency: <= 25 Hz AC, <= 50 Hz DC
Switching Output: Normally Open / Normally Closed
Enclosure material: PBT
Type of output signal: Discrete
Wiring technique: 2-wire
Enclosure Rating: IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050
Detection face: 5 positions turret head
Ambient Operating Temperature: -25 … 70°C
Body Type: Fixed
Housing Material: Plastic
Mounting: Flush-Mountable
Dimensions: 40 x 40 x 117 mm
