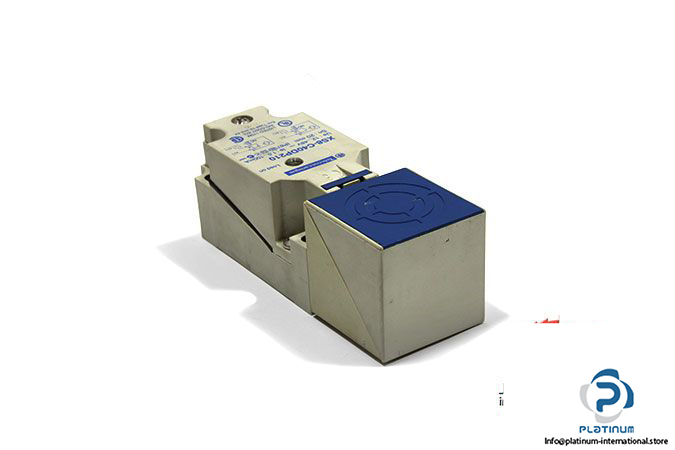

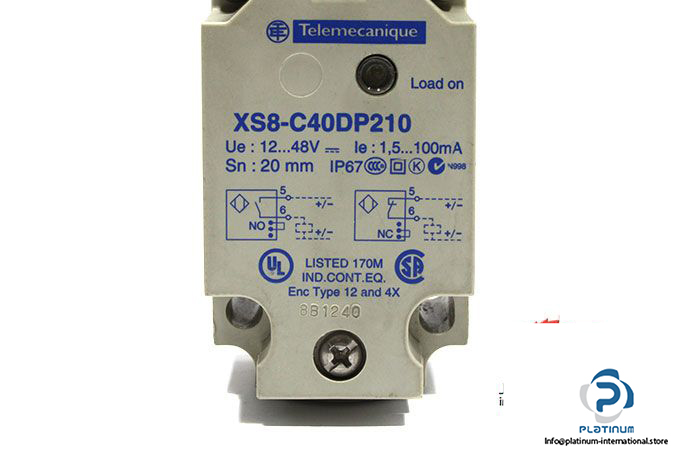

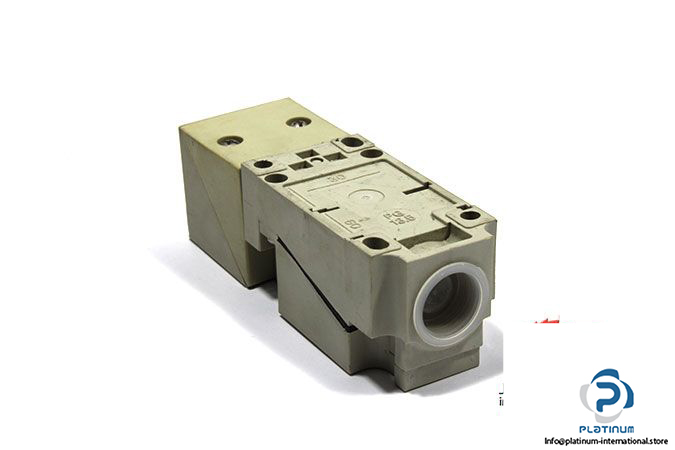

Telemecanique XS8-C40DP210 Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Series Name: General Purpose

Model: XS8C40DP210



Sensing range: 20 mm

Operating Voltage: 12 … 48 V DC

Operating Current: 1.5 … 100 mA

Maximum Voltage Drop: < 4 V
Switching Frequency: <= 800 Hz
Switching Output: Normally Open / Normally Closed (Programmable)

Connection: Screw-Clamp Terminals

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70°C

Dimensions: 40 x 40 x 117 mm

Body Type: Fixed

Housing Material: Plastic

Enclosure Material: Plastic

Mounting: Non Flush-Mountable

Weight: 0.22 kg
