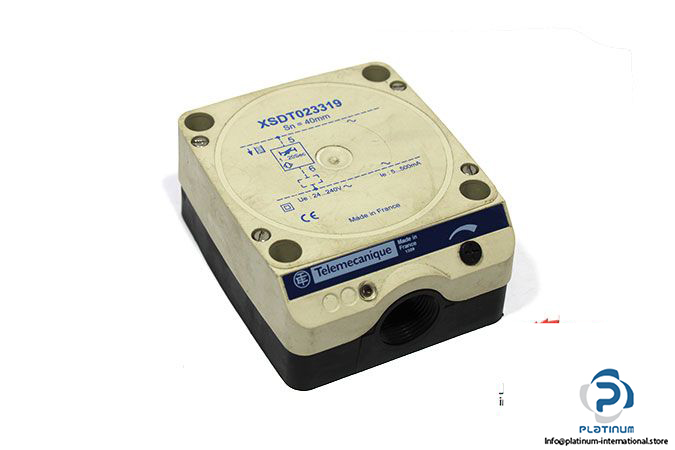

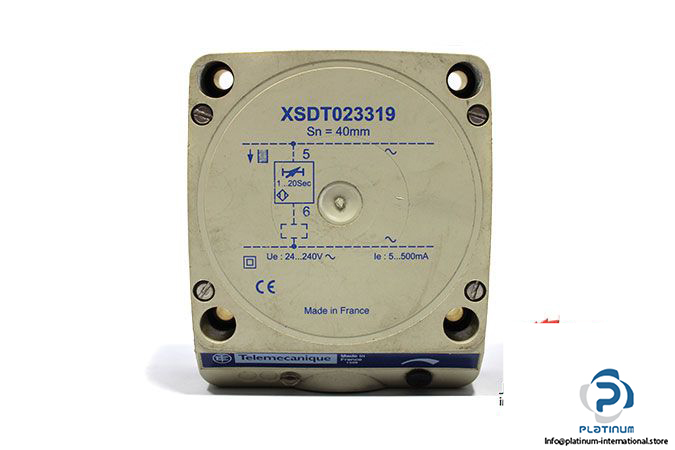

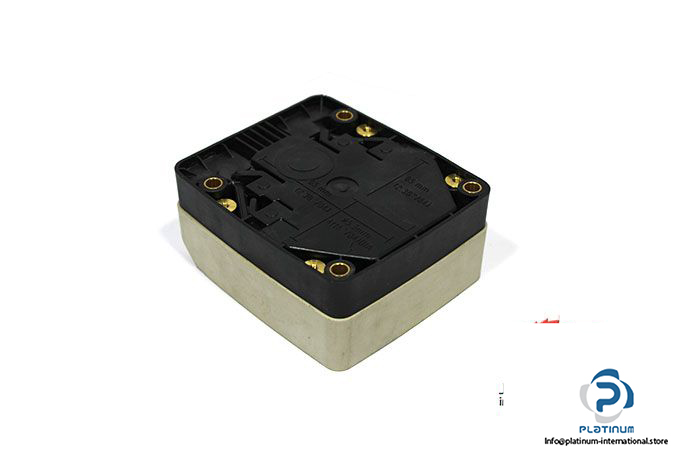

Telemecanique XSDT023319 Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Series Name: General Purpose

Model: XSDT023319

Sensing Range: 40 mm

Operating Voltage: 24 … 240 V AC

Operating Current: 5 … 500 mA

Switching Frequency: <= 10 Hz
Switching Output: Normally Open and Normally Closed Programmable

Connection: Screw-Clamp Terminals

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70 °C

Dimensions: 80 x 80 x 40 mm

Body Type: Fixed

Housing Material: Plastic

Enclosure Material: Plastic

Mounting: Non Flush-Mountable

Weight: 0.46 kg
