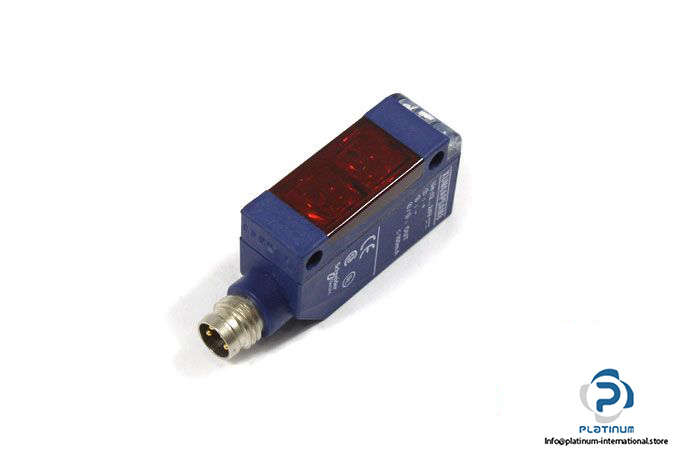

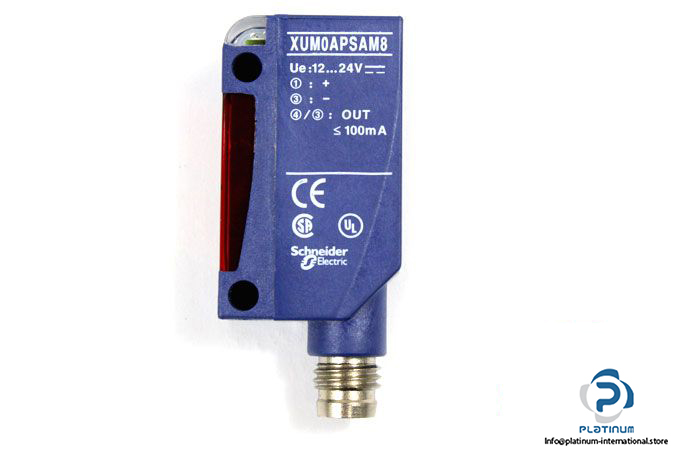

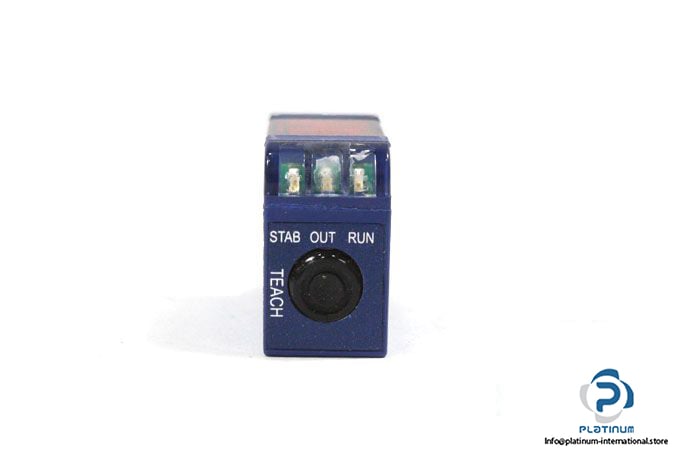

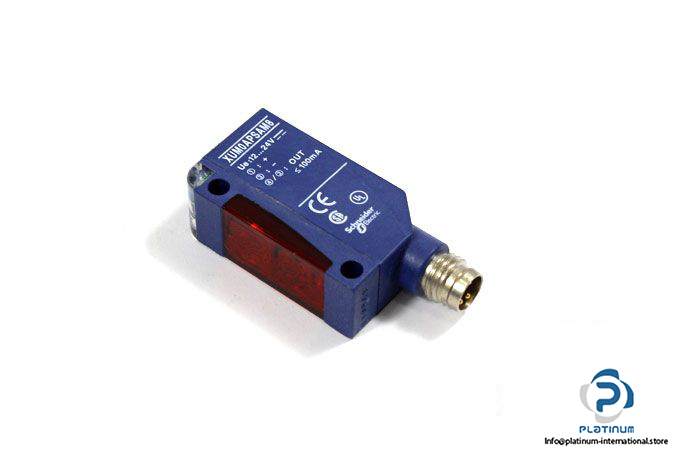

Telemecanique XUM0APSAM8 Multimode Photoelectric Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Range: Osiris

Series: GENERAL PURPOSE MULTIMODE

Type:  MULTIMODE PHOTOELECTRIC SENSOR

Model : XUM0APSAM8

Sensing range max.:

14 m through beam need a Transmitter XUM0AKSAM8T

4 m polarised reflex need reflector XUZC50

0.1 m diffuse with background suppression

0.55 m diffuse

Operating Voltage: 12 … 24 V DC

Switching Capacity: 100 mA

Switching Frequency: 250 Hz

Electrical Design: PNP

Switching Output: Normally open/ Normally closed

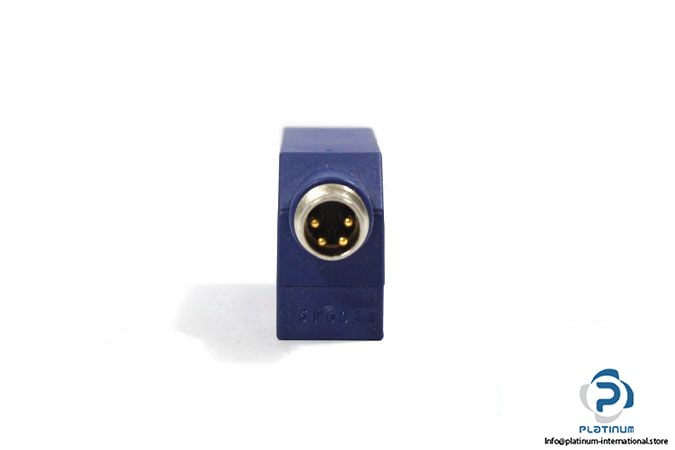

Connector Type: M8 Connector, 4-pin

Enclosure Rating: IP65, IP67

Ambient Operating Temperature: -25 … 55°C

Dimensions: 20 x 12 x 45 mm

Weight: 35 g

Housing Material: PBT

Lens Material: PMMA
