Tempatron 349-888 Timer Relay
Gebraucht
Auf Lager1 EinheitVersandbereit
Tempatron Timer Relay 2BDE200SLP240VAC mit 204-264 V AC Versorgungsspannung, Zeitbereich 5 bis 200s und steckbarem Gehäuse. Entwickelt für industrielle Anwendungen mit Verzögerungsfunktion bei Energien.
2240240V5-200s8ACAuxiliaryDelayenclosureEnergiesIndustrialIP40OnpinPlug-InPolePowerRangeRelayTempatronTimeTimerV
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

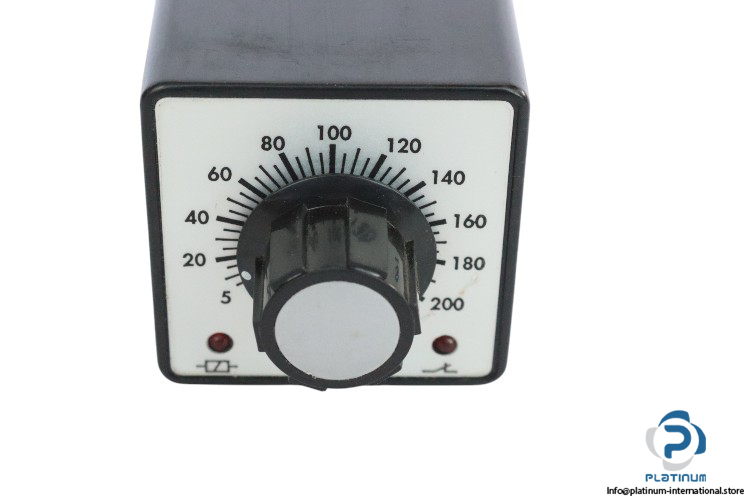

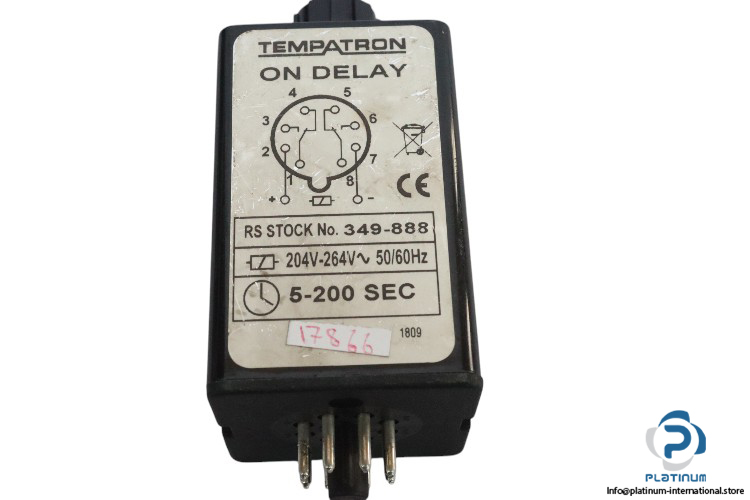

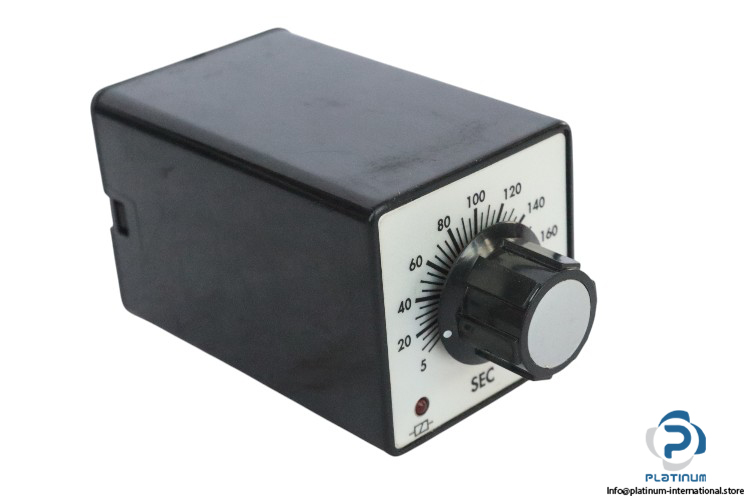

Tempatron Timer Relay 2BDE200SLP240VAC
Tempatron Timer Relay 2BDE200SLP240VAC is designed for industrial applications where precise timing control is required. It offers reliable performance and versatile features for timing functions with a wide voltage range and temperature resistance.
- Manufacturer: Tempatron
- Type: Timer Relay
- Product No.: 2BDE200SLP240VAC
- Part No.: 349888
- Series: 2B
Technical Data:
- Supply Voltage: 204 to 264 V AC
- Auxiliary Power Voltage: 240 V AC
- Frequency: 50/60 Hz
- Relay Output: 2 pole changeover contacts
- Power: 4 VA
- Time Functions: Delay on Energies
- Time Range: 5 to 200s
- Potentiometer: Local Potentiometer
- Housing: Plug in
- Number of Poles: 2
- Number of Pins: 8
- Operating Temperature: -10 to 60°C
- Enclosure Code: Case IP40
- Dimensions: 92 x 48 x 48 mm
