Temposonics EP20300MAK06 Magnetostrictive Linear Position Sensor
TEMPOSONICS EP20300MAK06 magnetostriktiver Linearpotentiometer, 300 mm Hub, unendliche Auflösung, 0–10 V DC, 4–20 mA, IP67-klassifiziert, Aluminiumgehäuse.

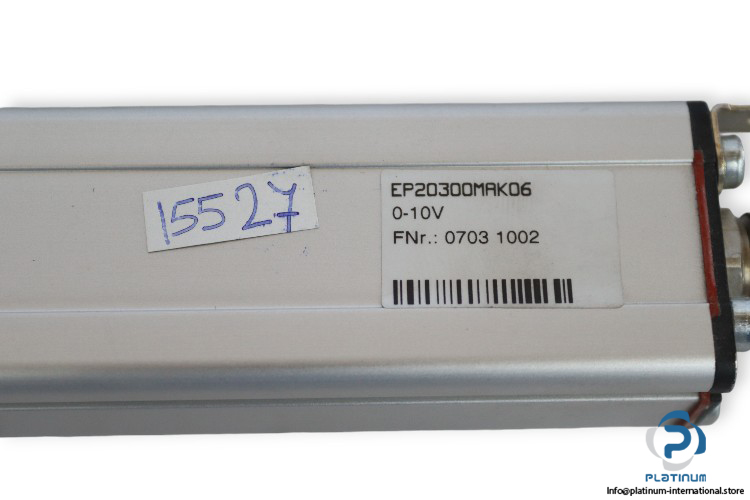

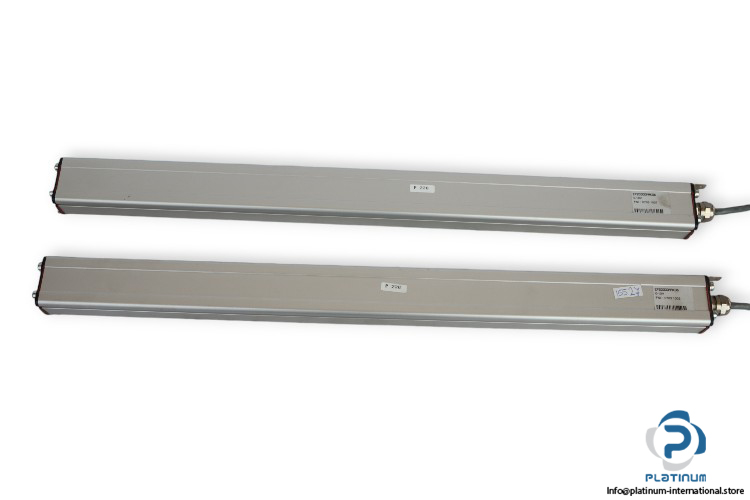

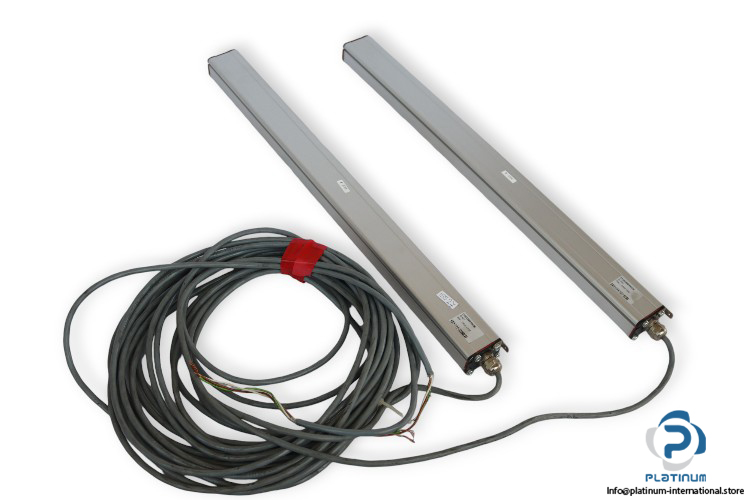

TEMPOSONICS EP20300MAK06 Magnetostrictive Linear Position Sensor
The TEMPOSONICS EP20300MAK06 is a high-performance magnetostrictive linear position sensor designed for precision measurement in industrial automation. With a **stroke length of 300 mm** and **infinite resolution**, this sensor ensures accurate and reliable position feedback. It features dual analog output ratings of **0 to 10 V DC** and **4 to 20 mA**, making it compatible with various control systems.
🔧 Technical Specifications:
- Manufacturer: TEMPOSONICS
- Type: Magnetostrictive Linear Position Sensor
- Model: EP20300MAK06
- Part No.: 0703 1002
- Resolution: 0.02 μm (infinite)
- Stroke Length: 300 mm
- Rated Supply Voltage: 24 V DC
- Rated Current Consumption: 50 to 140 mA
- Analog Output Ratings: 0 to 10 V DC, 4 to 20 mA

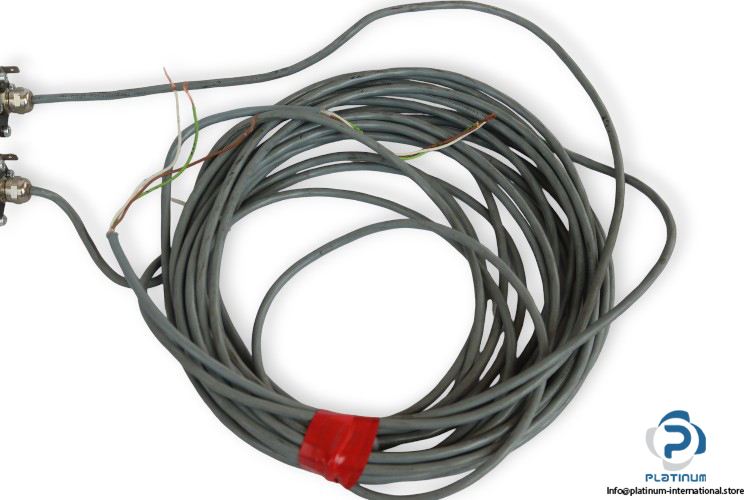

- Connection: Cable Connector, M12, 5-Pin
- Material: Aluminum
- Protection Class: IP67
- Temperature Range: -40 to 75 °C
- Dimensions: 446 x 35.6 x 27 mm
Built with a rugged **IP67-rated aluminum housing**, the **EP20300MAK06** is designed to withstand harsh industrial environments. It offers high precision, durability, and ease of integration with its **M12, 5-pin cable connector**. Ideal for applications requiring reliable and consistent position sensing.
