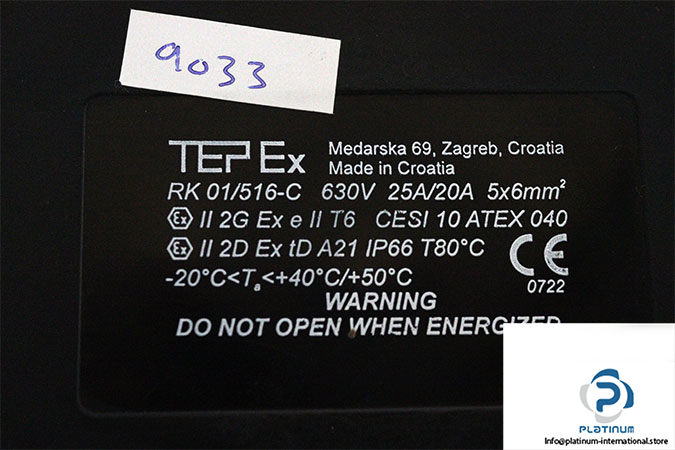

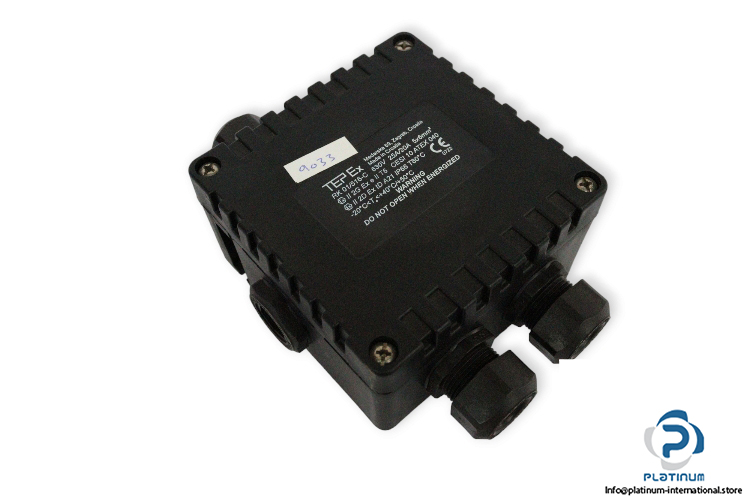

Tepex RK 01/516-C Junction BOX

Manufacturer: Tepex
Type: Explosion Protected Junction Box
Model: RK 01/516-C

Rated voltage: 630 V
Ambient temperature: -20 … +40/+50°C
Current: 25/20 A
Degree of protection: IP66
Cable Glands and Plugs / Cable Entries: 4 x M25 cable glands for cables Øv 6-15 mm 2 x M25 plug
Number of Terminals And Terminal Cross Section: 5 – 1 x 6mm²
Max. Possible Connection By Terminal Solid, Stranded, Flexible: 1×1,5… 6 mm²
Dimensions: 185 x 180 x 64 mm
