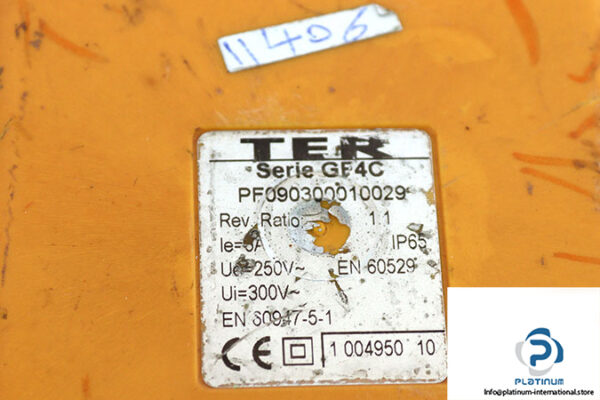

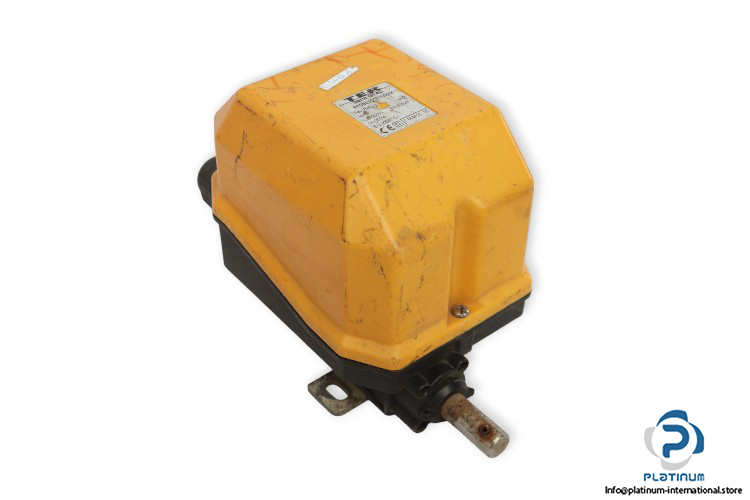

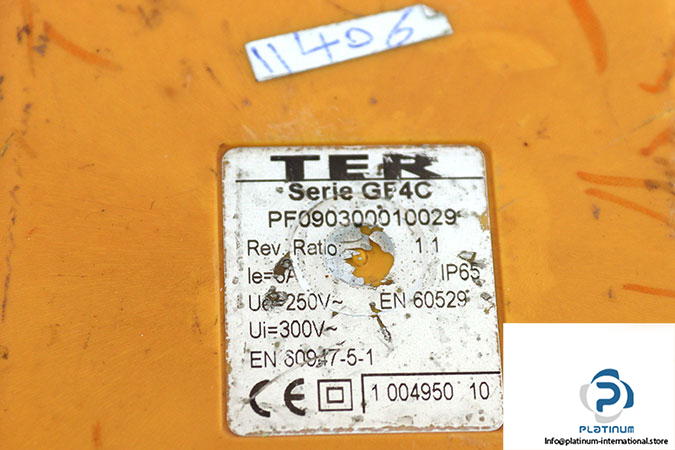

TER PF090300010029 Rotary Limit Switch
Manufacture: Ter
Type: Rotary limit switch
Model: PF090300010029
Series: GF4C
Rated operation voltage Ue: 250 V AC
Rated operation current Ie: 3 A
Thermal rated current: 10 A
Rated insulation voltage Ui: 300 V AC

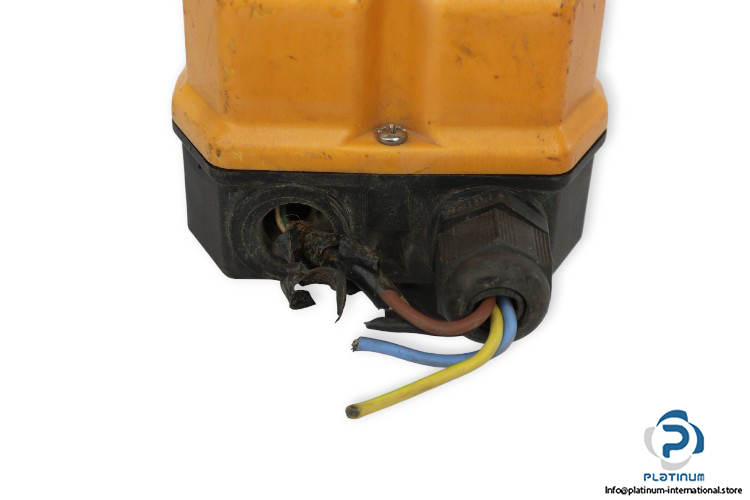

Cable entry: M20 cable gland
Shafts: AISI 303 stainless steel
Mechanical life: 10×106 operations max
Connections: terminal with screw
Standards: EN 60529 /EN 60947-5-1
Ambient temperature Operation: -40 … +70°C
Degree of protection: IP 65
Revolution ratio: 1:1
