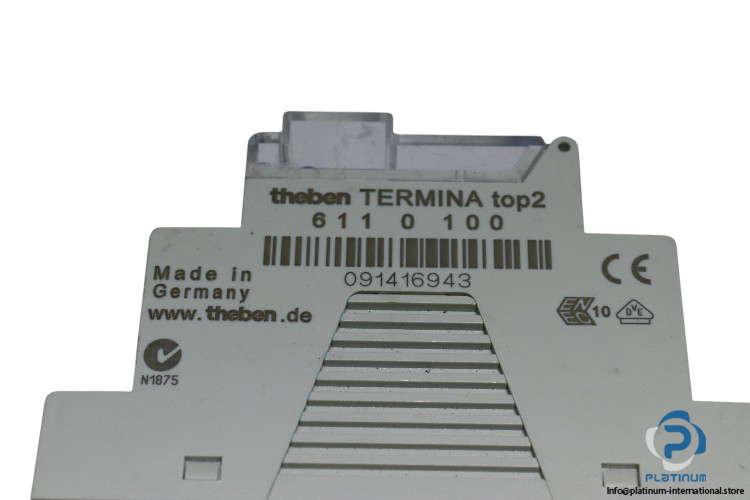

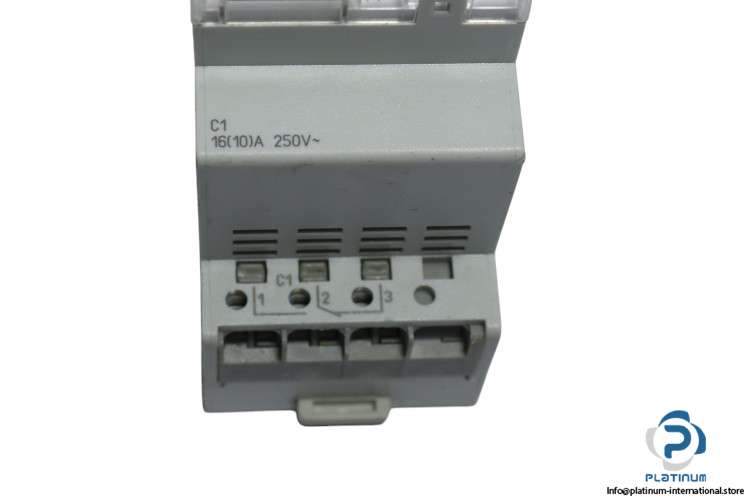

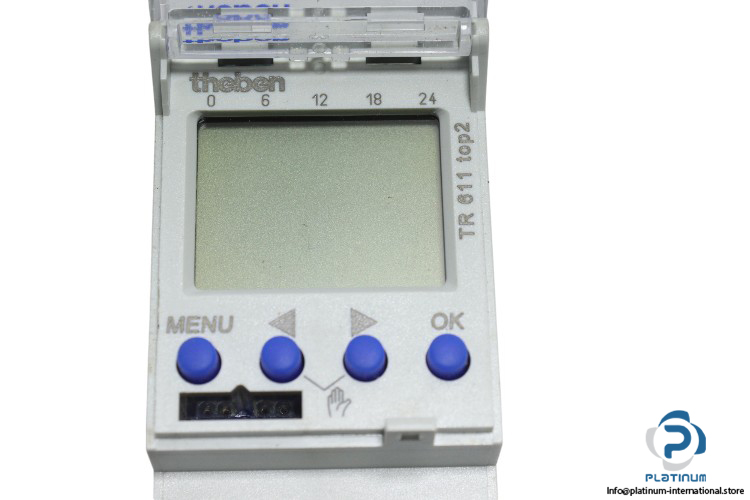

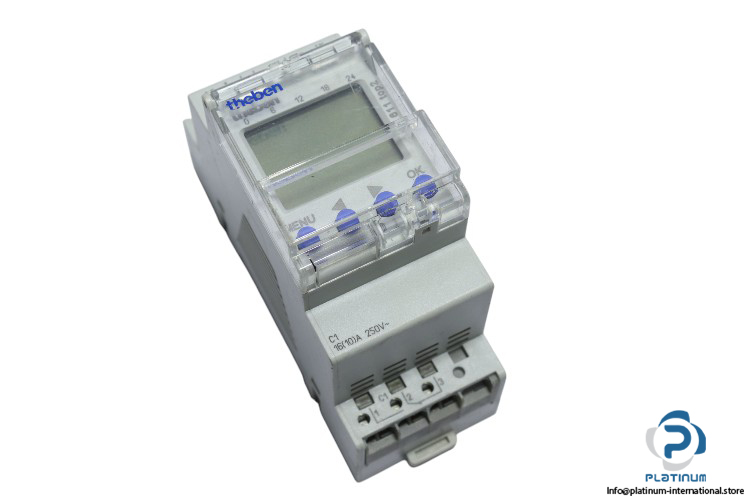

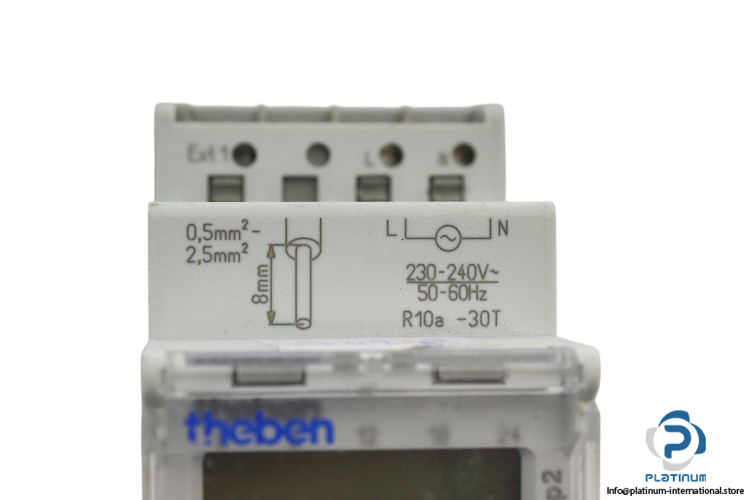

Theben TR 611 TOP2 Digital Time Switch
Theben Digital-Zeitschalter TR 611 TOP2 Der Theben TR 611 TOP2 Digital-Zeitschalter verfügt über ON-OFF-, Puls- und Zyklusmodi mit Wechselkontakt. Er arbeitet bei 230-240 V AC und ist für den Einsatz bei Temperaturen von -30°C bis 55°C ausgelegt, mit Schutzart IP 20.
Theben Digital Time Switch TR 611 TOP2
The Theben TR 611 TOP2 digital time switch offers versatile control with various program functions such as ON-OFF, Pulse, and Cycle modes. It features a changeover contact with a potential-free and phase-independent switching output. With an operating voltage range of 230-240 V AC and a frequency of 50-60 Hz, this time switch is designed to operate in ambient temperatures from -30°C to 55°C. It has a protection degree of IP 20 and is perfect for various industrial applications.
| Part No. | 6110100 |
| Operating Voltage | 230 – 240 V AC |
| Frequency | 50 – 60 Hz |
| Type of Contact | Changeover Contact |
| Switching Output | Potential-free and phase-independent |
| Program Functions | ON-OFF, Pulse, Cycle |
| Number of Channels | 1 |
| Degree of Protection | IP 20 |
| Ambient Temperature | -30°C to 55°C |
