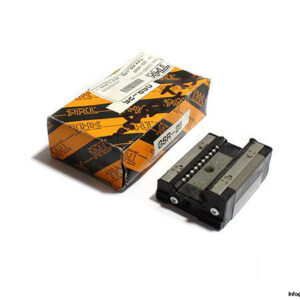

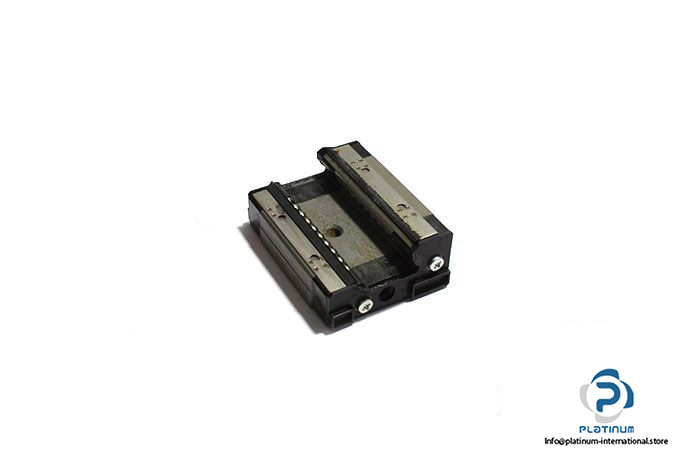

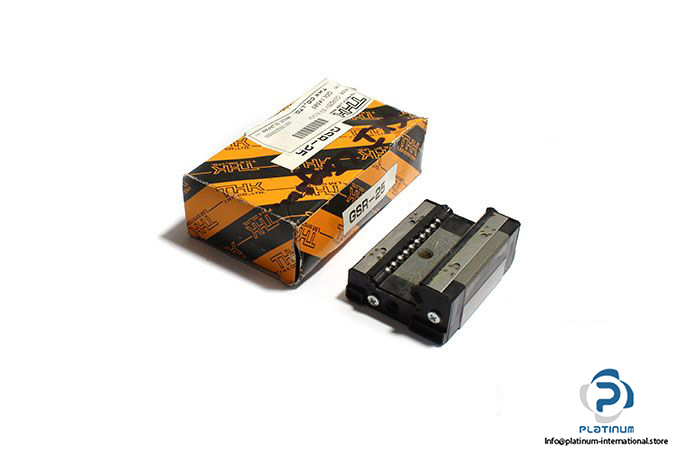

THK GSR25V SS Linear Guideway Block

Manufacturer: THK

Type: LM Guide Separate Type GSR

Model: GSR-25 VSS

Size: 25 mm

Block Type: Short length, Square Type

Basic Load Ratings:

Dynamic C: 10.29 kN

Static C₀: 12.65 kN

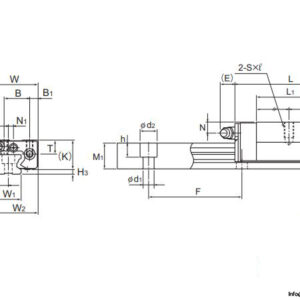

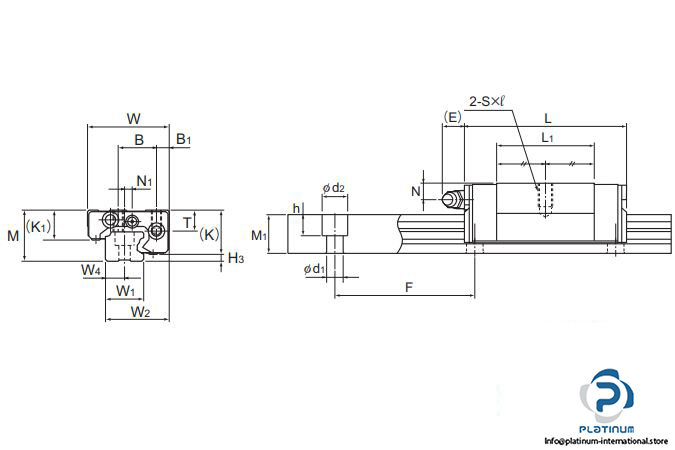

Dimensions

Total Height M: 30 mm

Block Width W: 50 mm

Block Length L: 69 mm

Mounting Hole: 2 through holes

Weight: 0.32 kg
