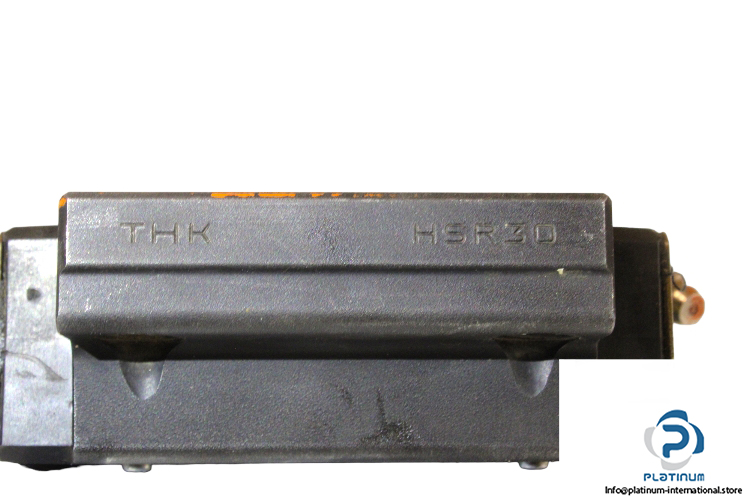

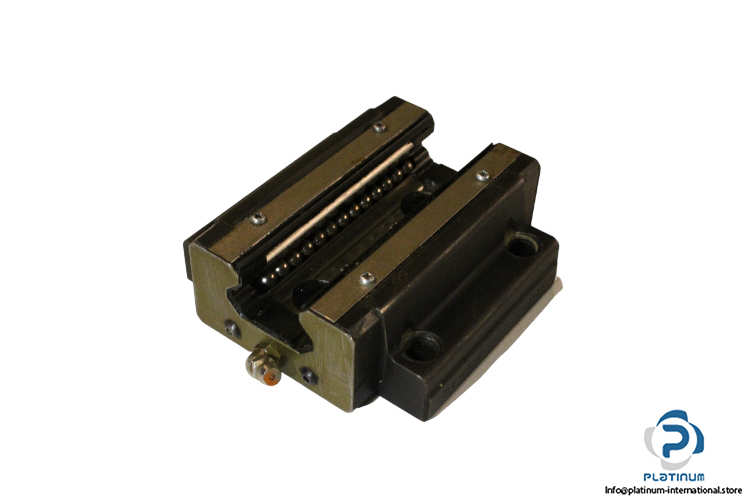

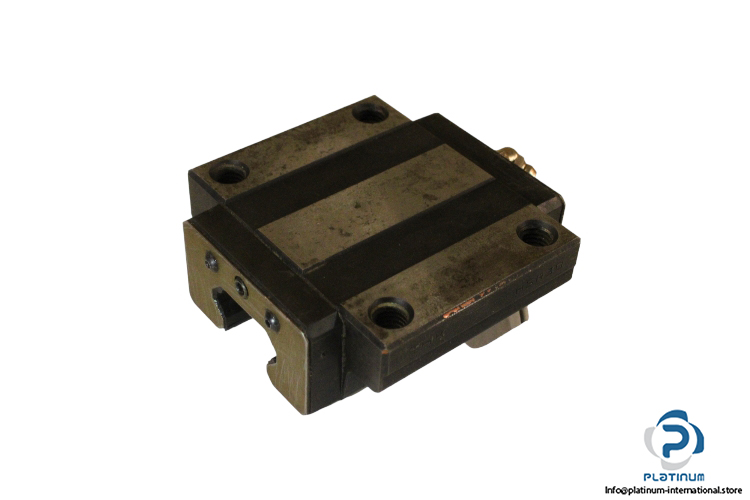

THK HSR30A Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block HSR

Model: HSR 30A



Size: 30

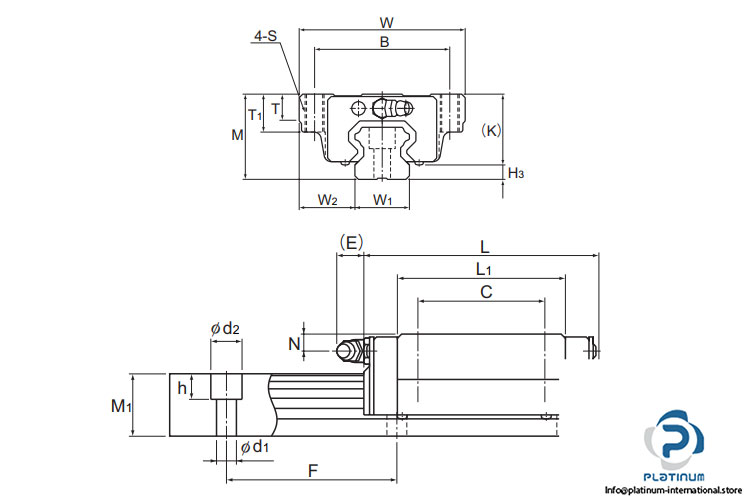

Dimensions

Total Height M: 42 mm

Block Height K: 35 mm

Block Width W: 90 mm

Block Length L: 98 mm

L₁: 70.4 mm

B: 72 mm

C: 52 mm

Block Type: Flange Type

Mounting Hole: 4 tapped holes

Basic Load Ratings:

Dynamic C: 28 kN

Static C₀: 46.8 kN
