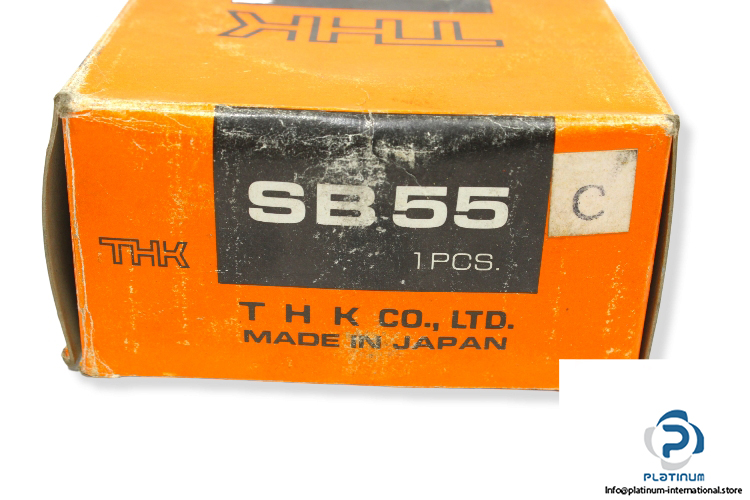

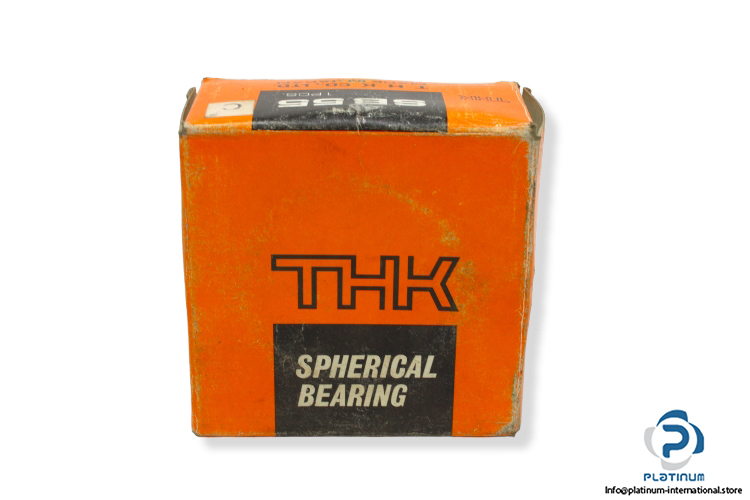

THK SB 55 Spherical Plain Bearing
Neu
Auf Lager41 EinheitenVersandbereit
Radial Kugel-Gleitlager Das THK SB55 C Lager bietet zuverlässige Leistung mit 55 mm Bohrung und 90 mm Außendurchmesser. Entwickelt für schwere radiale Lasten und Ausrichtungsfehlerkompensation in Industrie- und mobilen Maschinen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
THK SB55 C Radial Spherical Plain Bearing
The THK SB55 C Radial Spherical Plain Bearing is engineered for high load capacity and smooth articulation under heavy-duty operating conditions. Designed to accommodate radial loads and angular misalignment, it offers excellent durability, stability, and resistance to wear, making it ideal for hydraulic cylinders, construction machinery, and industrial linkages.
Manufacturer: THK
Type: Radial Spherical Plain Bearing
Model: SB55 C
| Bore Diameter (d) | 55 mm |
| Outer Diameter (D) | 90 mm |
| Width, Inner Ring | 47 mm |
| Width, Outer Ring | 40 mm |
| Dynamic Load Rating | 75.3 kN |
| Static Load Rating | 1880 kN |
| Design Type | Radial Spherical Plain Bearing, Maintenance-Free |
| Application | Hydraulic Cylinders, Construction Equipment, Industrial Machinery |
| Features | High Strength, Misalignment Compensation, Long Service Life |
