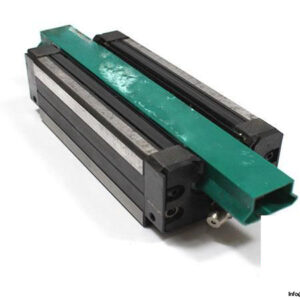

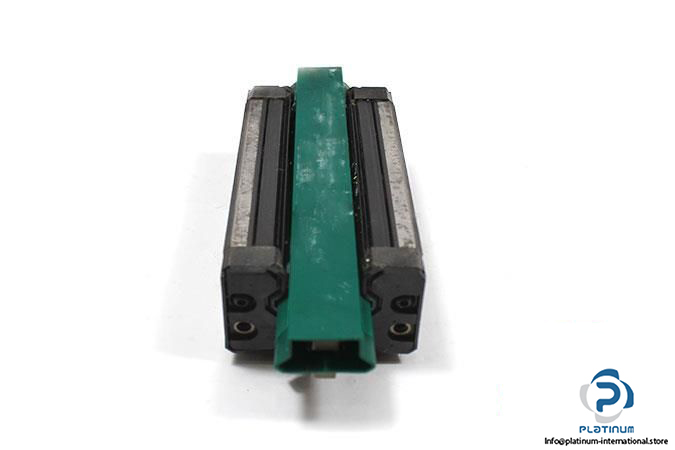

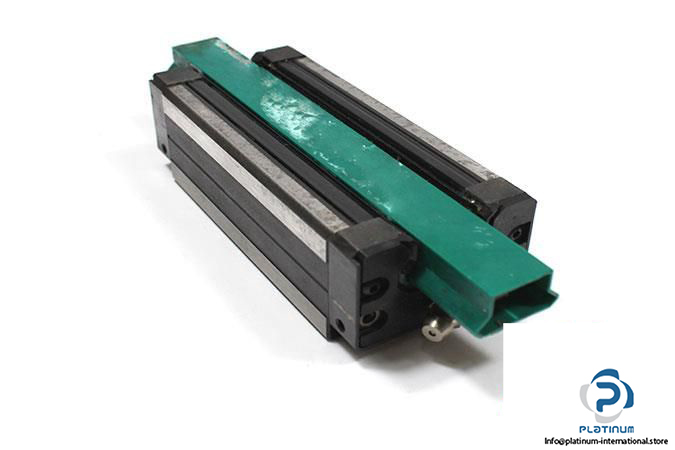

THK SHS25LR Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block SHS

Model: SHS 25LR



Size: 25

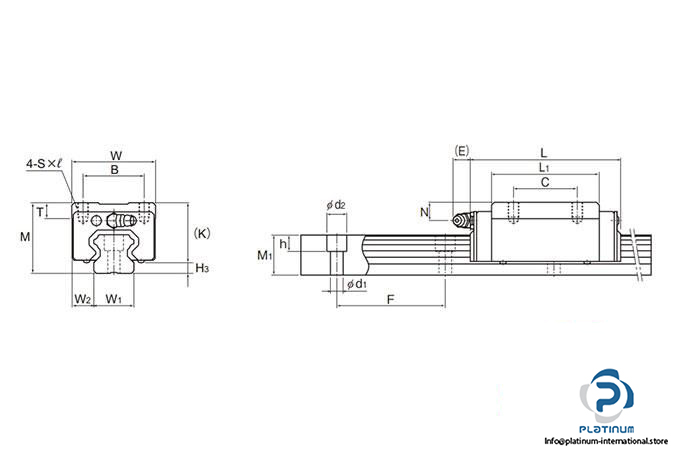

Dimensions

Total Height M: 40 mm

Block Height K: 34.2 mm

Block Width W: 48 mm

Block Length L: 109 mm

L₁: 88 mm

B: 35 mm

C: 50 mm

Block Type: Square Type

Mounting Hole: 4 tapped holes

Basic Load Ratings:

Dynamic C: 36.8 kN

Static C₀: 64.7 kN
