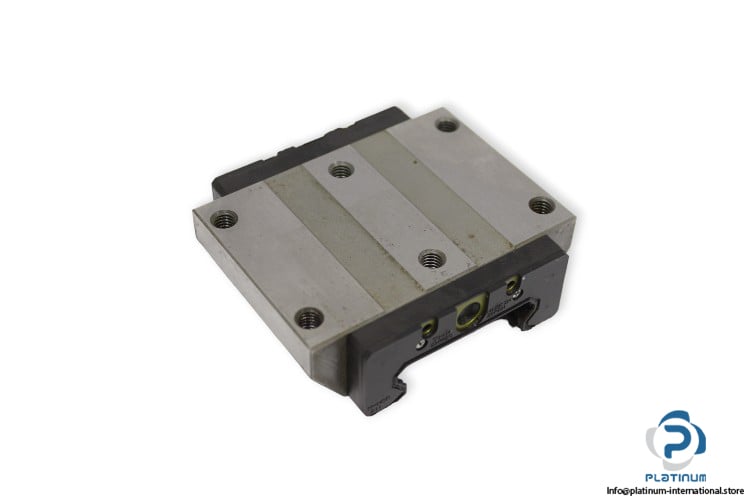

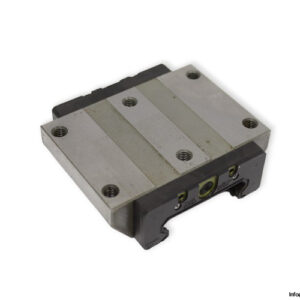

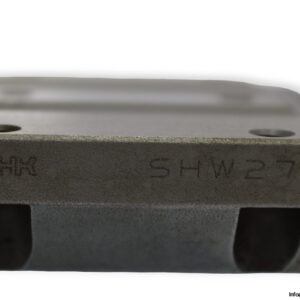

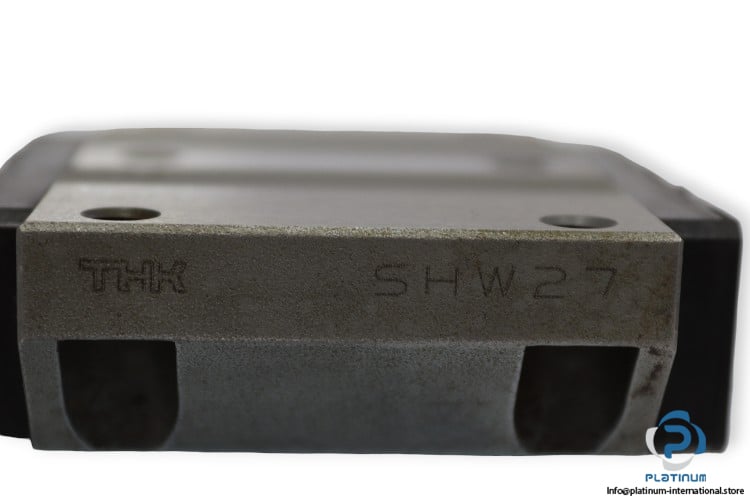

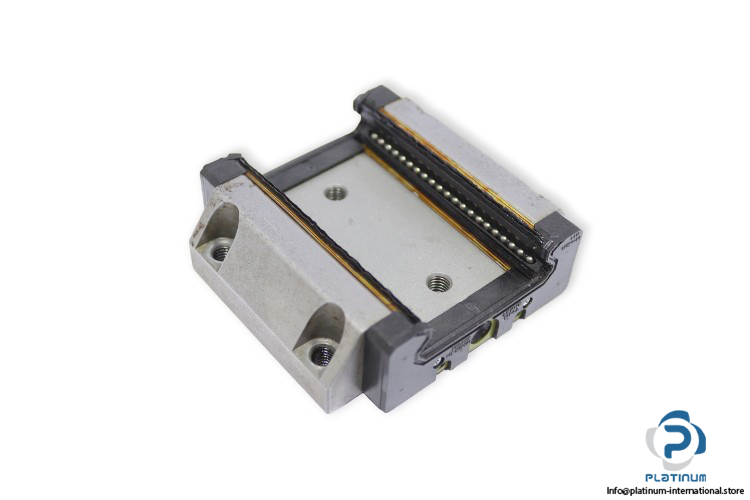

THK SHW27 Linear Bearing Block
Manufacturer: THK
Type: Linear bearing block
Model: SHW27

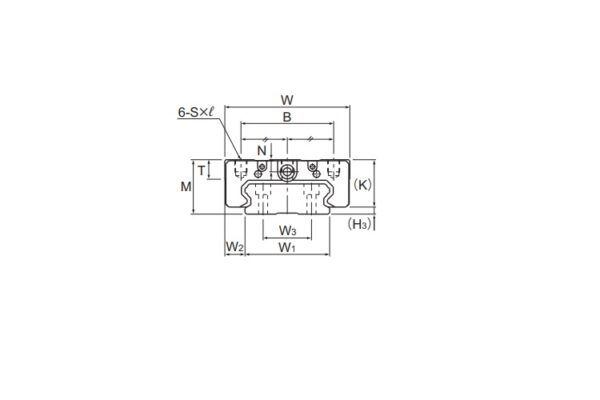

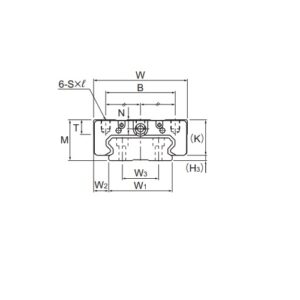

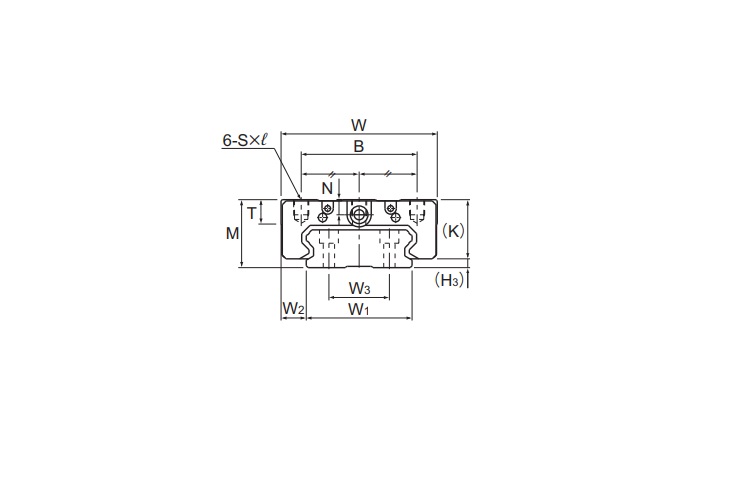

Outer dimensions:
Total Height M: 27 mm
Block Width W: 80 mm
Block Length L: 72.8 mm
LM block dimensions:
B: 70 mm
C: 40 mm
Height K: 23.5 mm
Basic Load Rating:
Dynamic C: 16 kN
Static C0: 22.7 kN
