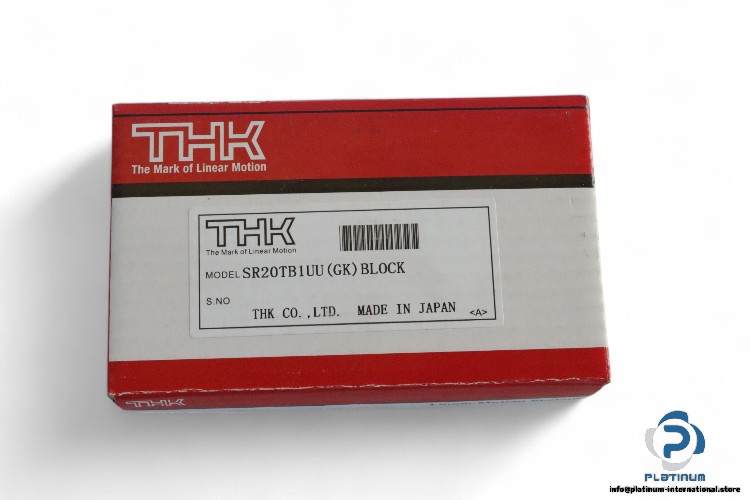

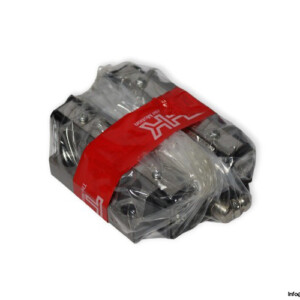

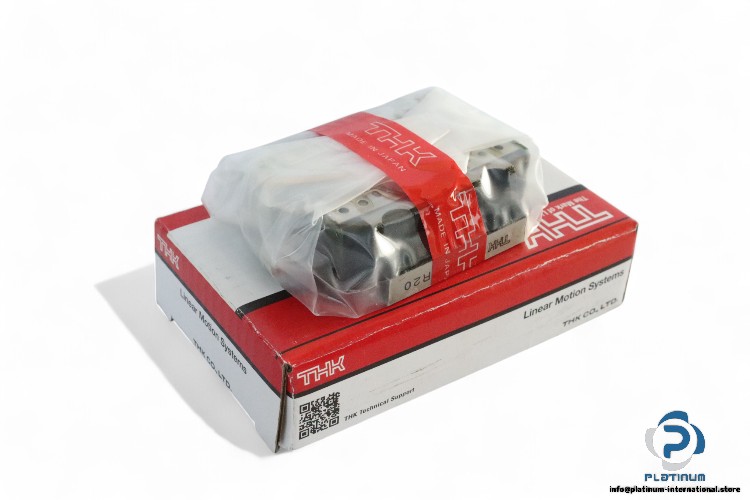

THK SR20TB1UU Linear Bearing Block
Manufacturer: THK
Type: LINEAR BEARING BLOCK
Model: SR20 TB1UU
Size: 20

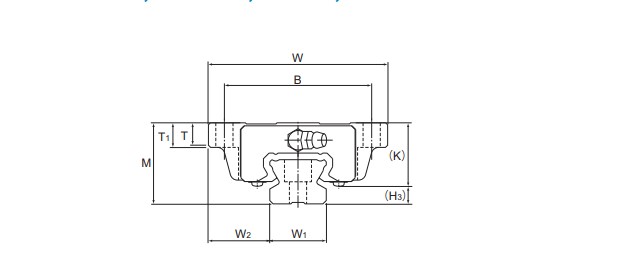

Outer dimensions:
Total Height M: 28 mm
Block Width W: 59 mm
Block Length L: 66.5 mm
Height K: 22 mm
LM block dimensions:
B: 49 mm
C: 32 mm
L1: 46.7 mm
Block Type: Flange Type
Mounting Hole: 4 through holes
Basic Load Rating:
Dynamic C: 12.5 kN
Static C0: 25.2 kN
Protection accessory: UU; With end
