Thyssen SH NI 2 K 100 AWS A5.5 E 11010-M ROD Electrode
NiCrMo Legierungsstab Elektroden Grundbeschichtete NiCrMo Legierungselektrode für hochfeste Schweißverbindungen von nickellegierten und niedrig legierten Stählen. Ideal für Reparaturschweißen, Pufferschichten und Anwendungen mit Hochtemperaturstahl.

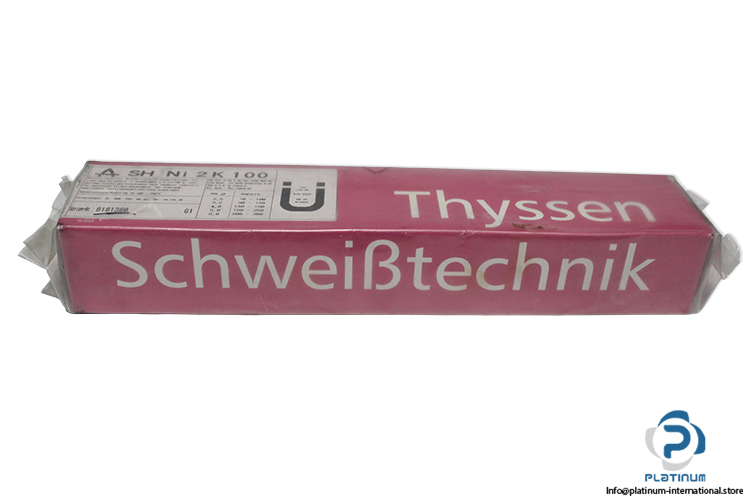

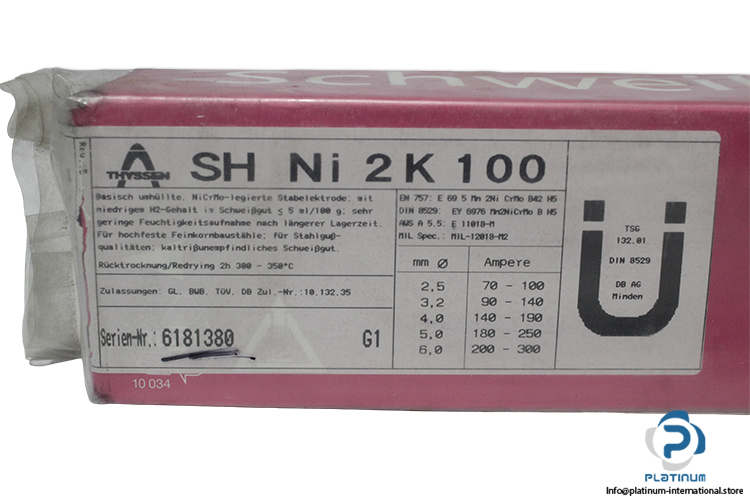

Thyssen Schweißtechnik SHNI2K100AWSA5.5E11010-M Electrode
The Thyssen Schweißtechnik SHNI2K100AWSA5.5E11010-M is a basic coated NiCrMo alloy rod electrode designed for high-strength welding applications, offering reliable mechanical properties and performance in demanding industrial environments.
Manufacturer: Thyssen Schweißtechnik
Type: Basic Coated NiCrMo Alloy Rod Electrode
Model: SHNI2K100AWSA5.5E11010-M
Code: 10 034
Serial No.: 6181380
Class: G1
Application:
Suitable for nickel alloyed steels
Suitable for low alloy steels with approx. ‰¤ 5% alloy content
Suitable for joining welds, repair welding, and buffer layers
Recommended for high-temperature fine-grain steels
Suitable for difficult-to-weld steels
Electrode Diameter (mm) / Current (A):
2.5 mm / 70 “ 100 A
3.2 mm / 90 “ 140 A
4.0 mm / 140 “ 190 A
5.0 mm / 180 “ 250 A
6.0 mm / 200 “ 300 A
Standards & Classifications:
| Re-drying Temperature | 300 to 350 °C |
| EN 757 | E 69 5 Mn2NiCrMo B42 H5 |
| DIN 8529 | E 6976 Mn2NiCrMo B M5 |
| AWS A 5.5 | E 11018-M |
| MIL Specification | MIL-12818-M2 |
| TSG | 132.01 |
| DIN | 8529 |
