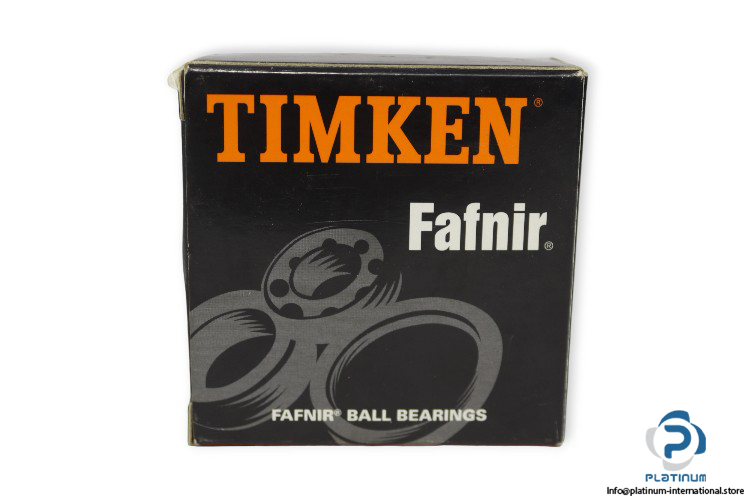

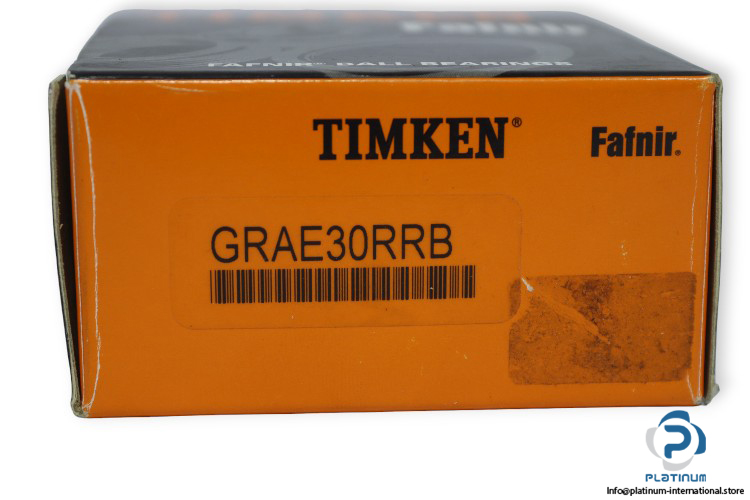

Timken GRAE30RRB Eccentric Locking Collar Ball Bearing

Manufacturer: Timken
Type: Eccentric Locking Collar Ball Bearings
Model: GRAE 30 RRB

Shaft Size d: 30 mm
Outside Diameter: 2.441 in, 62 mm
Inner Ring Width B: 0.938 in, 23.83 mm
Outside Ring Width: 0.709 in, 18 mm
Radius r: 0.024 in, 0.6 mm
Center of Bearing from End S: 0.354 in, 8.99 mm
Number of Set Screws: 2
Angle between Set Screws: 90 ⁰
Dimension d1:   1.736 in, 44.1 mm
Dimension B1: 1.406 in, 35.7 mm
Dimension B2: 0.626 in, 15.9 mm
Static Load Rating: 11300 N
Dynamic Load Rating: 21600 N
Material: Bearing Steel
Bore Type: Cylindrical bore
Seal Type: Molded Shroud
