Translink TRK UCFP208 Plastic Four-Bolt Square Flange Unit

Name: TRANSLINK TRK UCFP208 PLASTIC FOUR-BOLT SQUARE FLANGE UNIT
SKU: 1030215
Availability: LimitedAvailability

translink-TRK-UCFP208-plastic-four-bolt-square-flange-unit-(new)-(carton)

translink-TRK-UCFP208-plastic-four-bolt-square-flange-unit-(new)-(carton)-1

translink-TRK-UCFP212-plastic-four-bolt-square-flange-unit-(new)-(carton)-2

Neu

Auf Lager357 EinheitenVersandbereit

Typ: Kunststoff Vier-Schrauben Quadratisches Flanschgehäuse

Hersteller

TRANSLINK

SKU

1030215

Kategorie

Plummer Block Housing Units

Zustand

Neu

bearing Block Four-Bolt Plastic Square Translink UCFP208 Unit

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacture: Translink
Type: plastic Four-Bolt Square Flange Unit
Model: TRKUCFP208
Housing No.: FP208
Bearing No.: SSUC208

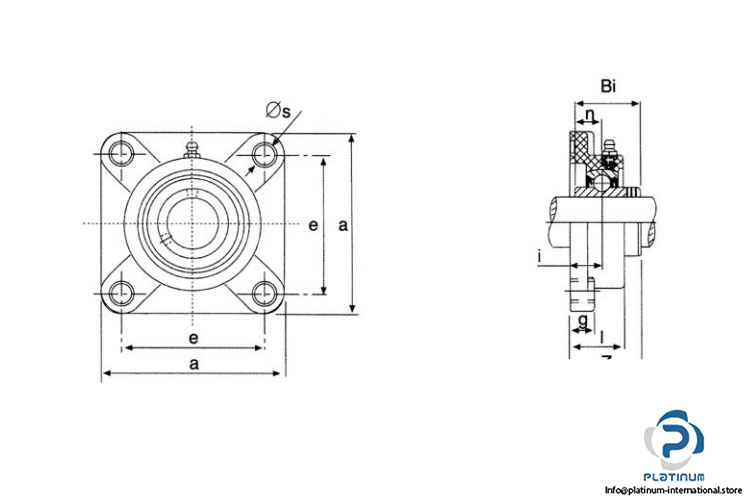

Dimensions
Bore Diameter d: 40 mm
Overall length a: 130 mm
i: 23 mm
Housing foot height / flange height g: 17 mm
Width of housing I: 37.5 mm
Distance Between Attachment Bolts e: 102 mm
Mounting hole diameter s: 14 mm
Overall width z: 53.2 mm
Mounting: Four-Bolt Flange
Housing Color: White
Material, housing: Plastic
Material, bearing: Stainless Steel
