Trevis C30-0901 Contactor

Name: TREVIS C30-0901 CONTACTOR
SKU: 1074693
Availability: LimitedAvailability

Neu

Auf Lager1 EinheitVersandbereit

CONTACTOR

TREVI’S C30-0901 industrial contactor with 3 NO main contacts, 110 V coil (50/60 HZ), and 690 V insulation rating. Compliant with iec 947 / vde 0660 / nfc 63110, featuring 1NC auxiliary contact and 4 KW at 380 VAC capability.

Hersteller

TREVI'S

SKU

1074693

Kategorie

Contactors & Accessories

Zustand

Neu

0660 1“10 1NC 20 3 380 4 50/60 63110 690 947 a AT Auxiliary C30-0901 coil Contact Contactor contacts.Current Hz IEC Industrial Insulation kW Main NFC NO Thermal Trevi's V VAC VDE

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

TREVI'S C30-0901 CONTACTOR

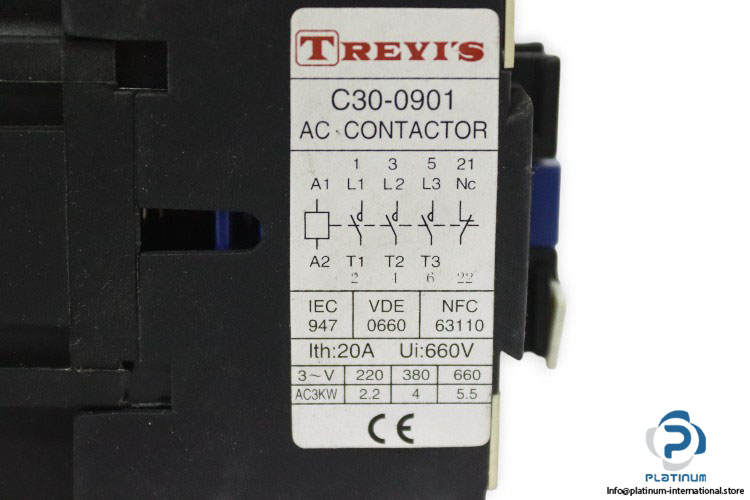

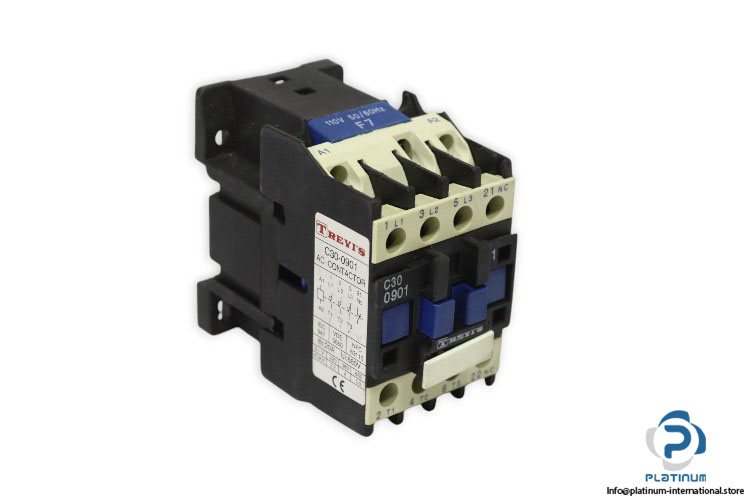

The TREVI'S C30-0901 is a compact industrial contactor built to reliable IEC/VDE/NFC standards, providing dependable switching performance for motors and control circuits.

Manufacturer: TREVI'S

Type: Contactor

Model: C30-0901

Number of Main Contacts NO	3
Standard	iec 947 / vde 0660 / nfc 63110
Coil Voltage	110 V
Coil Frequency	50/60 HZ
Rated Operational Current	9
Rated Frequency	50/60 hz
Rated Insulation Voltage	690 V
Conventional Free Air Thermal Current	20 A
Rated Operational Power at 380 VAC	4 KW
Auxiliary Contacts	1 Normally Closed (1NC)
