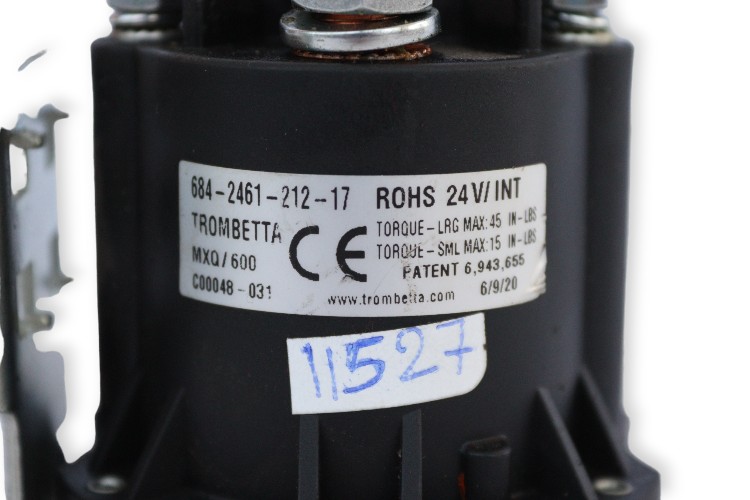

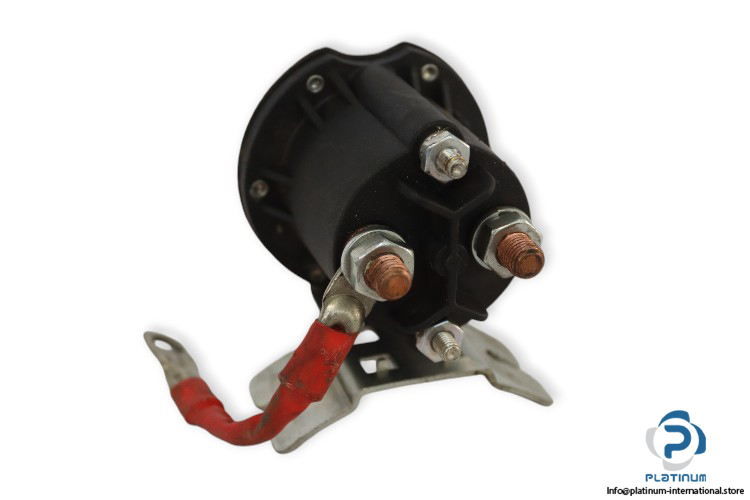

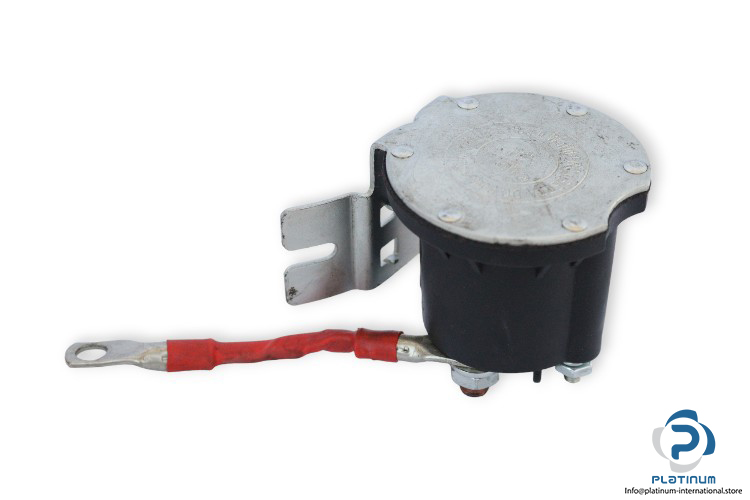

Trombetta 684-2461-212-17 Pump Contactor

Manufacturer: Trombetta
Type: Pump Contactor
Model: 684246121217

Torque large max.: 45 IN-LBS
Torque small max.: 15 IN-LBS
Voltage: 24 V
Contactor type: SPST NO (single pole single throw, normal open)
Duty circle: 25%
Coil resistance: 20.1 Ω
Resistive / Inductive Load: 150 A
Interrupt Capability: 250 A
Peak inductive inrush capability: 800 A
Electrical cycle life: 60,000 times
Contact material: Copper
Control coil terminal: M5
Operating temperature:-40 … +82°C
