TSC UCPA208 Tapped Base Pillow Block

Name: TSC UCPA208 TAPPED BASE PILLOW BLOCK
SKU: 1030876
Availability: LimitedAvailability

tsc-UCPA208-tapped-base-pillow-block-(new)-(carton)

tsc-UCPA208-tapped-base-pillow-block-(new)-(carton)-1

tsc-UCPA208-tapped-base-pillow-block-(new)-(carton)-2

tsc-UCPA208-tapped-base-pillow-block-(new)-(carton)-3

Neu

Auf Lager5 EinheitenVersandbereit

Gewindebasierte Kissenlager

Hersteller

TSC

SKU

1030876

Kategorie

Plummer Block Housing Units

Zustand

Neu

Ball bearing bearings Block flanged Housing Pillow Tapped TSC Unit Units

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacture: TSC
Type: Tapped Base Pillow Blocks
Model: UCPA 208
Bearing No.: UC208
Housing No.: PA208

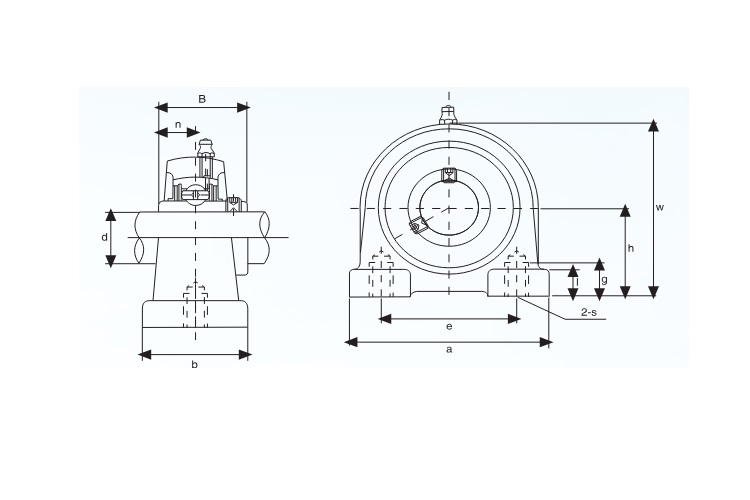

Dimensions
Shaft diameter d: 40 mm
Overall length a: 116 mm
Overall height w: 100 mm
Base width b: 58 mm
Foot height I: 13 mm
Height of spherical seat center h: 49.2 mm
Distance Between Attachment Bolts e: 84 mm
Diameter of attachment bolt hole S: 20 mm
Bolt Size: M14
Dynamic load rating: 27700 N
Static load rating: 17000 N
Housing type: Tapped Base Pillow Block
