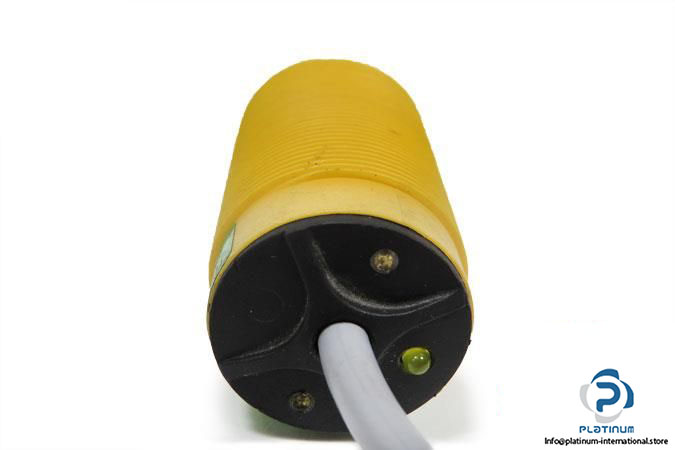

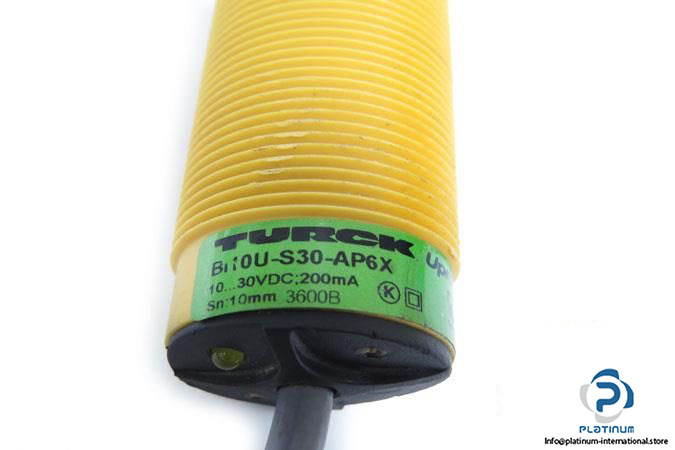

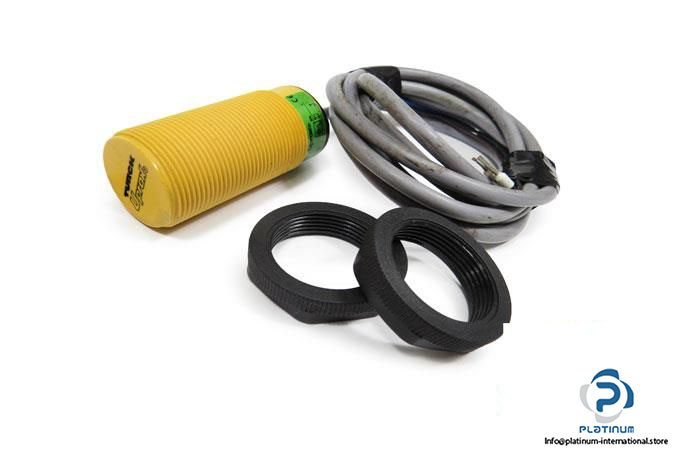

Turck BI10U-S30-AP6X Inductive Sensor

Manufacturer: TURCK

Type: INDUCTIVE SENSOR

Model:  BI10U-S30-AP6X

Sensing Range: 10 mm

Operating Distance: ≤ 8.1 mm

Operating Voltage: 10 … 30 V DC

Switching Output Current: 200 mA

Electrical Design: PNP

Ambient Operating Temperature: -30 … +85 °C

Output Function: Normally open

Switching Frequency: 2000 Hz

Protection Class: IP67

Protection Class: II

Housing: Threaded barrel

Diameter: M30

Material: Plastic, PA12-GF30

Mounting: flush mountable

Weight: 117 g
