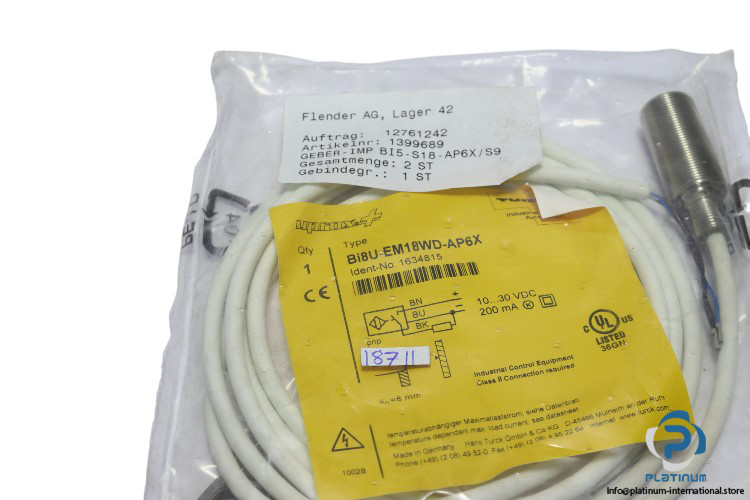

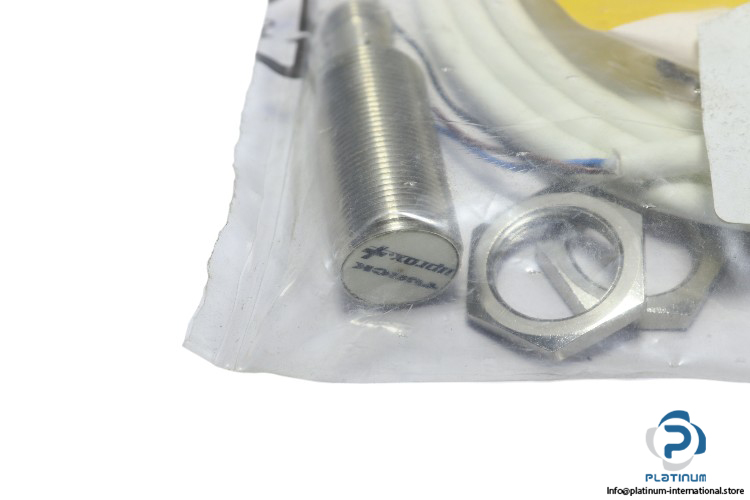

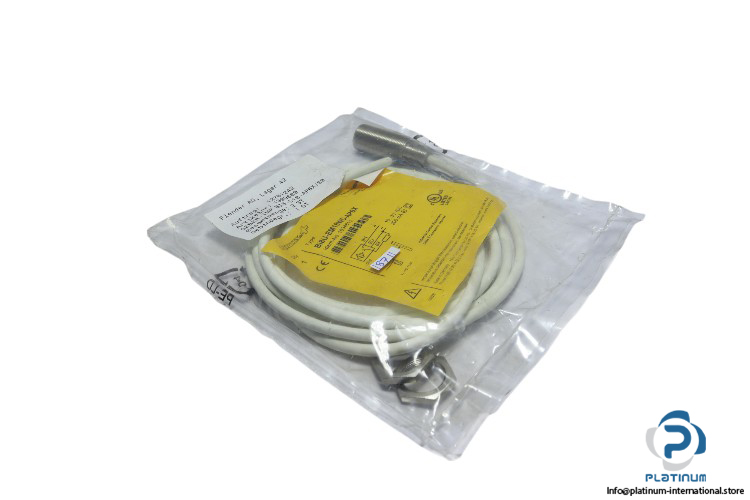

Turck BI8U-EM18WD-AP6X Inductive Sensor
Induktiver Sensor Der Turck BI8UEM18WDAP6X induktive Sensor bietet eine Erfassungsreichweite von 8 mm, PNP-Design, M12-Anschluss und IP68, IP69K Schutz, entwickelt für industrielle Anwendungen mit bündigem Einbau.
Turck BI8UEM18WDAP6X Inductive Sensor
The Turck BI8UEM18WDAP6X Inductive Sensor is a high-quality sensor designed for reliable detection in industrial environments. With a sensing range of 8 mm, this sensor is ideal for applications requiring precise and durable sensing with flush mounting conditions. Its stainless steel housing and IP68, IP69K protection make it suitable for harsh conditions, while the M12 connector ensures easy integration into existing systems.
Manufacturer: Turck
Type: Inductive Sensor
Model: BI8UEM18WDAP6X
ID No.: 1634815
Durable and reliable, the Turck BI8UEM18WDAP6X Inductive Sensor is built to perform in harsh environments, providing consistent and accurate sensing in a wide range of industrial applications.
| Sensing Range | 8 mm |
| Operating Voltage | 10 to 30 V DC |
| Operating Current Ie | 200 mA |
| Electrical Design | PNP |
| Switching Output | Normally closed |
| Mounting Conditions | Flush |
| Connector Type | M12 |
| Electrical Connection | Cable |
| Max. Tightening Torque | 25 N.m |
| Dimensions | M12, 52 mm |
| Housing Material | Stainless steel |
| Protection Class | IP68, IP69K |
| Operating Temperature | -40 to 100°C |
