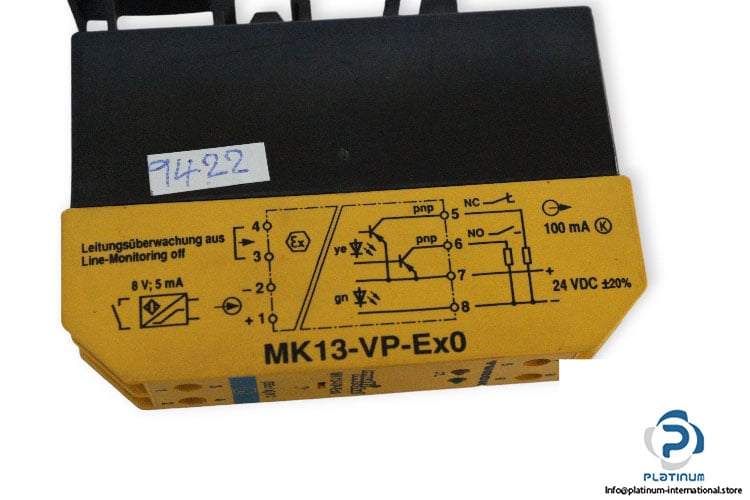

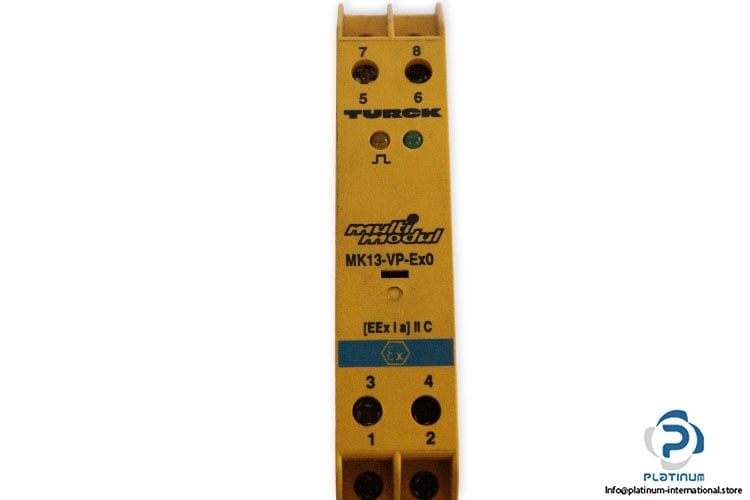

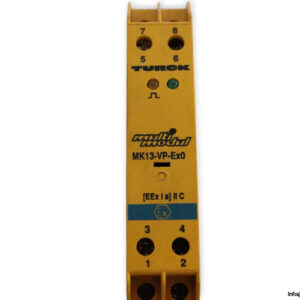

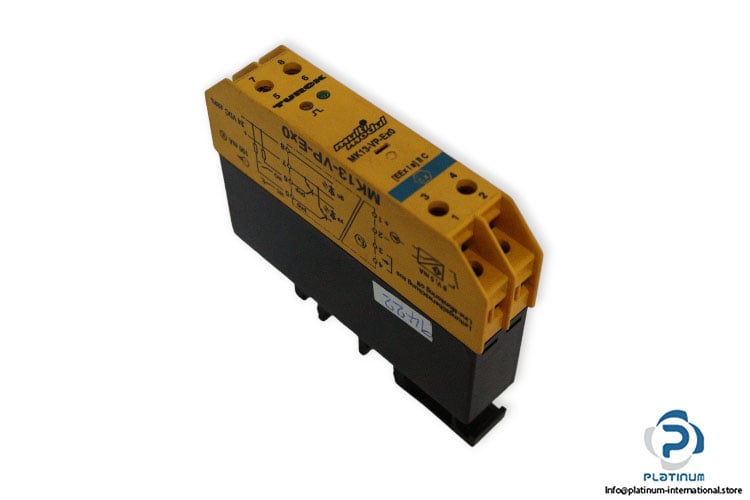

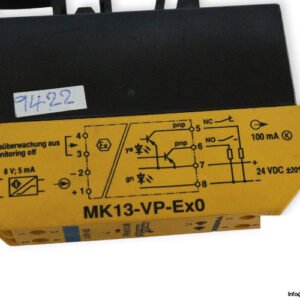

Turck MK13-VP-EX0 Isolating Switching Amplifier

Manufacture: Turck
Type: Isolating Switching Amplifier
Model: MK13VPEX0

Supply Voltage UB: 10 …30 V DC
Current consumption approx.: 20 mA
Input Circuits:
-Voltage: 8.5 V
-Current: 5 mA
-Switching threshold: 1.55 mA
Output Circuits: 2 PNP transistor outputs
-Voltage drop: ≤ 2.5 V
-Switching current per output: ≤ 100 mA
-Switching frequency: ≤ 3 kHz
Mounting: Snap-On clamps for top-hat rail or screw terminals for panel mounting
Connection: via flat terminals with self-lifting pressure plates
Connection profile: ≤ 2 x 2.5 mm2 or 2 x 1.5 mm2 with wire sleeves
Degree of protection: IP20
Operating temperature: -25…+60 °C
