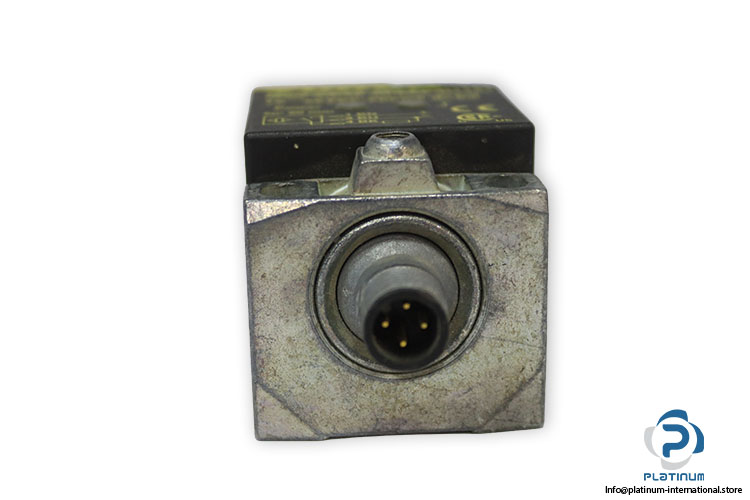

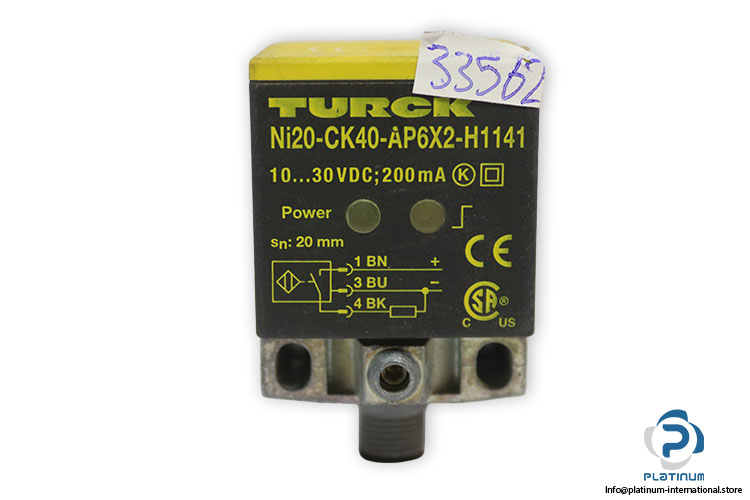

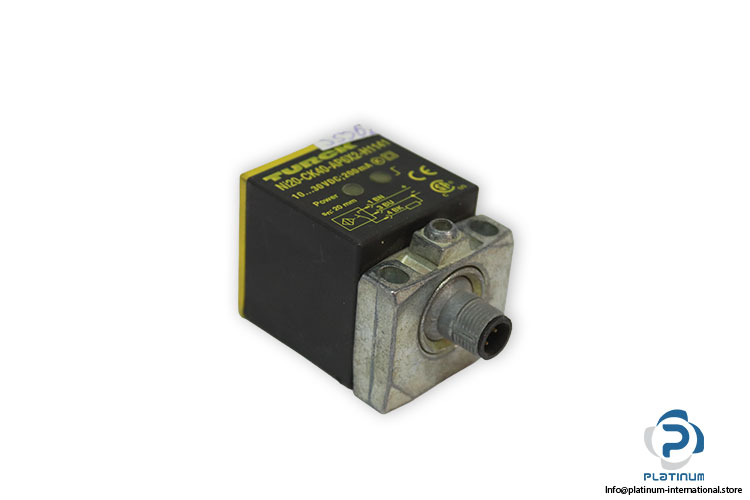

Turck NI20-CK40-AP6X2-H1141 Inductive Sensor
Neu
Auf Lager1 EinheitVersandbereit
Inductive Sensor
A rectangular industrial inductive sensor offering a 20 mm sensing distance, reliable PNP switching, and robust CP40 construction for automation and machinery applications.AutomationConnectorCP40DetectionInductiveIndustrialM12MetalNI20-CK40-AP6X2-H1141PNPProximitySensorTurck
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
TURCK NI20-CK40-AP6X2-H1141 Inductive Sensor
A high-performance inductive proximity sensor designed for precise metal detection in automated systems. This TURCK rectangular CP40 sensor offers reliable switching behavior, stable performance, and long service life, making it suitable for industrial automation, machinery control, and process monitoring applications. Manufacturer: TURCK
Type: Inductive Sensor
Model: NI20-CK40-AP6X2-H1141
ID No.: 16252
| Rated Switching Distance | 20 mm |
| Mounting Conditions | Non-Flush |
| Secured Operating Distance | (0.81 × Sn) mm |
| Correction Factors | St37: 1; Al: 0.3; Stainless Steel: 0.7; Ms: 0.4 |
| Repeat Accuracy | ‰¤ 2% of Full Scale |
| Operating Voltage | 10 / 30 VDC |
| DC Rated Operating Current Ie | 200 mA |
| Output Function | 3-wire, NO Contact, PNP |
| Switching Frequency | 0.15 kHz |
| Design | Rectangular, CP40 |
| Dimensions | 65 × 40 × 40 mm |
| Housing Material | Plastic, PBT-GF20-V0, Black |
| Active Area Material | Plastic, PA12-GF30, Yellow |
| Electrical Connection | Connector, M12 × 1 |
| Ambient Temperature | -25 / +70 °C |
| Protection Class | IP67 |
