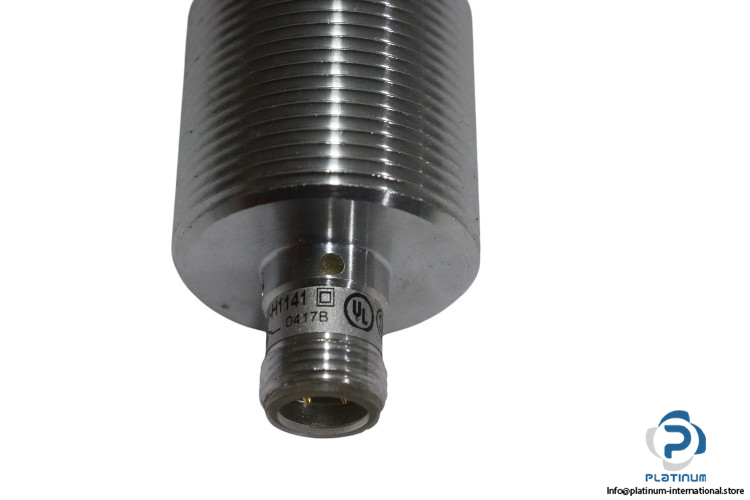

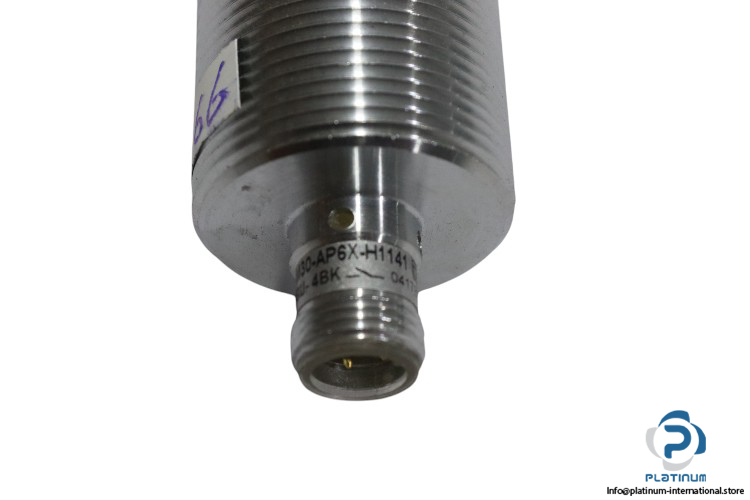

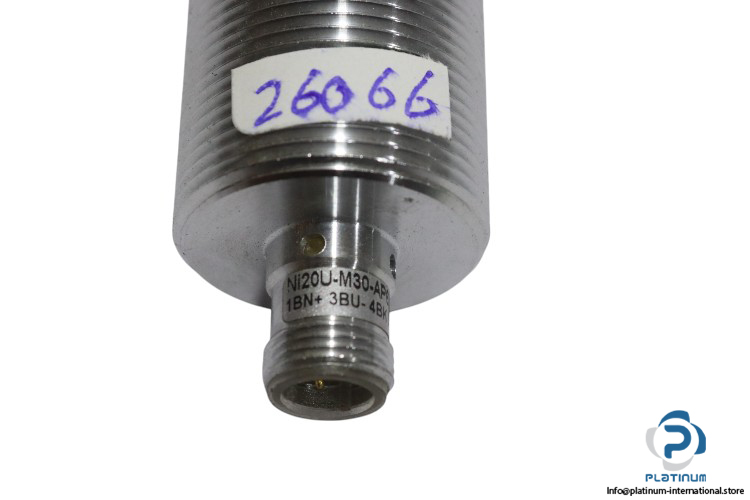

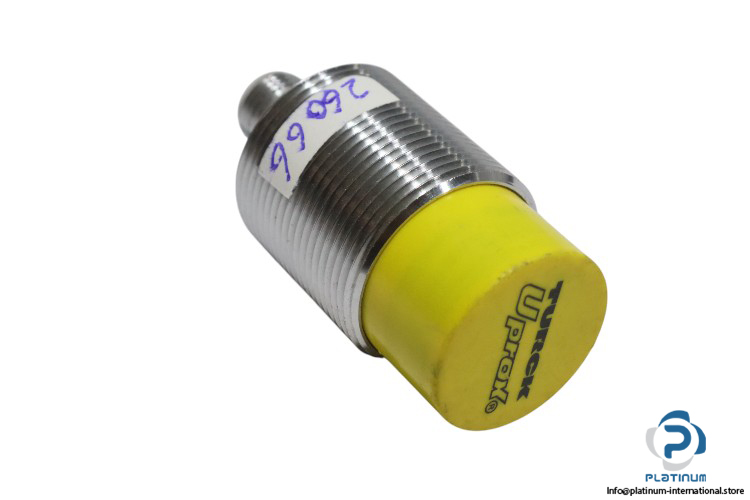

Turck NI20U-M30-AP6X-H1141 Inductive Sensor
Gebraucht
Auf Lager1 EinheitVersandbereit
Inductive Sensor
The Turck NI20UM30AP6XH1141 inductive sensor offers a 20 mm sensing range, PNP electrical design, and IP68 protection. With a wide operating voltage and temperature range, it is designed for reliable performance in tough industrial environments.
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Turck NI20UM30AP6XH1141 “ Inductive Sensor
The Turck NI20UM30AP6XH1141 inductive sensor is designed for precise detection in industrial environments. It offers a 20 mm sensing range, a PNP electrical design, and IP68 protection, making it ideal for use in demanding applications requiring reliable performance in harsh conditions.
Manufacturer: Turck
Type: Inductive Sensor
Model: NI20UM30AP6XH1141
| Sensing Range | 20 mm |
| Operating Voltage | 10 to 30 V DC |
| Electrical Design | PNP |
| Switching Output | 1 NO |
| DC Rated Operating Current Ie | 200 mA |
| No-load Current | 25 mA |
| Switching Frequency | 1 kHz |
| Housing Material | Metal, CuZn, Chrome-plated |
| Mounting | Non flush |
| Protection Degree | IP68 |
| Connection | Connector, M12 × 1 |
| Material | Metal, CuZn, Chrome-plated |
| Ambient Temperature | -30 to 85 °C |
| Length | 62 mm |
