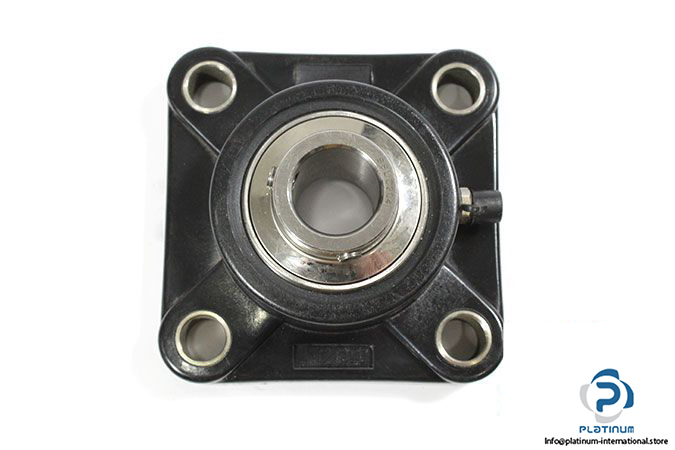

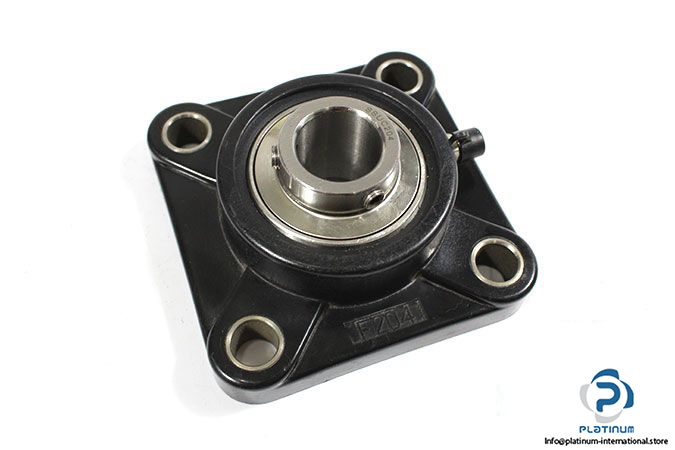

UCF204-PBT Four-Bolt Square Flange Unit

Type:  FOUR-BOLT SQUARE FLANGE UNIT

Series: UCF

Part No.: UCFP 204

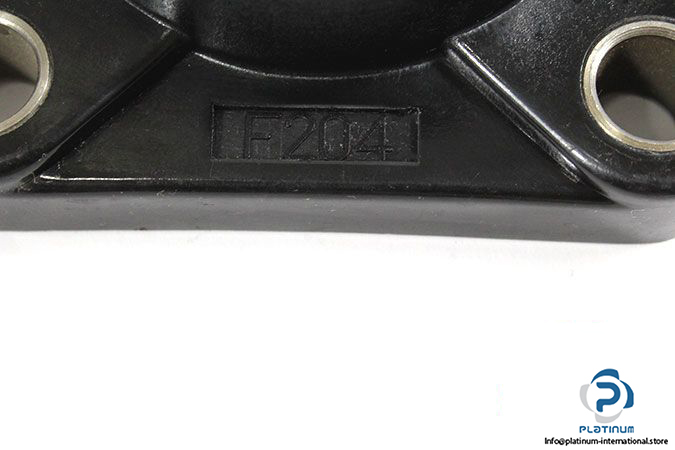

Housing No.: F204

Bearing No.: UC204



Application: The plastic pillow blocks are manufactured in accordance with FDA standards and are therefore suitable for food and pharmaceutical industries

Features:

• plastic pillow block bearings are chemically resistant
• lightweight and run quietly and smoothly in applications where metallic ball bearings will not perform

Housing material: Plastic

Bearing Material: Stainless Steel

Bore type: Round

Mounting: Four-Bolt Flange

Locking device: Set Screw

Bore Diameter: 20 mm

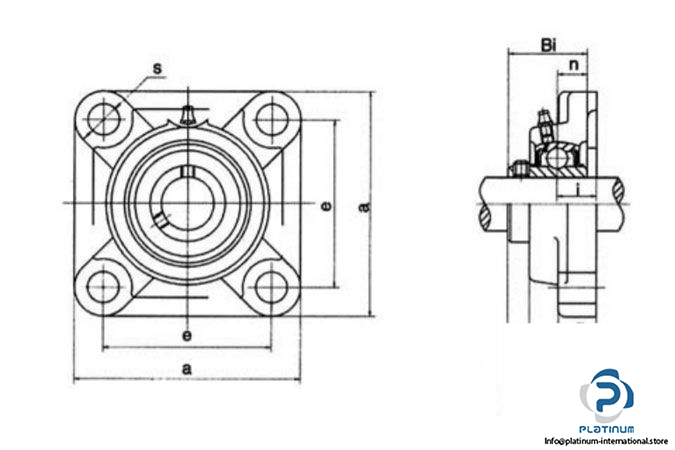

Overall length ( a ): 86 mm

Overall Width ( e ): 64 mm

Overall Height: 36 mm

thread size ( s ): 12 mm

Weight: 0.28 kg
