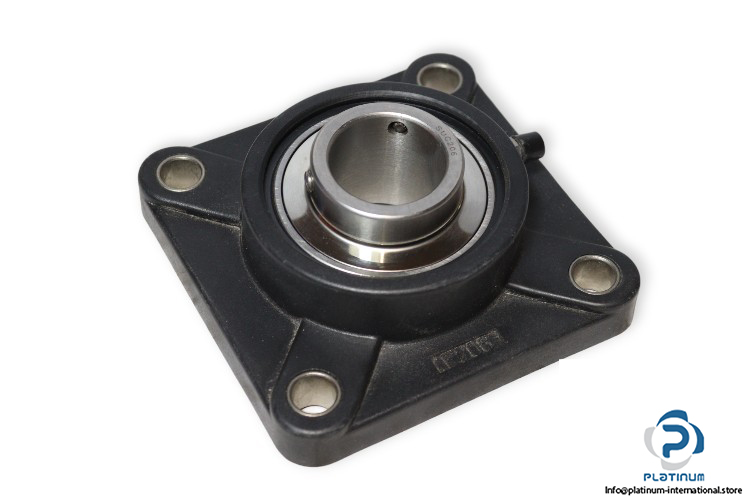

UCF206 Plastic Four-Bolt Square Flange Unit

Name: UCF206 PLASTIC FOUR-BOLT SQUARE FLANGE UNIT
SKU: 1030200
Availability: LimitedAvailability

UCF206-plastic-four-bolt-square-flange-unit-(new)

UCF206-plastic-four-bolt-square-flange-unit-(new)-1

UCF206-plastic-four-bolt-square-flange-unit-(new)-2

UCF204-plastic-four-bolt-square-flange-unit-(new)-3

Neu

Auf Lager9 EinheitenVersandbereit

Typ: Kunststoff Vier-Schrauben-Vierkant-Flansch-Einheit Modell: UCF 206 Gehäusenr.: F206 Lager-Nr.: SUC206

SKU

1030200

Kategorie

Plummer Block Housing Units

Zustand

Neu

bearing Block Four-Bolt Plastic Square UCFP206 Unit

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Type: plastic Four-Bolt Square Flange Unit
Model: UCF 206

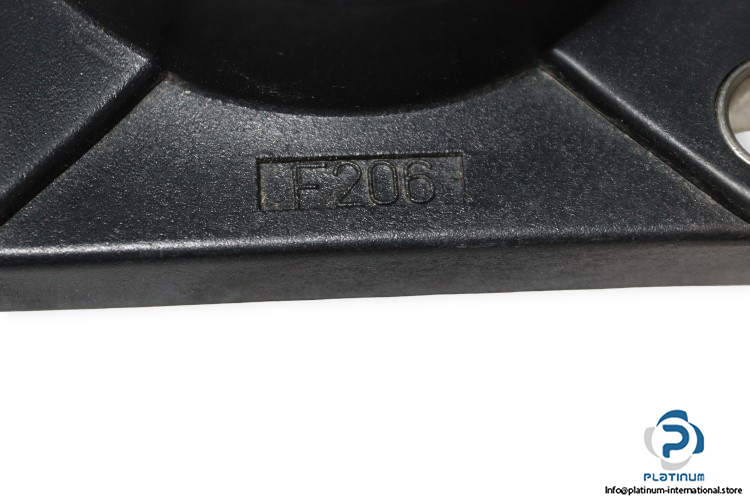

Housing No.: F206

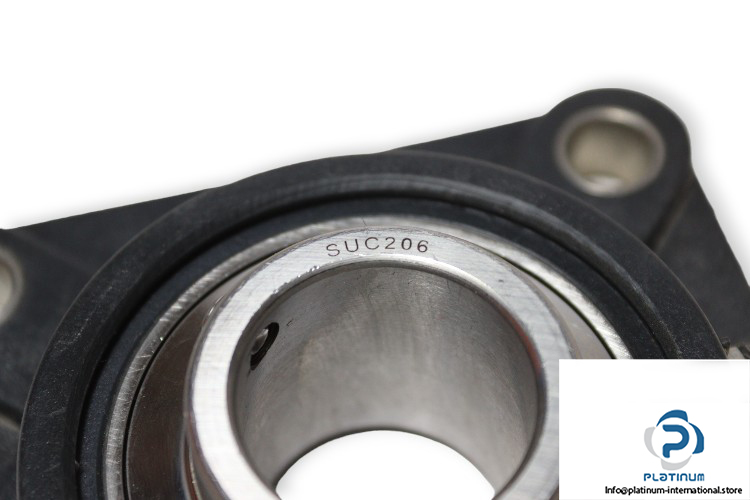

Bearing No.: SUC206

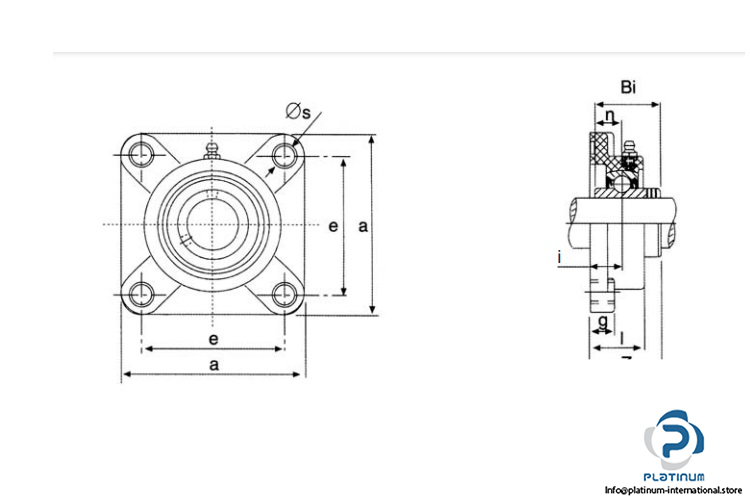

Dimensions
Bore Diameter d: 30 mm
Overall length a: 107 mm
i: 19.2 mm
Housing foot height / flange height g: 14.3 mm
Width of housing I: 31.5 mm
Distance Between Attachment Bolts e: 83 mm
Mounting hole diameter s: 11 mm
Overall width z: 41.4 mm
Mounting: Four-Bolt Flange
Housing Color: Black
Material, bearing: Stainless Steel
Material, housing: Plastic
