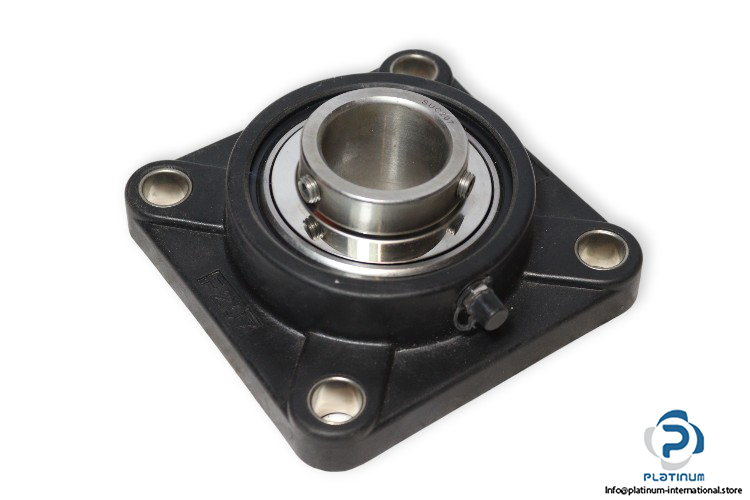

UCF207 Plastic Four-Bolt Square Flange Unit

Name: UCF207 PLASTIC FOUR-BOLT SQUARE FLANGE UNIT
SKU: 1030203
Availability: LimitedAvailability

UCF207-plastic-four-bolt-square-flange-unit-(new)

UCF207-plastic-four-bolt-square-flange-unit-(new)-1

UCF207-plastic-four-bolt-square-flange-unit-(new)-2

UCF204-plastic-four-bolt-square-flange-unit-(new)-3

Neu

Auf Lager30 EinheitenVersandbereit

Typ: Kunststoff Vier-Schrauben-Quadratflansch Einheit Modell: UCF 207 Gehäusenr.: F207 Lager-Nr.: SUC207

SKU

1030203

Kategorie

Plummer Block Housing Units

Zustand

Neu

bearing Block Four-Bolt Plastic Square UCFP207 Unit

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Type: plastic Four-Bolt Square Flange Unit
Model: UCF 207
Housing No.: F207
Bearing No.: SUC207

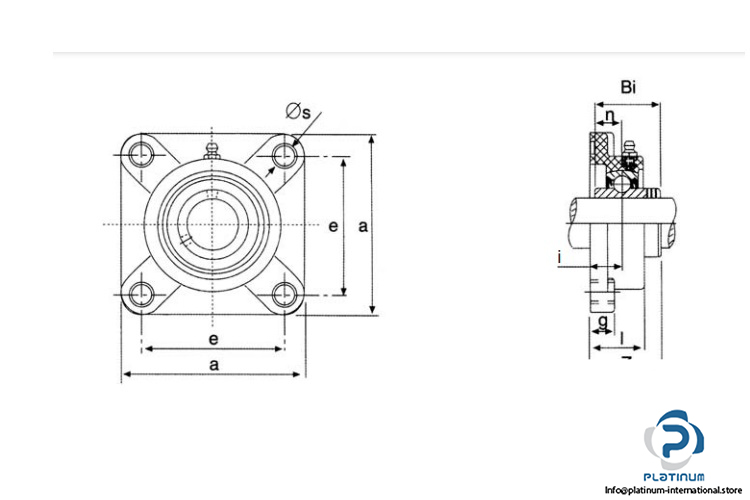

Dimensions
Bore Diameter d: 35 mm
Overall length a: 118 mm
i: 21.5 mm
Housing foot height / flange height g: 15.5 mm
Width of housing I: 34.8 mm
Distance Between Attachment Bolts e: 92 mm
Mounting hole diameter s: 13 mm
Overall width z: 46.9 mm
Mounting: Four-Bolt Flange
Housing Color: Black
Material, bearing: Stainless Steel
Material, housing: Plastic
