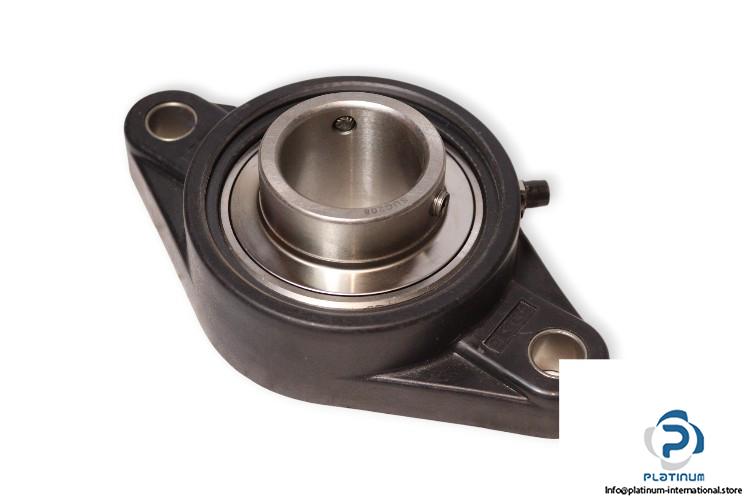

UCFL208 Plastic Oval Flange Housing Unit

Type: plastic Oval Flange Housing Unit
Model: UCFL 208

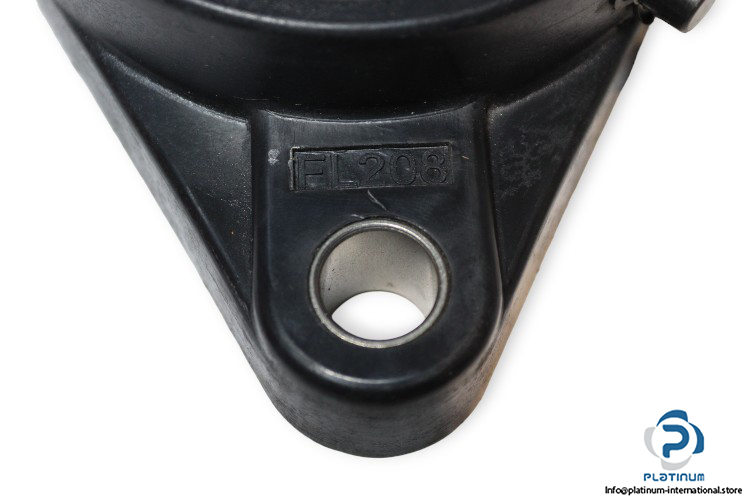

Housing No.: FL208

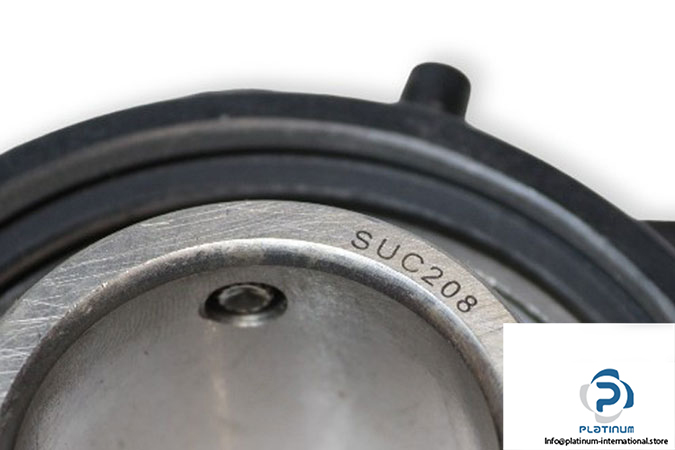

Bearing No.: SUC208

Dimensions
Bore Diameter d: 40 mm
Overall Length b: 100 mm
Overall Height a: 176 mm
Distance mounting surface to bearing center i: 21.5
Distance Between Attachment Bolts e: 144 mm
Diameter of attachment bolt hole s: 14 mm
Overall Width z: 51.7 mm
Mounting: Oval flange
Housing Color: Black
Material, housing: Plastic
Material, bearing: Stainless Steel
