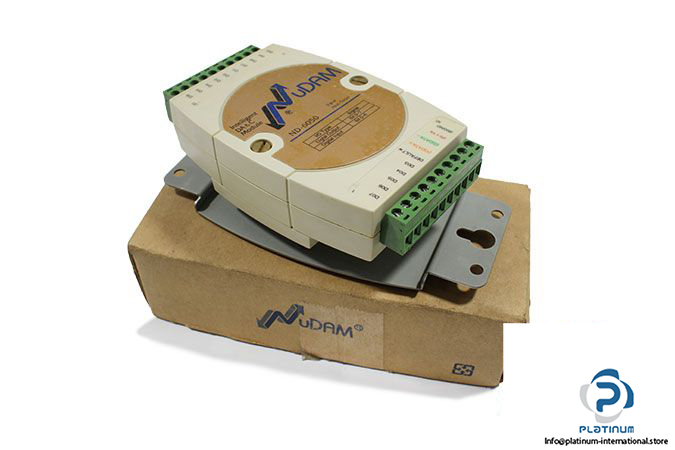

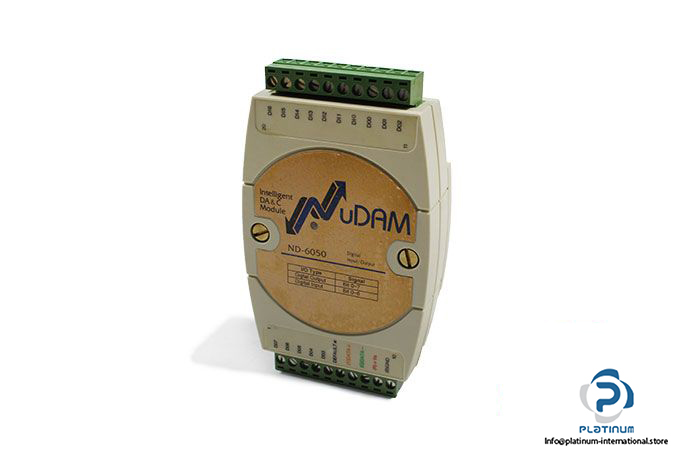

Udam ND-6050 Digital I/O Module
Manufacturer: UDAM
Type: Digital I/O Module
Model: ND-6050
Digital Input:
Channels: 7
Switching Level: TTL
Internal Pull-Up Resistor: 10 kΩ
Maximum Current: 0.5 mA
Programmable input polarity
Digital Output:
Channels: 8
Maximum Current Sink: 50 mA
Maximum Power Dissipation: 300 mW
Programmable output polarity
Programmable power on/safety state
Power:
Requirement: unregulated 10 … 30 VDC
Power Consumption: 0.336 W typical
Weight: 0.26 Kg
