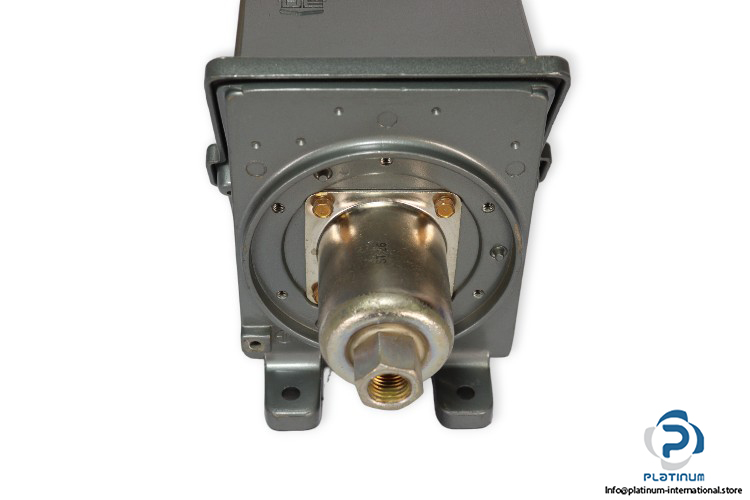

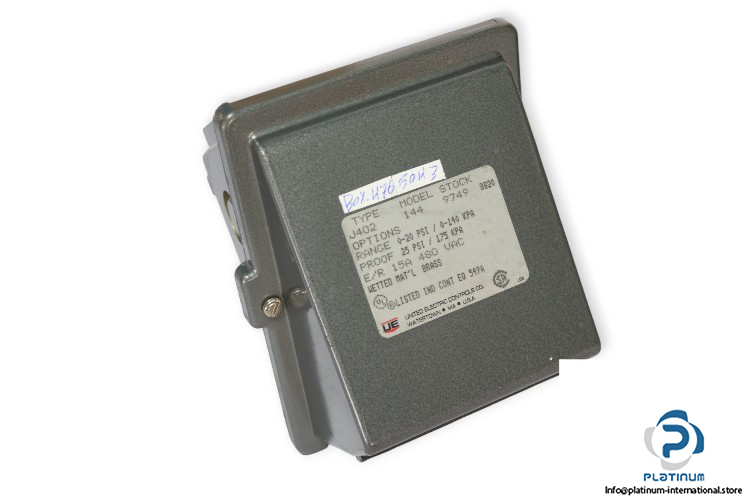

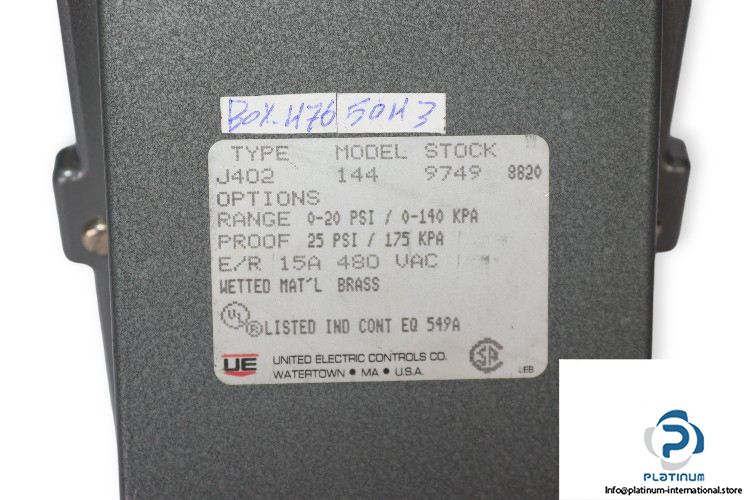

UE J402-144 Pressure Switch

Manufacturer: UNITED ELECTRIC CONTROLS
Type: Pressure Switch
Model: 144
Part No.: J402-144
MNR: 9749

Adjustable Set Point Range: 0 … 20 PSI, 0 … 140 KPa
Proof Pressure: 25 Psi ,175 KPa
Connection: G ¼
Voltage Contact Rating: 480 V AC
Max. Current Rating: 15 A
Outputs: Two SPDT outputs; internal hex screw adjustment
Enclosure: Die cast aluminum, epoxy powder coated, gasketed, captive cover screws
Wetted Part Material: Teflon® diaphragm and Viton® O-Ring with 316L stainless steel
