VEB BL 150 Electro Hydraulic Thruster
Gebraucht
Auf Lager1 EinheitVersandbereit
Elektro-Hydraulischer Antrieb VEB BL 150 elektro-hydraulischer Antrieb mit 150 mm Hub, Drehstrom-Asynchronmotor und Dauerbetriebsfähigkeit für industrielle Antriebsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

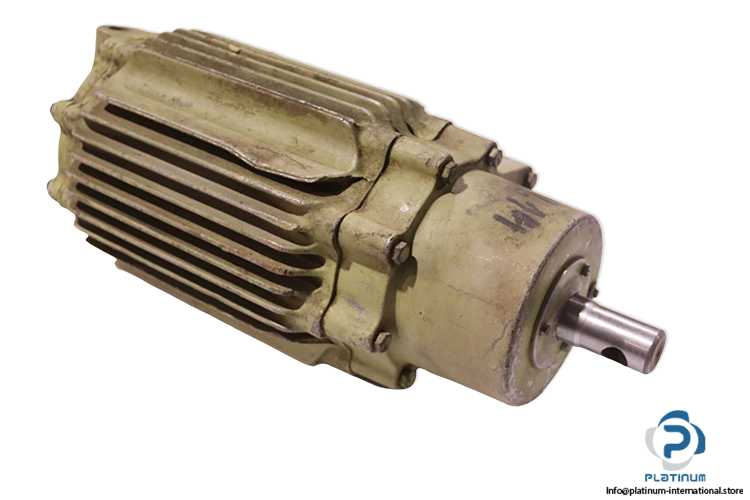

VEB BL 150 Electro Hydraulic Thruster
The VEB BL 150 is an electro hydraulic thruster designed for precise and reliable linear actuation in industrial systems. It combines a robust hydraulic mechanism with a three-phase AC motor to deliver consistent force, stable motion, and dependable continuous-duty performance.

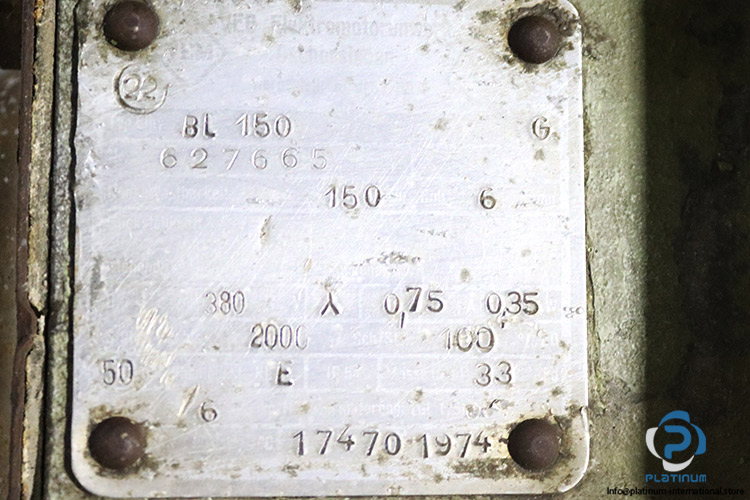

Manufacturer: VEB
Type: Electro Hydraulic Thruster
Model: BL 150
Part No.: 627665
Code: 174701974
Design Version: G
Duty Cycle:
2000 operations/hour
100% ED (continuous duty)
| Stroke | 150 mm |
| Motor Type | 3-Phase AC |
| Rated Voltage | 380 V AC |
| Rated Current | 0.35 A |
| Power | 0.75 kW |
| Frequency | 50 Hz |
| Thermal Class | E |
| Ambient Temperature Rating | 33 °C |
