Vega SWING61.XXGBVXPCX Vibrating Level Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
333,33$
VIBRIERENDER PEGELSCHALTER Vega SWING61.XXGBVXPCX mit nassberührten Teilen aus Edelstahl, 20"250 V AC/DC Versorgung, max. Strom 400 mA, IP66/67 Schutz und einem Betriebstemperaturbereich von -50 bis +250 °C.
20“250Ac/DcHighIP66IP67LevelNamurOutputPressureSensorstainlessSteelSWING61.XXGBVXPCXSwitchTemperatureTransistorVVegaVibrating
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

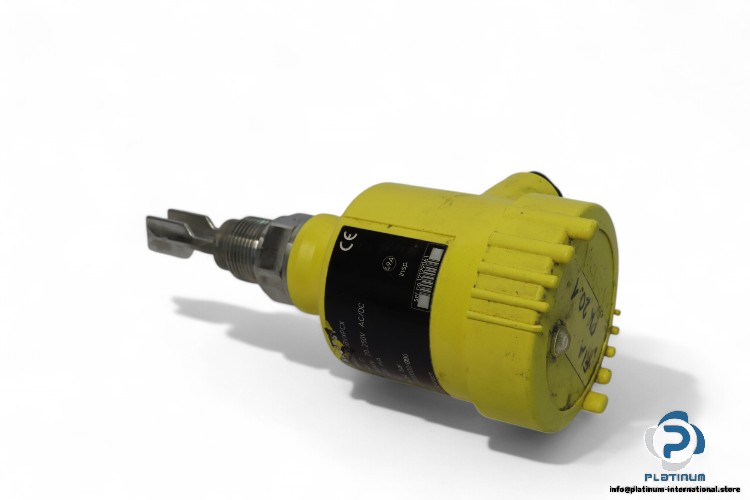

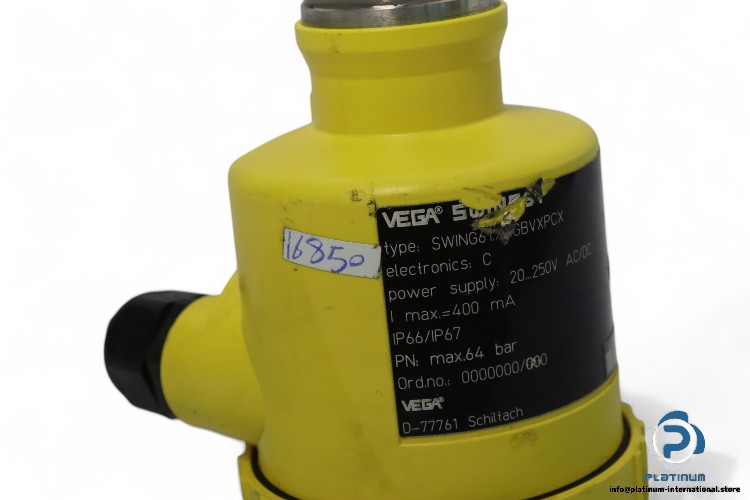

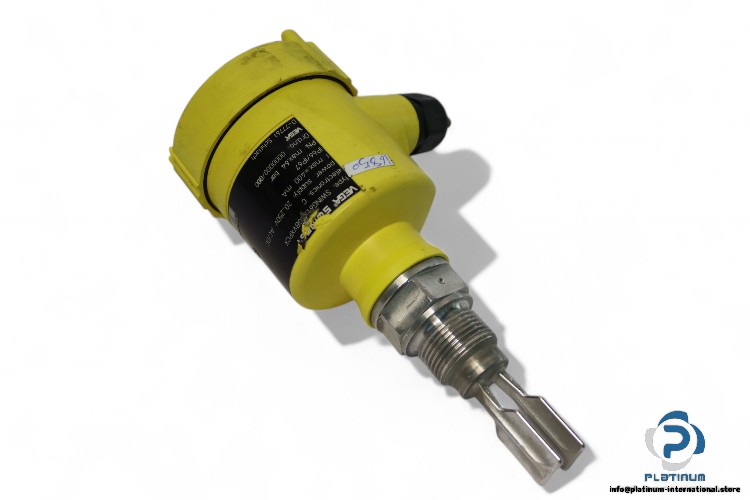

Vega SWING61.XXGBVXPCX Vibrating Level Switch
The Vega SWING61.XXGBVXPCX is a robust vibrating level switch designed for reliable detection of liquid levels across a wide range of industrial applications. With stainless steel wetted parts, high protection rating, and flexible process fittings, it ensures long-lasting performance even under extreme temperature and pressure conditions.
Manufacturer: Vega
Type: Vibrating Level Switch
Model: SWING61.XXGBVXPCX
Order No.: 0000000/000
| Electronics | C |
| Current Max. | 400 mA |
| Power Supply | 20“250 V AC/DC |
| Wetted Parts | Stainless steel |
| Process Fitting | GBV; Threads from G¾, ¾ NPT, flanges from DN 25, 1³, hygienic fittings |
| Electronics Type | Transistor Output, NAMUR version |
| Density | 0.7 / 2.5 g/cm³ |
| Plug Connector | M12X1 |
| Protection | IP66/67 |
| Process Pressure | -1 / 64 bar |
| Process Temperature | -50 / +250 °C |
