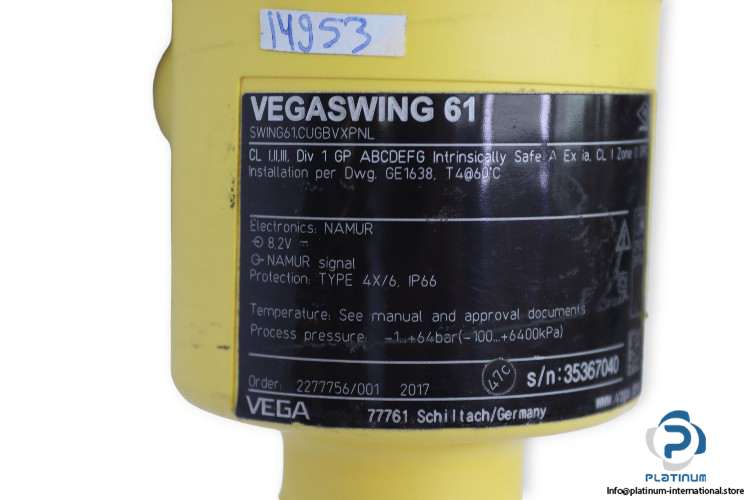

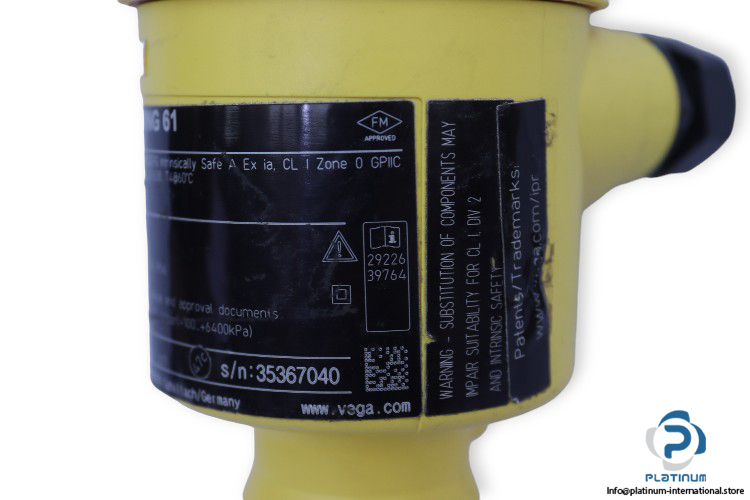

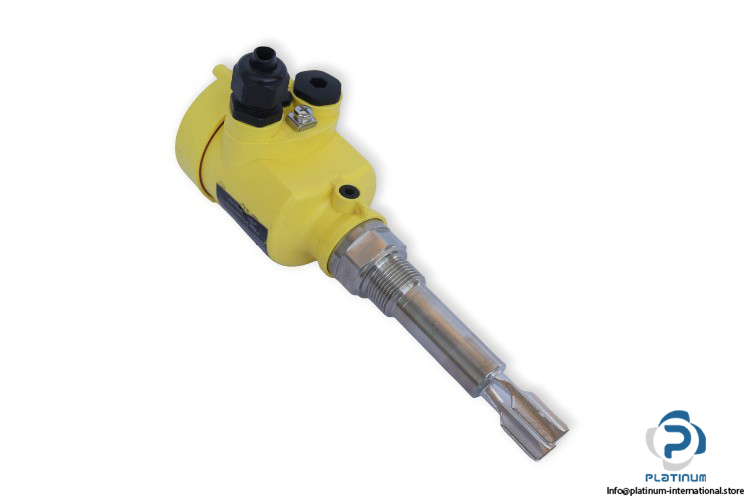

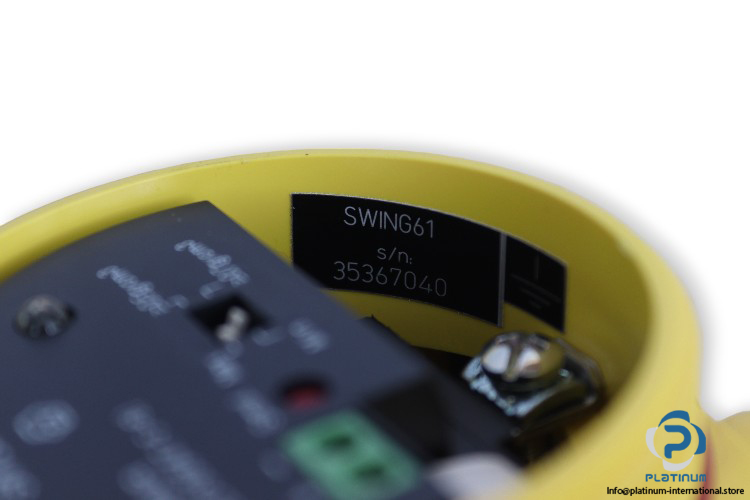

Vega Vegaswing 61 SWING61.CUGBVXPNL Vibrating Point Level Sensor

Manufacturer: VEGA
Type: Vibrating Point Level Sensor
Model: VEGASWING 61 SWING61CUGBVXPNL
Order No.: 2277756001

Series: VEGASWING 61
Sensor Prob Length: 50 mm
Process Pressure: -1 … 64 bar (-100 … 6400 kPa)
Process Temperature: -50 … 150 °C
Supply Voltage: 8.2 V DC
Output Signal: Two-Wire NAMUR
Material: Aluminium (Plastic Coated)
Protection Class: IP66
Ambient Temperature: -40 … 70 °C
Length, Diameter: 217, 79 mm

Attachment:

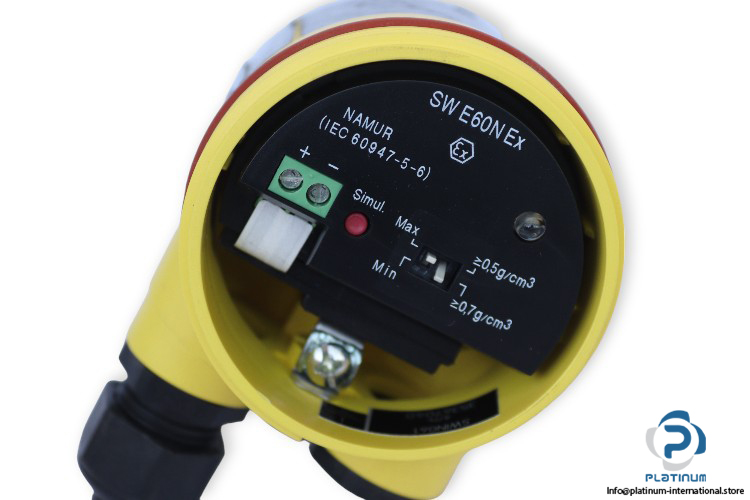

VEGA SW E60N Ex SWING 61 ELECTRONIC INSERT

Manufacturer: VEGA
Type: Electronic Insert
Model: SW E60N Ex SWING 61

Supply Voltage: 8.2 V DC
Output Signal: Two-Wire NAMUR
