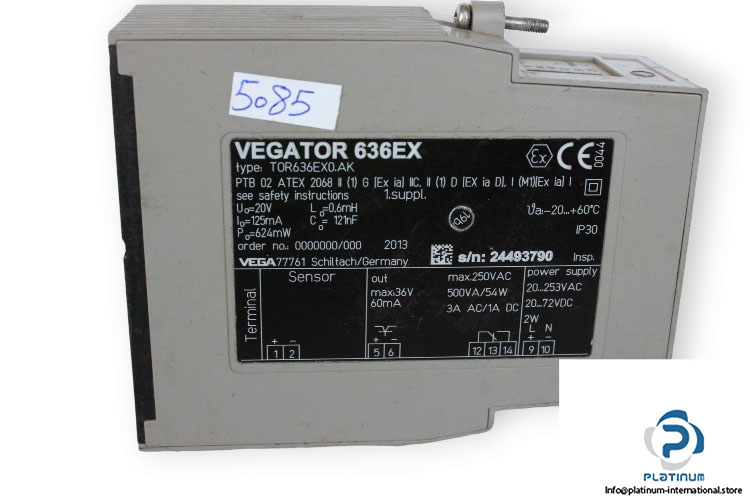

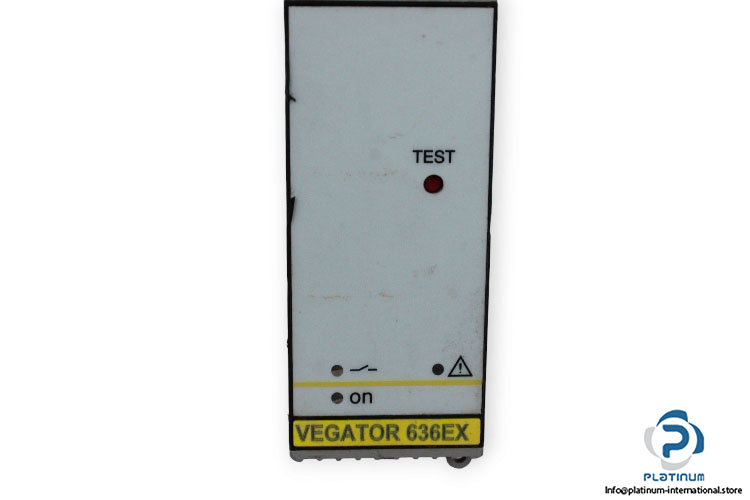

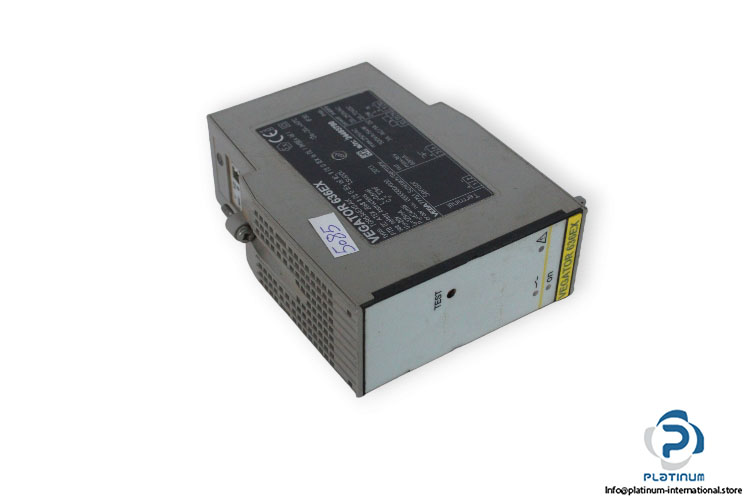

Vegator 636EX Evaluation Relay

Manufacture: Vegator
Type: Evaluation relay
Model: TOR636EX0AK
Part No.: 636EX

Used: for vibrating level switches VEGASWING, VEGAVIB and VEGAWAVE
Advantages:
*Adjustable integration time
*Fault monitoring and fault message via LED
*Test key for function test according to WHG
*Mounting on carrier rail 35 x 7.5 according to EN 50022 SIL2 qualified
Supply Voltage: 20 … 253 V AC/20 … 72 V DC
Operational voltage Uo: 20 V
Operational current Io: 125 Ma
Operational power Po: 624 mW
Output Voltage: 250 V AC max.
Power: 500 VA/54 W
Temperature range: -20 … 60°C
Protection degree: IP30
Dimensions: 134 x 36 x 118.5 mm
