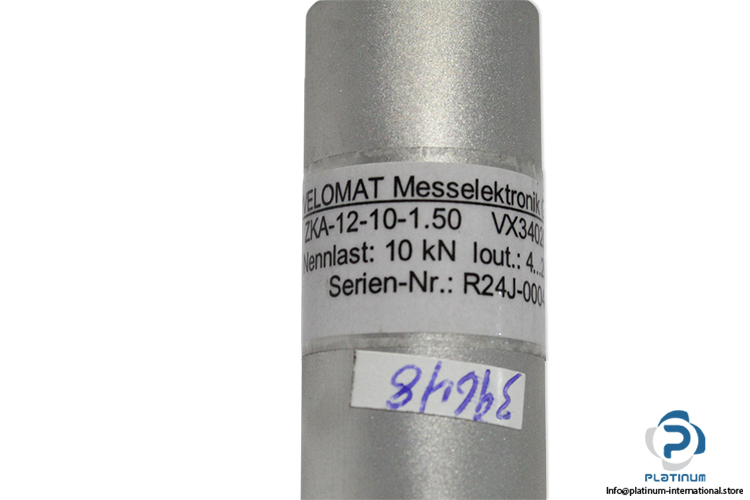

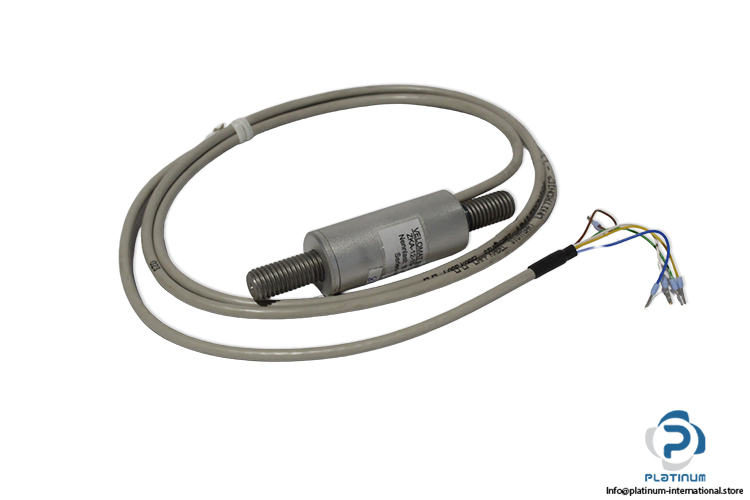

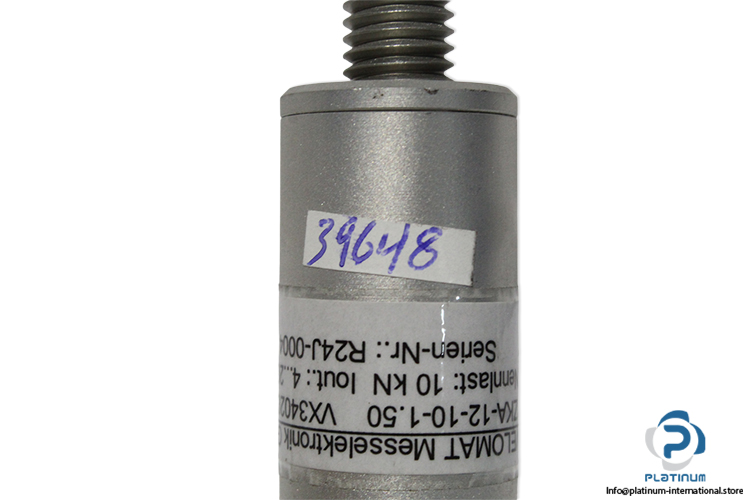

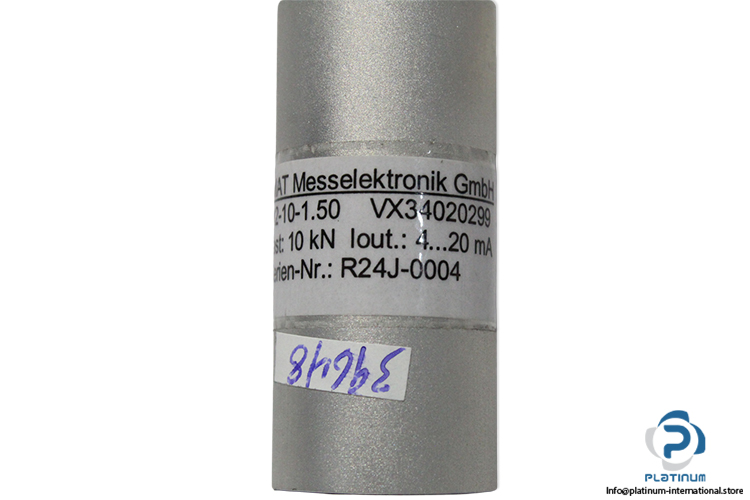

Velomat ZKA-12-10-1.50 Tensile Force Transducer
Neu
Auf Lager1 EinheitVersandbereit
Industrial Tensile Force Transducer VELOMAT industrial tensile force transducer with 0…10 kN measuring range, 4…20 mA output and integrated amplifier for reliable force measurement.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | VX34020299 |
| Ref No | 21404 |
| Series | ZKA-12 |
| Art. No | TA12650 |
| Prt. No | 103715 |
| SN | R24J-0004 |
| Measuring principle | with integrated amplifier |
| Measuring range | 0...10 kN |
| Measuring signal | 4...20 mA |
| Material | rod - stainless steel / sleeve - aluminium |
| Protection class | IP 67 |
| Nominal force | 10 kN |
| Insulation resistance | 5.000 MO |
| Nominal temperature range | -15 °C to +70 °C |
| Power supply | 12-24 V DC ± 20 % |
| Power consumption | max. 45 mA |
| Output signal | 4...20 mA |
| Execution | Internal measuring amplifier |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101065 |
| Weight | 0,16 |
