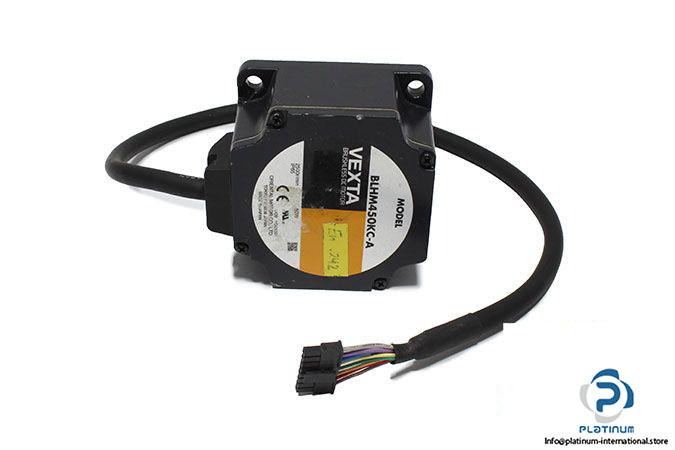

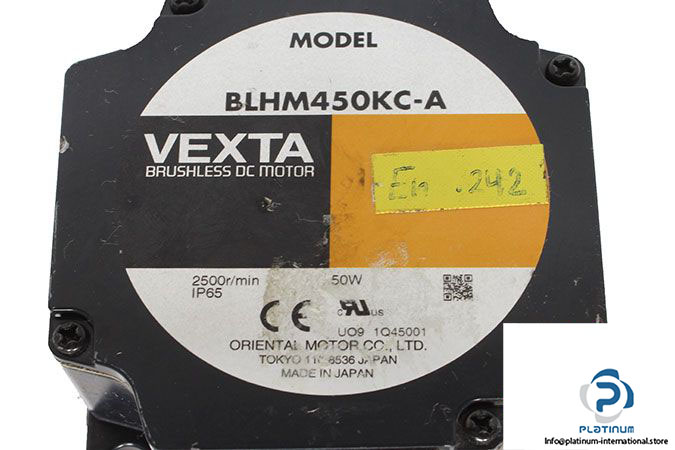

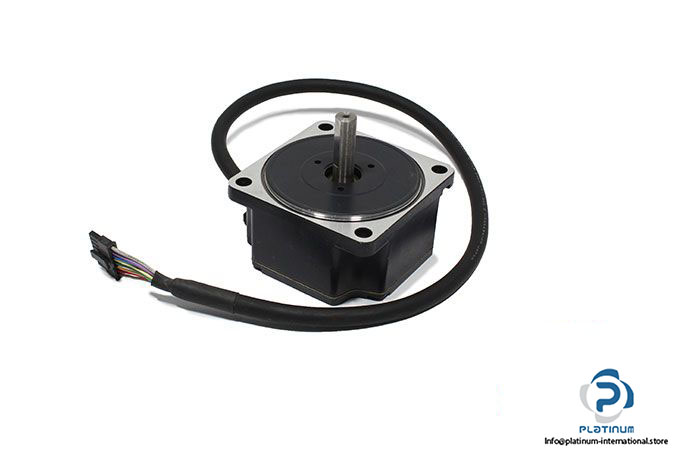

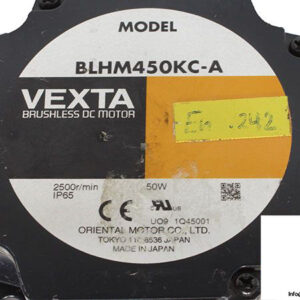

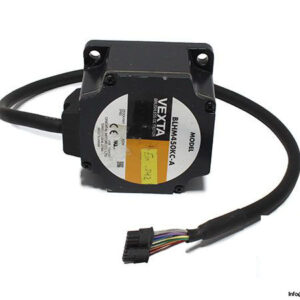

Vexta BLHM450KC-A Brushless DC Motor

Manufacturer: VEXTA

Type: Brushless Dc Motor

Model: BLHM450KC-A

Motor Frame Size: 3.15 inch

Output Power: 50 W (1/15 HP)

Power Supply: 24 VDC

Driver Type: Analog

Shaft/Gear Type: Round Shaft (No Gearhead)

Output Shaft Diameter: 10 mm

Rated Torque: 1.69 lb-in

Variable Speed Range: 100 ~ 3000 r/min

Permissible Load Inertia: 18.10 oz-in²

Insulation Resistance: 100 MΩ

Degree of Protection: IP65

Ambient Temperature: 0 … +50°C

Permissible Overhung Load:

• 39 in. from Shaft End = 27 lb
• 79 in. from Shaft End = 31 lb

Weight: 0.8 Kg
