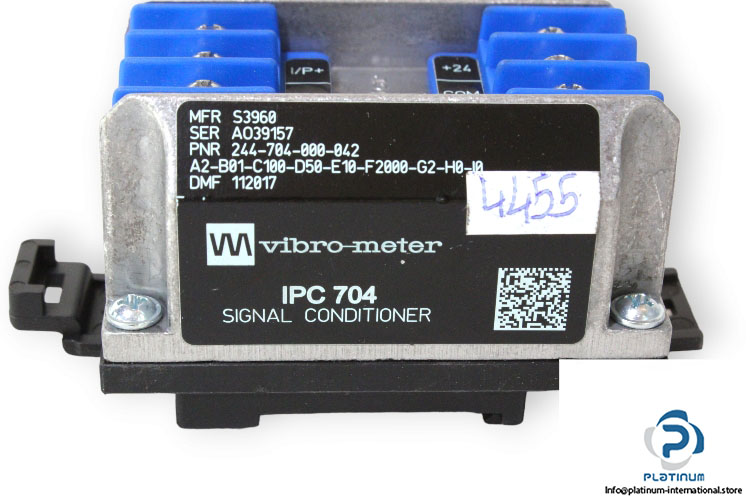

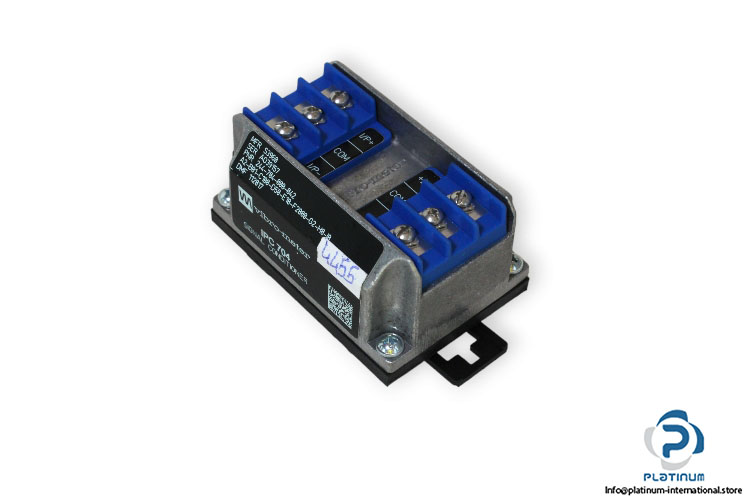

Vibro-Meter IPC 704 Signal Conditioner

Manufacture: Vibro-Meter
Type: Signal conditioner
Model: IPC 704
Part No.: 244-704-000-042 A2-B01-C100-D50-E10-F2000-G2-H0-I0

Supply voltage: 18 … 30 V DC
Current: max. 25 mA

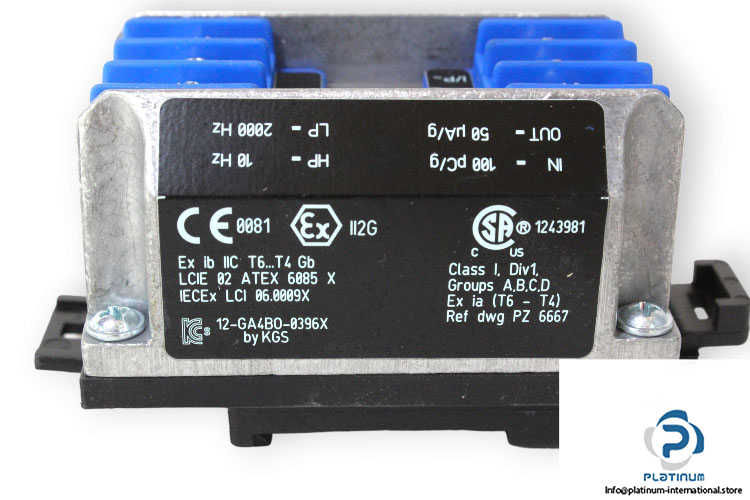

Input: 100 pC/g
Output: 50 μA/g
Input sensitivity: 100 µA/µm
Output Sensitivity: 50 µA/µm
High-pass filter Frequency: 10 Hz
Low-pass filter Frequency: 2000 Hz
Installation: Signal conditioner mounted on mounting adaptor
Operating temperature: -30 … 85°C
Protection degree: IP40
Dimensions: 36.5 x 79.4 x 54 mm
