Vipa 315-4NE12 CPU
Gebraucht
Auf Lager1 EinheitVersandbereit
1 399,99$
SPEED7 CPU VIPA CPU315SN SPEED7 PLC CPU mit 24 VDC Stromversorgung, 1 A Nennstrom, 8,5 W Leistungsverlust, integriertem DP-Master, bis zu 8 Funktions- und Kommunikationsmodulen und kompakter Baugröße 80 × 125 × 120 mm.
24VDC315-4NE12AutomationControllerCPUCPU315SNDPHighIndustrialmasterModularperformancePLCSeriesSpeed7Vipa
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

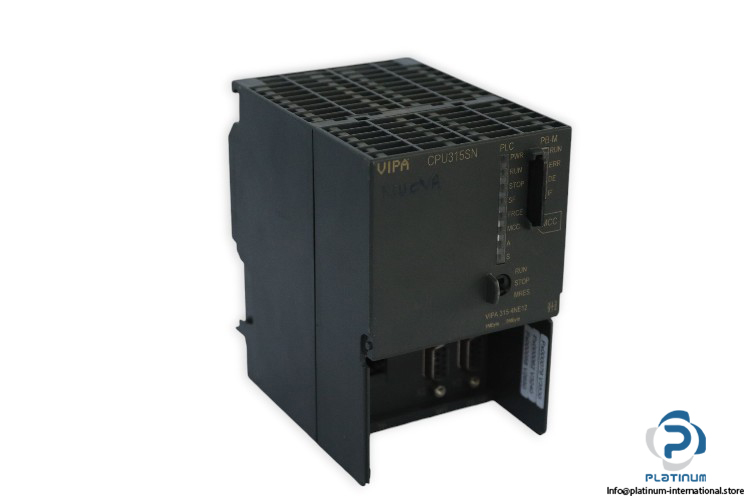

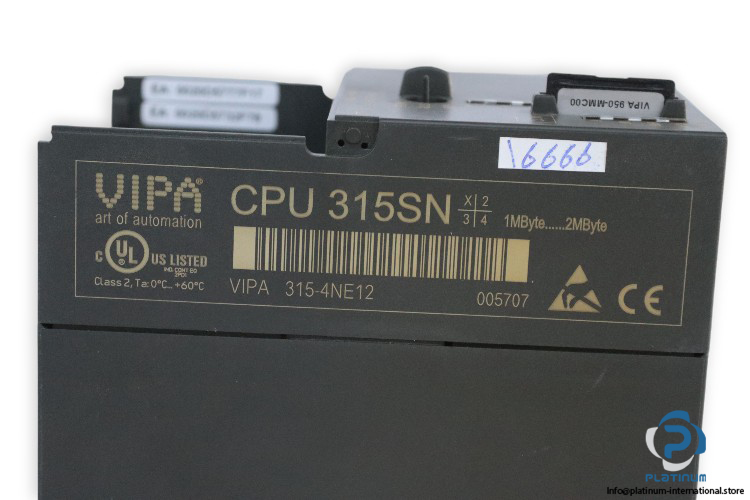

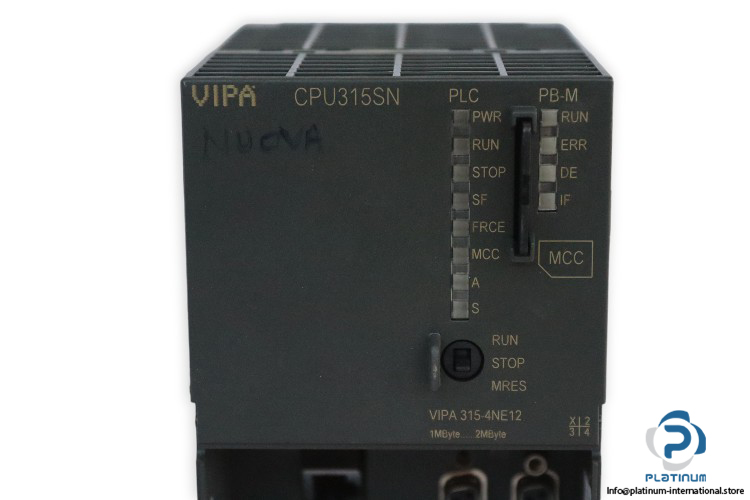

VIPA CPU315SN SPEED7 CPU
The VIPA CPU315SN from the SPEED7 series is a high-performance PLC CPU designed for fast processing and advanced automation tasks. With integrated DP master, multiple communication module options, and reliable power design, it is ideal for demanding industrial control applications.
Manufacturer: VIPA
Type: SPEED7 “ CPU
Model: CPU315SN
Order Number: 315-4NE12
| Power Supply (Rated Value / Permitted Range) | 24 VDC / 20.4 / 28.8 VDC |
| Current Consumption (No-Load Operation) | 270 mA |
| Current Consumption (Rated Value) | 1 A |
| Inrush Current | 5 A |
| Power Loss | 8.5 W |
| Number of Integrated DP Master | 1 |
| Number of DP Master via CP | 4 |
| Operable Function Modules | 8 |
| Operable Communication Modules PtP | 8 |
| Operable Communication Modules LAN | 8 |
| Operating Temperature | 0 / +60 °C |
| Dimensions | 80 x 125 x 120 mm |
