Wabco 572 752…0 Double Solenoid Valve

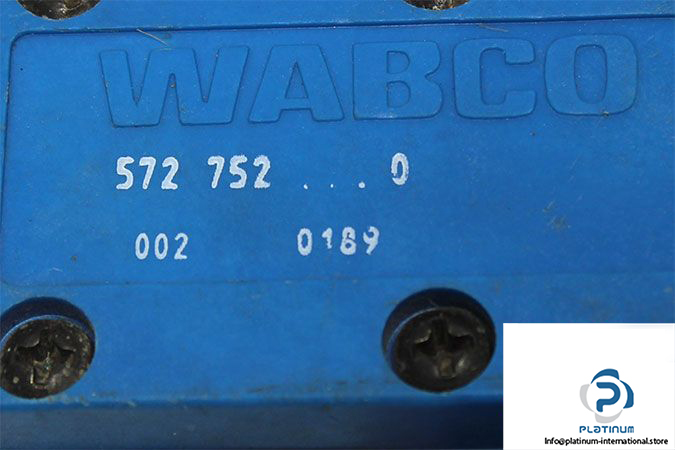

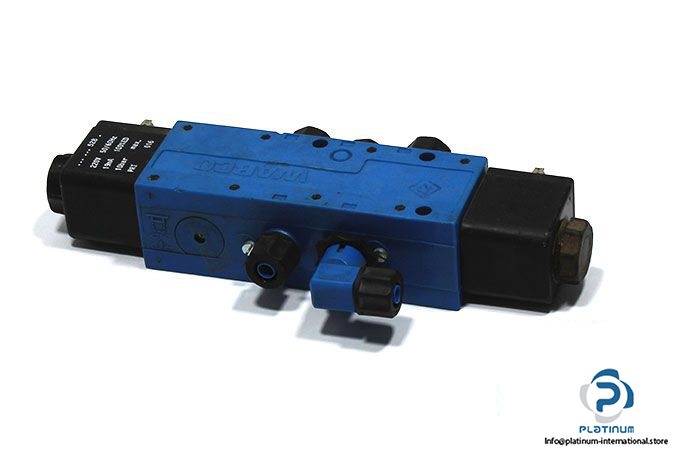

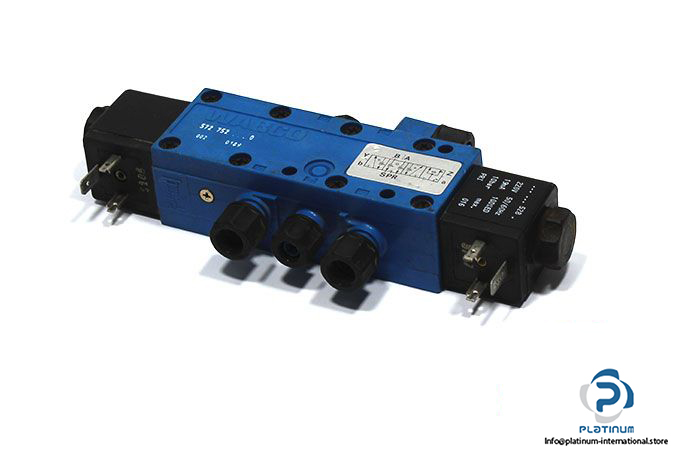

WABCO REXROTH 5727520 DOUBLE SOLENOID VALVE WITH PRI016 COIL

The WABCO REXROTH 572 752 / 0 is a high-performance double solenoid valve designed for pneumatic applications requiring precise control. Electrically actuated and built with durable polyamide material, this unit ensures consistent operation in industrial environments. It comes equipped with a WABCO PRI016 solenoid coil for reliable electrical switching.

Manufacturer: WABCO REXROTH
Type: Double Solenoid Valve
Model: 572 752 / 0

Valve Specifications

• Fluid: Air
• Type of Actuation: Electrically
• Operating Pressure: 0 / 10 bar
• Port Size: 9 mm
• Material: Polyamide
• Protection Class: IP65
• Ambient Temperature: -10 / 60 °C

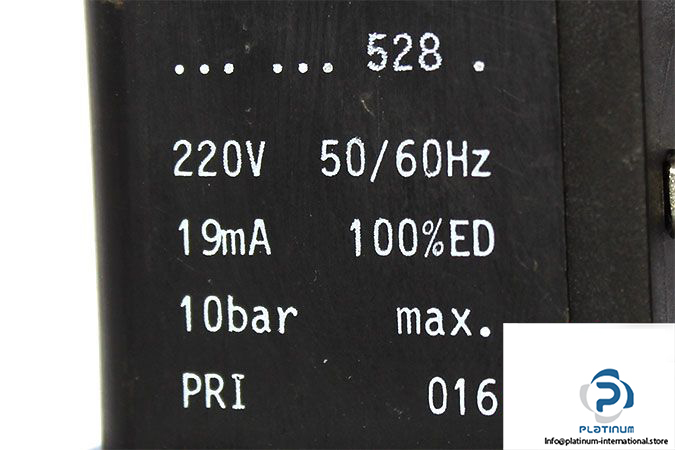

Solenoid Coil Attachment: WABCO PRI016

• Manufacturer: WABCO
• Type: Solenoid Coil
• Model: PRI016
• Supply Voltage: 220 V AC
• Frequency: 50 … 60 Hz
• Current Consumption: 19 mA
