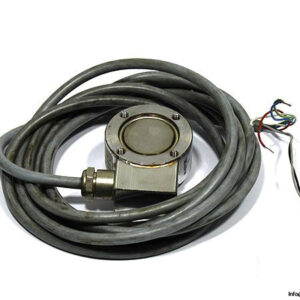

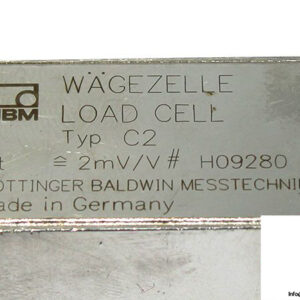

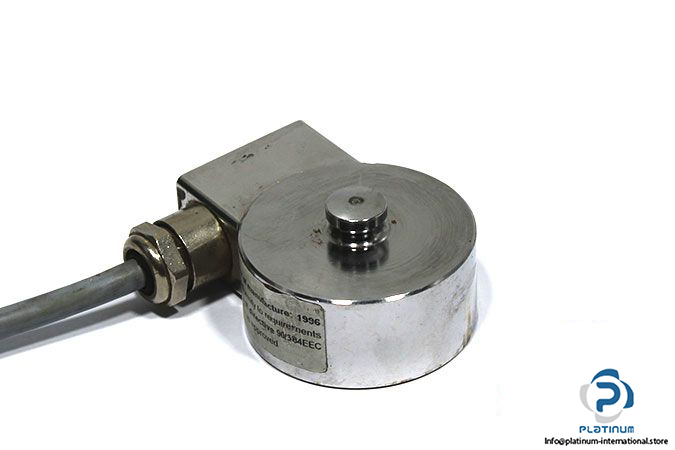

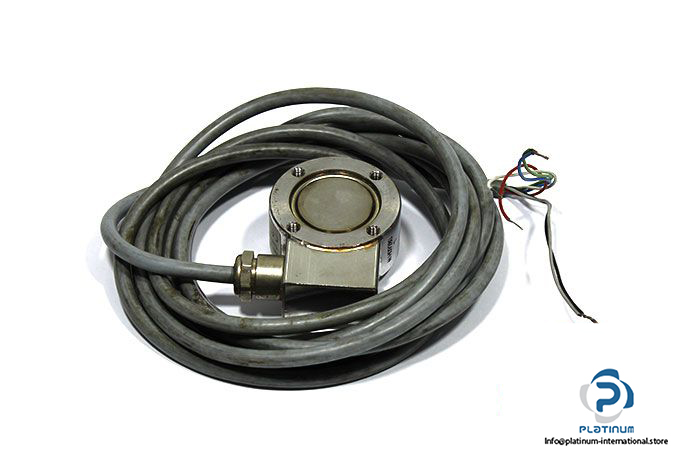

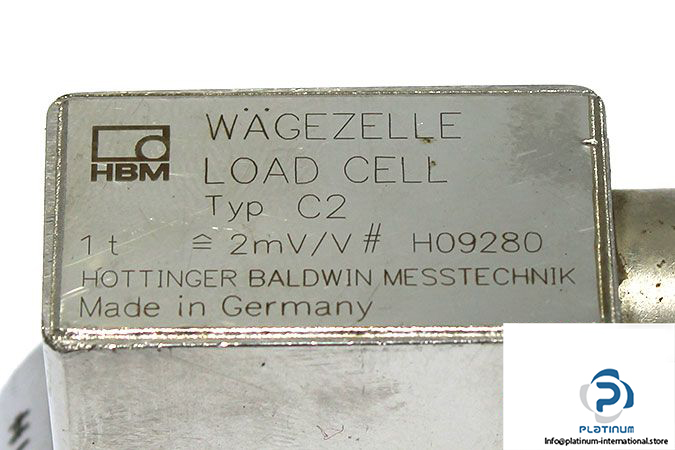

Wagezelle C2 MAX 1000 KG Compression Load Cell

Manufacturer: Wagezelle

Type: Compression Load Cell

Model: C2

MRN: H09280

Maximum weight limit (E max): 1000 kg (1t)

Nominal Sensitivity: 2 mV/V

Nominal Range of Excitation Voltage: 0.5…12 VDC

Input Resistance: 340…450 Ω

Output Resistance: 356+0.2 Ω

Temperature Nominal Range: -10…40 °C

Cable Length: Approx. 3 M

Connection: 7 Wires

Material: Stainless Steel

Protection Class: IP67

Weight: 0.50 kg
