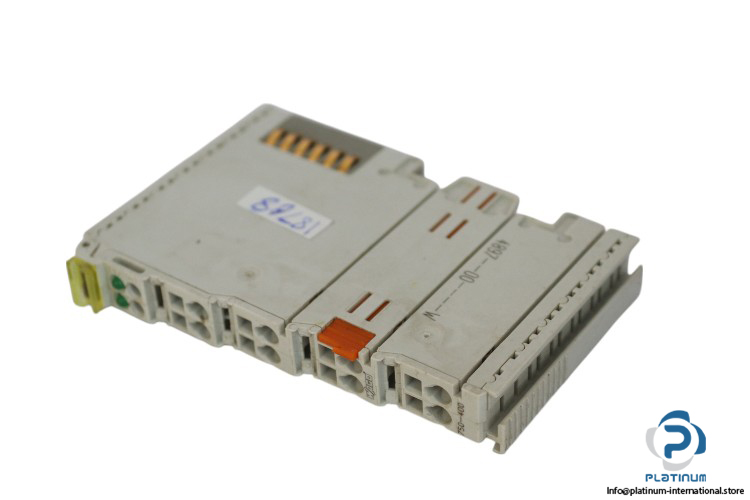

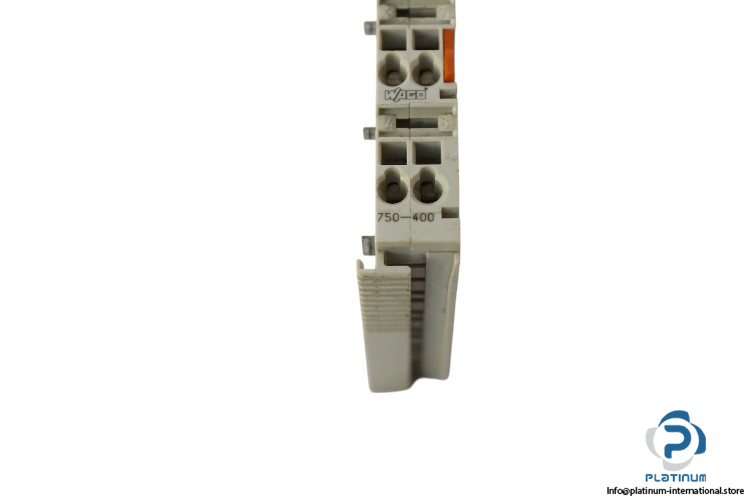

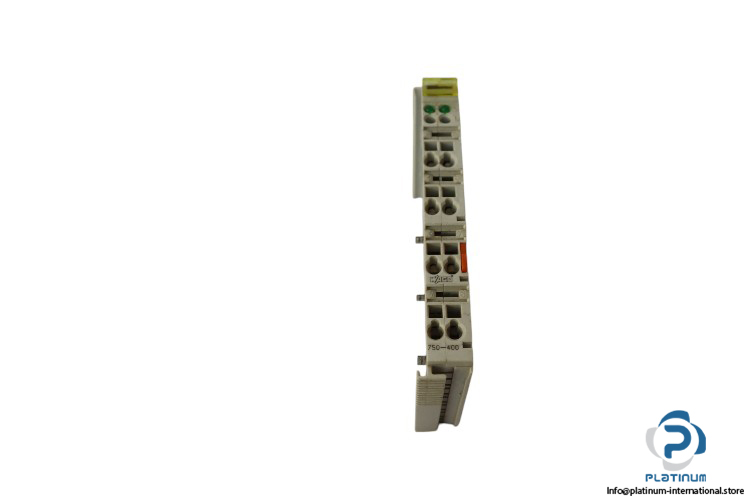

Wago 750-400 Channel Digital Input
Kanal Digitaler Eingang Der Wago 750-400 Kanal Digitaler Eingang bietet 2 digitale Eingänge, 24 VDC Signaleingangsspannung und High-Side-Schaltung. Ideal für industrielle Automatisierungssysteme mit flexibler Sensoranbindung und schneller Datenverarbeitung.
Wago 750-400 Channel Digital Input
The Wago 750-400 Channel Digital Input module offers precise digital signal input functionality for industrial automation applications. This module is designed with two digital inputs, operating at a voltage of 24 VDC. The module supports flexible sensor connections, including 2-wire, 3-wire, and 4-wire configurations, making it suitable for a wide range of industrial sensor types. With high-side switching input characteristics and a digital input filter of 3ms, it ensures fast response and reliable operation in demanding environments.
Manufacturer: Wago
Type: Channel Digital Input
Model: 750-400
This module ensures reliable and accurate data acquisition in control systems, offering flexibility in sensor connectivity and fast data processing for industrial applications.
| Number of Digital Inputs | 2 |
| Total Number of Channels (Module) | 2 |
| Signal Type | Digital |
| Signal Type (Voltage) | 24 VDC |
| Isolation Voltage | 500 V |
| Sensor Connection | 2 x (2-wire, 3-wire, 4-wire) |
| Input Characteristic | High-side switching |
| Input Filter (Digital) | 3ms |
| Input Current per Channel for Signal (1) Typ. | 4.5 mA |
| Voltage Range for Signal (0) | ˆ’3 / +5 VDC |
| Voltage Range for Signal (1) | 15 / 30 VDC |
| Sensor Supply | 24 VDC |
| Input Data Width (Internal) Max. | 2 Bit |
| Supply Voltage (System) | 5 VDC; via data contacts |
| Current Consumption (5 V System Supply) | 3.7 mA |
| Solid Conductor | 0.08 / 2.5 mm² |
| Strip Length | 8 / 9 mm |
| Connection Technology | 8 x CAGE CLAMP® (inputs) |
| Mounting Type | DIN-35 rail |
| Pluggable Connector | Fixed |
| Color | Light Gray |
| Protection Type | IP20 |
| Housing Material | Polycarbonate; Polyamide 6.6 |
| Connectable Conductor Materials | Copper |
| Ambient Temperature (Operation) | 0 / 55 °C |
| Dimensions (H x W x D) | 100 x 12 x 69.8 mm |
