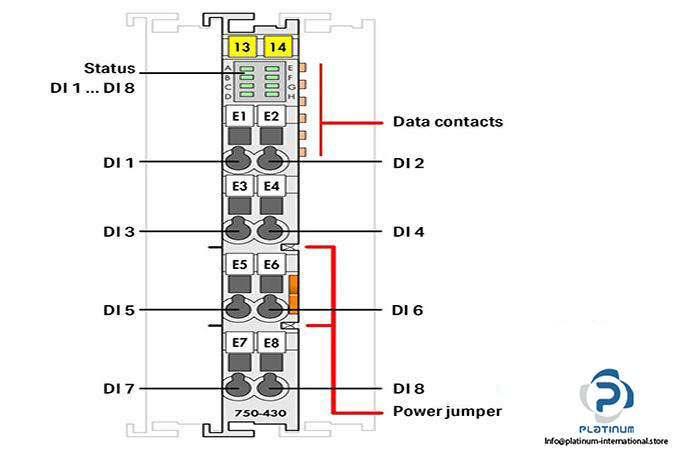

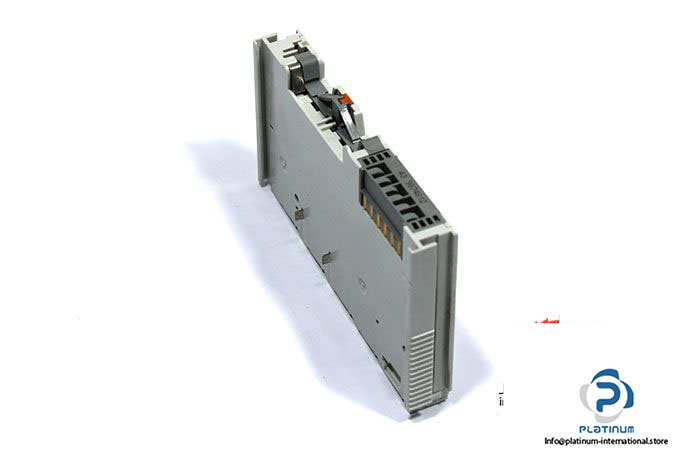

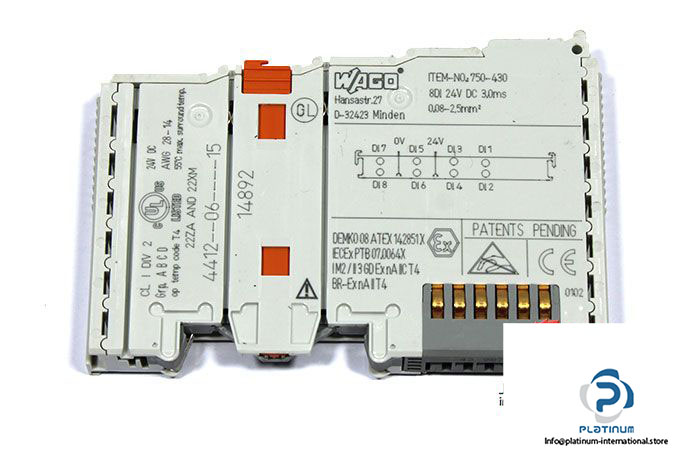

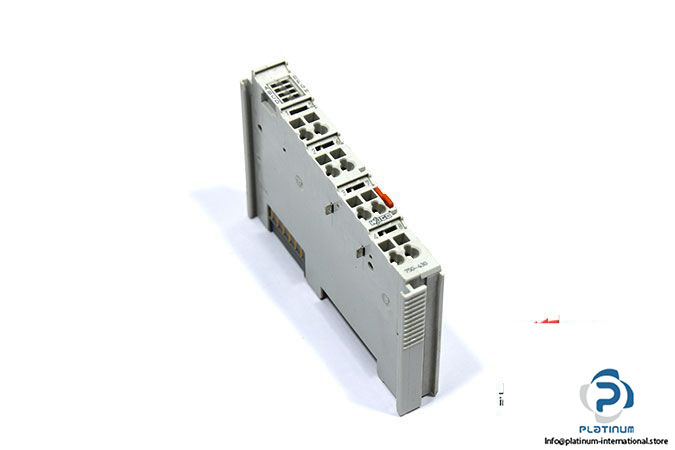

Wago 750-430 8-CHANNEL Digital Input

Manufacturer: WAGO

Type: 8-Channel Digital Input

Model: 750-430

Number of Digital Inputs: 8

System Supply Voltage: 5 V DC; Via Data Contacts

Current Consumption, System Supply (5 V): 17 mA

Type of Signal: Voltage (DC 24 V)

Input Characteristic: High-Side Switching

Input Filter: 3 ms

Isolation Field-System: 500 V AC (1min)

Pluggable Connector: Fixed

Ambient Operation Temperature: 0 … 55 °C

Dimensions: 12 x 67.8 x 100 mm

Housing Material: Polycarbonate; Polyamide 6.6

Weight: 50 g
