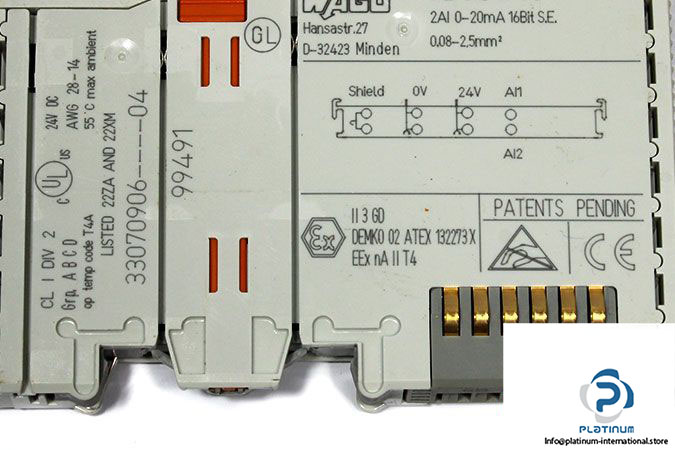

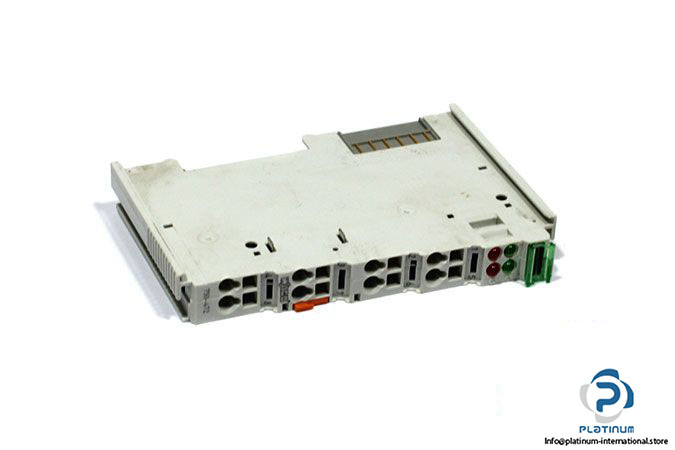

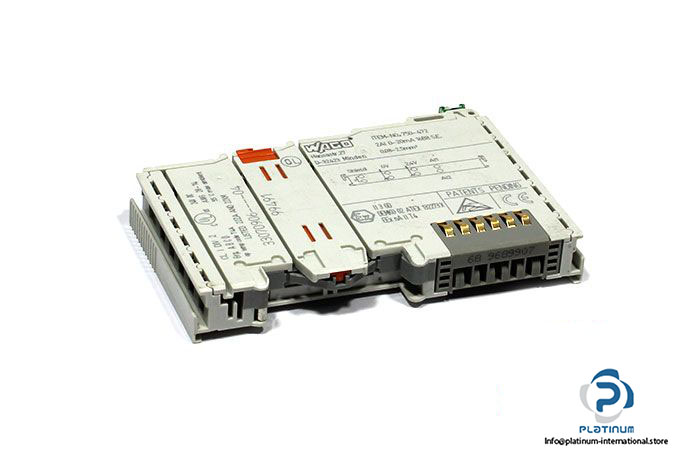

Wago 750-472 2-CHANNEL Analog Input

Manufacturer: Wago

Type: 2-Channel Analog Input

Model: 750-472

Supply Voltage: 24 VDC

Current Consumption (5 V System Supply): 75 mA

Input Voltage: 24 V

Input Filter Frequency (Analog): 50 Hz

Input Resistance: 220 Ω

Signal Type (Current): 0…20 mADC

Number of Analog Inputs: 2

Total Number of Channels: 2

Signal Type: Current

Number of Incoming Power Jumper Contacts: 2

Number of Outgoing Power Jumper Contacts: 2

Sensor Connection: 2 x (2-wire, 3-wire)

Resolution: 15 bits

Conversion Time: 80 ms

Operating Temperature: 0…55 °C

Protection Class: IP20

Dimensions: 100 x 69.8 x 12 mm

Weight: 0.07 kg
