Wago 750-517 2-CHANNEL Relay Output
Gebraucht
Auf Lager6 EinheitenVersandbereit
Relay Output Module
WAGO 750-517 is a 2-channel relay output module with 230 VAC switching voltage, 1A current, 1500 V isolation, LED indicators, and explosion-proof housing for reliable industrial automation.2-Channel750-517AutomationCompactDigitalExplosionHighIndustrialModuleOutputProofRelayReliabilityWago
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

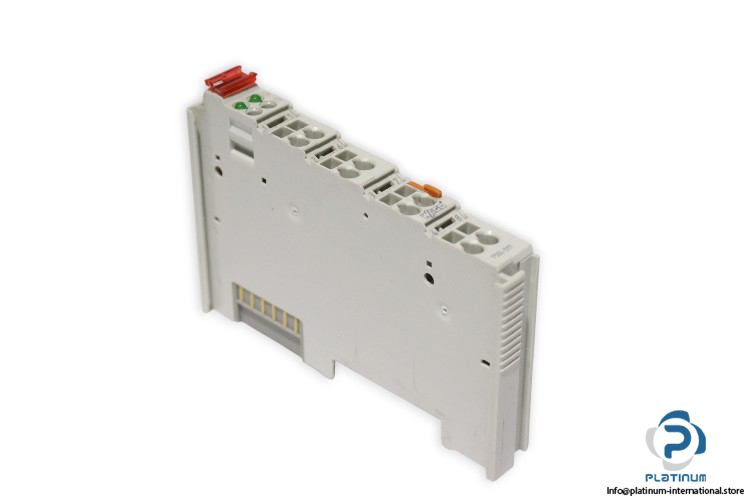

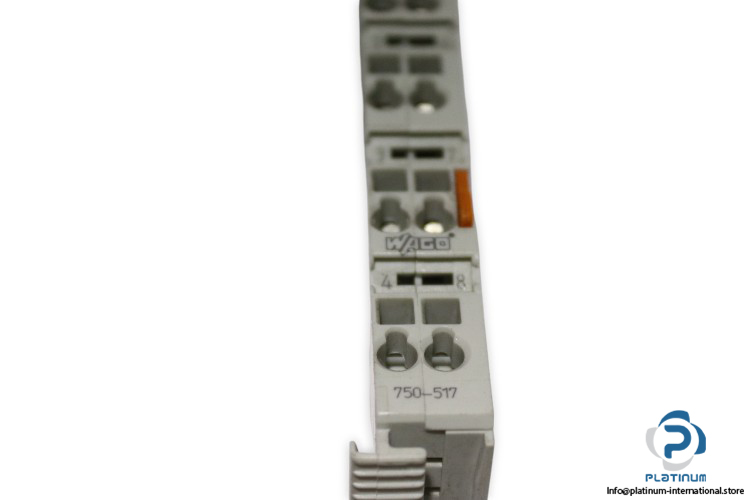

WAGO 750-517 2-Channel Relay Output
The WAGO 750-517 is a compact and reliable 2-channel relay output module designed for industrial automation systems. Built for durability and performance, it ensures secure digital signal control with high switching reliability and explosion-proof safety features.
Manufacturer: WAGO
Type: 2-Channel Relay Output
Model: 750-517

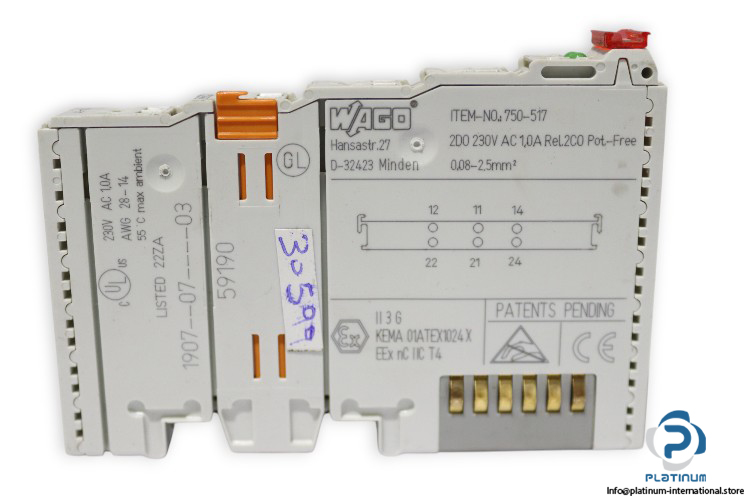

Ref No.: 1907 07 03 / 59190
| Number of Digital Outputs | 2 |
| Total Number of Channels (Module) | 2 |
| Signal Type | Digital |
| Actuator Connection | 2 x (1-wire) |
| Output Circuit Design | 2 Changeover Contacts Relay |
| Output Characteristic | Potential-Free |
| Pull-In Time (Max.) | 8 ms |
| Drop-Out Time (Max.) | 4 ms |
| Switching Frequency (Max.) | 0.1 Hz; Nominal Load |
| Switching Voltage (Max.) | 230 VAC |
| Switching Current (Max.) | 1 A |
| Switching Voltage (Min.) | 12 V |
| Switching Current (Min.) | 100 mA |
| Electrical Switching Operations (Min. at Max. Resistive Load) | 1 x 10¶ |
| Mechanical Switching Operations (Min. at Max. Resistive Load) | 5 x 10¶ |
| Output Data Width (Internal) Max. | 2 Bit |
| Supply Voltage (System) | 5 VDC; via data contacts |
| Current Consumption (5 V System Supply) | 90 mA |
| Isolation | 1500 V (system/field) |
| Indicators | LED (A, E) Green “ Status Relay 1, Relay 2 |
| Dimensions | 12 x 100 x 67 mm |
| Housing Material | Polycarbonate; Polyamide 6.6 |
| Explosion Proof | Yes |
