Wago 750-614 Potential Distribution
Gebraucht
Auf Lager2 EinheitenVersandbereit
19,99$
POTENTIAL DISTRIBUTION MODULE
Wago 750-614 potential distribution module, 230 V AC @ 10 A, IP20 protection, AWG 28“14 support, compact 12 mm width, and DIN-rail mounting.01ATEX102410A230v28“143207750-61496856ACAtexAutomationAWGCompactConnectorDIN-railDistributionDistributorIP20ModulePotentialPowerWagox
Neu
Auf Anfrage verfügbar
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

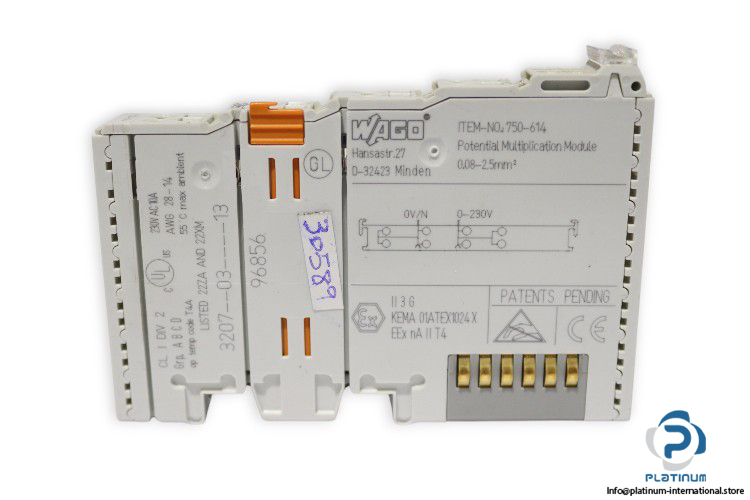

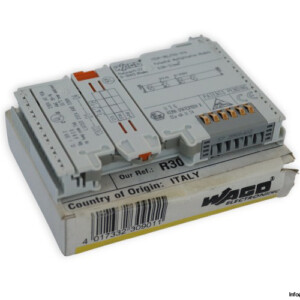

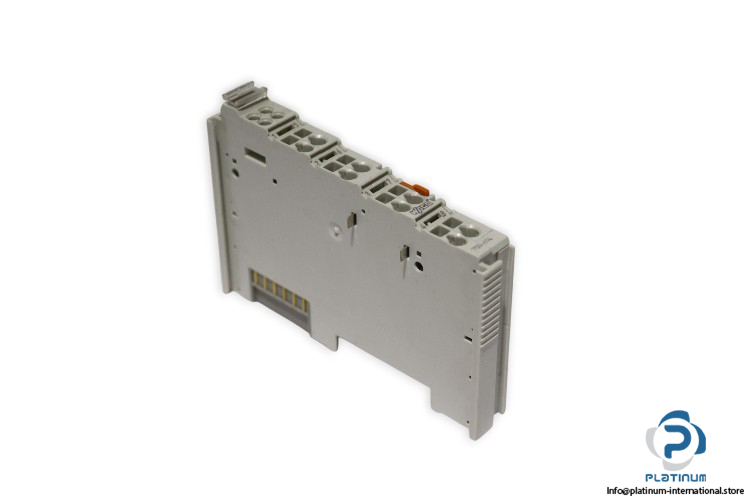

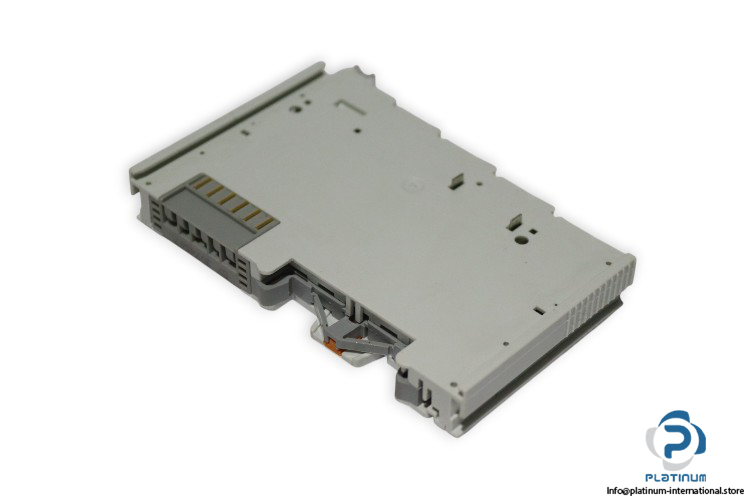

Wago 750-614 Potential Distribution Module
The Wago 750-614 potential distribution module is designed for safe and efficient power distribution in automation systems. Compact in design with IP20 protection, it supports a wide conductor range and provides reliable performance for both AC and DC applications.
Manufacturer: Wago
Type: Potential Distribution
Model: 750-614
Part No.: 3207 -- 03 ---- 13/ 96856
Code: CL | DIV 2/22ZA AND 22XM
Grp: ABCD
Temp. Code: T4A
KEMA: 01ATEX1024 X
| Voltage | 230 V AC @ 10 A |
| Wire | AWG 28 to 14 |
| Temperature | 55 °C max |
| Solid Conductor | 0.08 to 2.5 mm² |
| Signal Type (Voltage) | 0 / 230 V AC/DC |
| Number of Incoming/Outgoing Power Jumper Contacts | 2 |
| Protection Type | IP20 |
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from Upper-Edge of DIN-Rail | 62.6 mm / 2.465 inches |
