Hydraulics & Pneumatics Pneumatic Actuators

Waircom 35/100 SVB Screwed-Head Cylinder

Name: WAIRCOM 35/100 SVB SCREWED-HEAD CYLINDER
SKU: 1083627
Availability: LimitedAvailability

waircom-35-100-svb-screwed-head-cylinder(used)

waircom-35-100-svb-screwed-head-cylinder(used)-1

Gebraucht

Auf Lager1 EinheitVersandbereit

Screwed-Head Cylinder

The WAIRCOM 35/100 SVB single-acting cylinder features a 35 mm bore, 100 mm stroke, 10 bar pressure rating, and aluminium alloy housing for reliable pneumatic operation.

Hersteller

WAIRCOM

SKU

1083627

Kategorie

Pneumatic Actuators

Zustand

Gebraucht

100 35 35/100 Acting Actuator Alloy Aluminium bore Cylinder G1/8 Head Industrial mm Pneumatic Port Screwed Series Single Stroke SVB VB Waircom

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

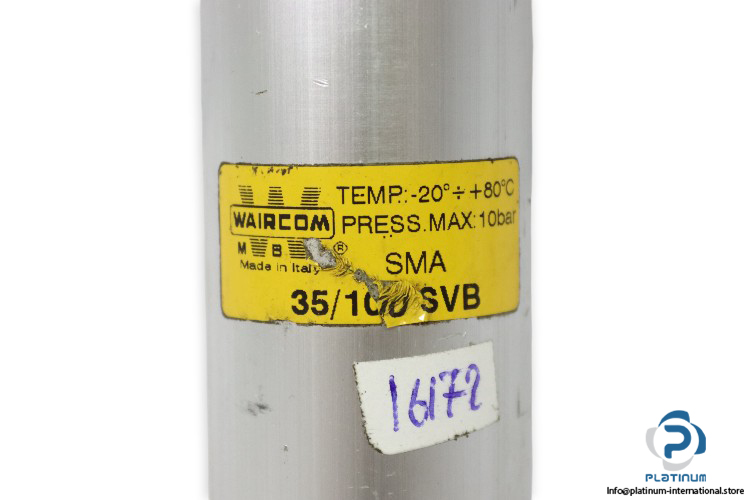

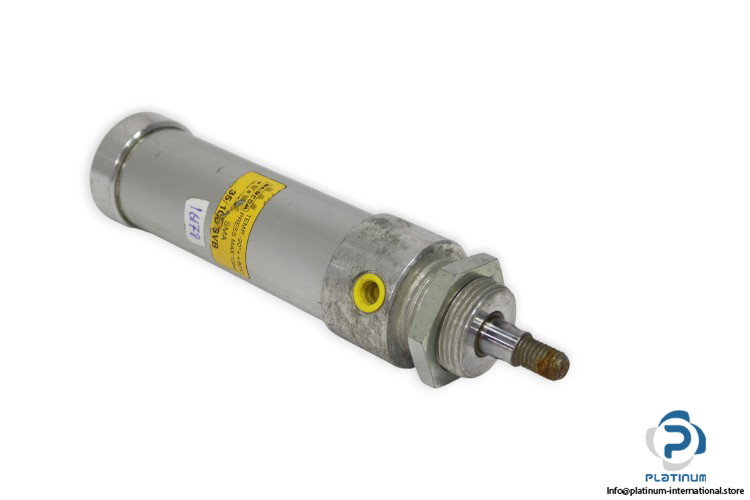

WAIRCOM 35/100 SVB Screwed-Head Cylinder

The WAIRCOM 35/100 SVB Screwed-Head Cylinder is a single-acting pneumatic actuator from the VB series, designed for durability, reliability, and high performance in industrial automation applications.

Manufacturer: WAIRCOM

Type: Screwed-Head Cylinder

Model: 35/100 SVB

Ref Code: SMA

Series: VB

Cylinder Diameter	35 mm
Stroke	100 mm
Max Pressure	10 bar
Temperature Range	-20 / 80 °C
Mode of Operation	Single Acting
Port Size	G1/8
Housing Material	Aluminium Alloy
