Watson Smith 100X I/P Converter
Gebraucht
Auf Lager1 EinheitVersandbereit
244,44$
I/P CONVERTER
Industrial-grade I/P converter with 4“20¯mA input and 3“15¯psi output. IP65 protection, ATEX/FM certified, and built for extreme conditions and high precision pneumatic control.100X4-20AtexCertifiedControlConverterdie-castElectronicsG1/8I/PIndustrialIP65mAModelPneumaticPortPressureProcessSignalSmithTransducerWatsonZinc
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

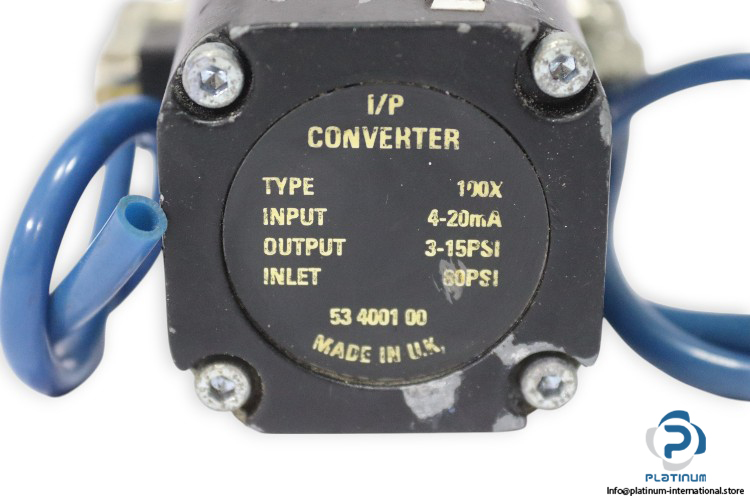

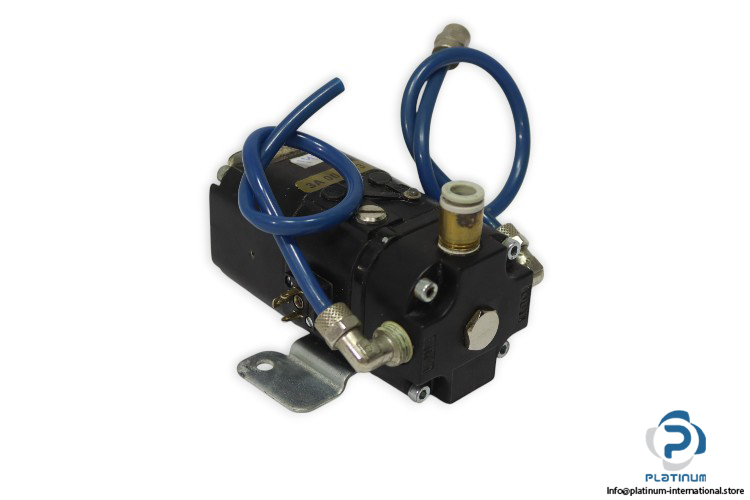

WATSON SMITH 100X I/P CONVERTER
High-performance I/P converter designed for industrial automation and process control. The 100X model from Watson Smith ensures accurate signal conversion from current to pneumatic pressure, with robust environmental protection and certified safety standards.
Manufacturer: Watson Smith
Type: I/P Converter
Model: 100X
Part No.: 53 4001 00

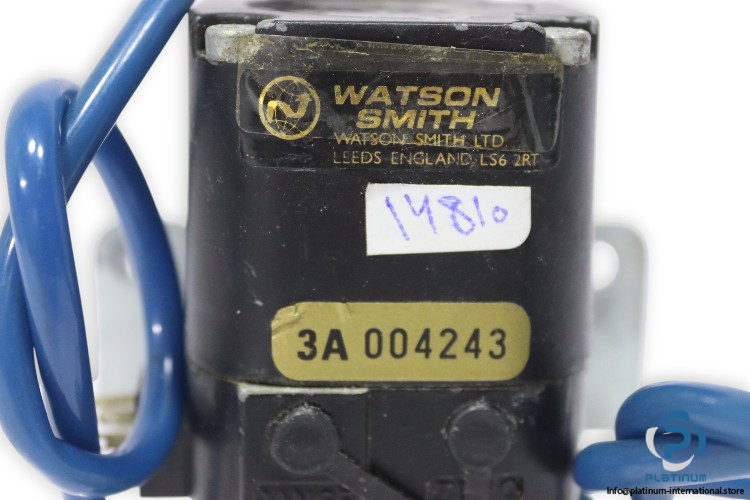

Ref. No.: 3A 004243
| Input Signal | 4 to 20¯mA |
| Output Pressure Range | 3 to 15¯psi |
| Inlet Pressure Range | 80 psi |
| Air Supply Requirement | Dry, oil-free, filtered |
| Flow Rate | Up to 300¯Nl/min (typical at low range: 0.85¯L/min) |
| Temperature Range | -40 to +85¯°C |
| Ingress Protection | IP65 |
| Port Size | G1/8 |
| Material | Zinc die-cast with epoxy paint, nylon cover, NBR diaphragms |
| Certifications | ATEX / FM |
