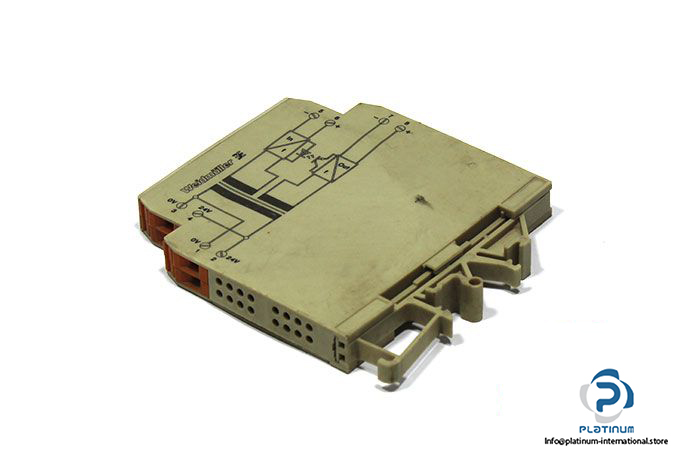

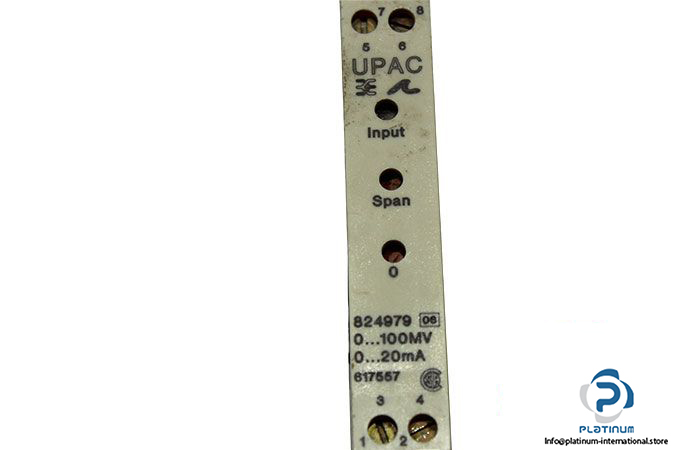

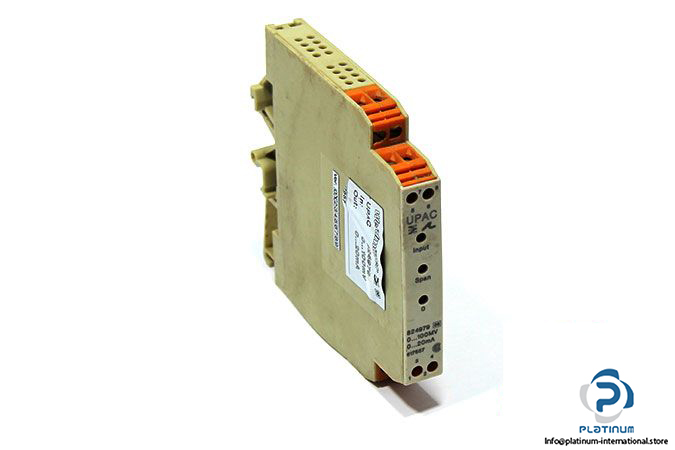

Weidmuller Upac 824979 Analogue Transmitter

Manufacturer: Weidmuller

Type: Analogue Transmitter

Model: UPAC

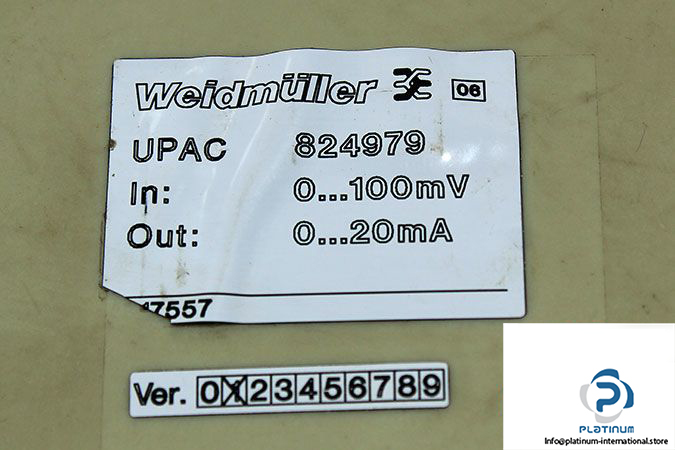

Part No: 824979

MRN: 617557

Input

Voltage Input: 0 … 20 mV to 0 … 100 VDC

Current Input: 0…1 mA to 0…100 mA

Maximum Overvoltage: 200 VDC

Input Impedance: ≥ 100 kΩ for voltage inputs > 2 V

Maximum Overvoltage: 60 Vdc

Maximum Overcurrent:170 mA

Input Impedance: typ. 20 Ω

Output

Voltage Output

• Unipolar: 0…5 V, 0…10 V
• Bipolar: -10…10 V, -5…5 V

Current Output: 0…20 mA, 4…20 mA max. load < 600 Ω

Supply Voltage: 9…30 VDC

Operating Temperature: 0…50 °C

Weight: 0.09 kg
